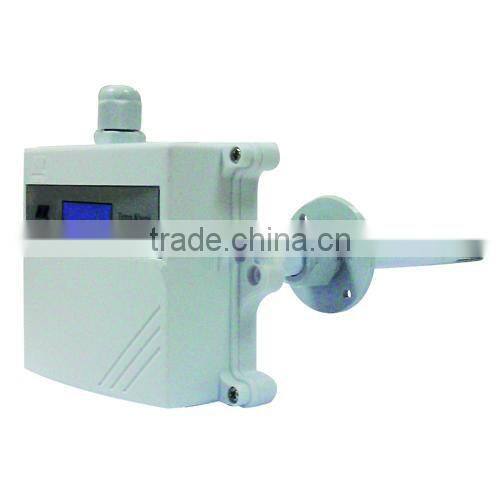

Introduction:
This is industrial product, make a special design for facing the strong electromagnetic interference environment, transient pulse, electrostatic discharge, and the pressure resisitance. The sensor can have precise measurement of temperature and humidity from - 40 ℃ to 120 ℃ and 0 to 100% RH , using temperature compensation circuit, working stable and reliable.
Used for high precision and high temperature measurement occasions, specially for high temperature, dust, complex electromagnetic industrial environment.
Parameters:
| Power supply | DC 24V(22V~26V) |
| Max current | Current output 50mA(DC 24V) |
| Voltage output 20mA(DC 24V) | |
| Net output 20mA(DC 24V) | |
| Transmitting circuit working temperature | -20℃~60℃ |
| Probe working temperature | -40℃~120℃ |
| Range | Humidity:0%RH~100%RH |
| Temperature-40℃~120℃ | |
| Response time | Humidity ≤4s(1m/sair speed) |
| Temperature ≤15s(1m/sair speed) | |
| Long-term stability | Humidity≤ 1%RH/y |
| Temperature≤ 0.1℃/y | |
| Output signal | Current output:4~20mA |
| Voltage output:0~5V/0~10V | |
| Net output:RS485/RS232 | |
| Load capacity | Voltage output:output impedance≤ 250Ω |
| Current output:≤ 500Ω | |
| Installation | Wall mounted fixed wall |
| pipe type flange | |
| split type flange or thread installation | |
| Shell | ABS white 86mmx117mmx41mm(without probe) |
Certified by: CE and ROHS.
Delivery time: 10-12 days after payment.
Payment by: L/C, T/T, Western Union, PAYPAL
We are professional manufacturer in the meters, we would like to offer you service on this field. we could make meters according your requests and your accuracy.
