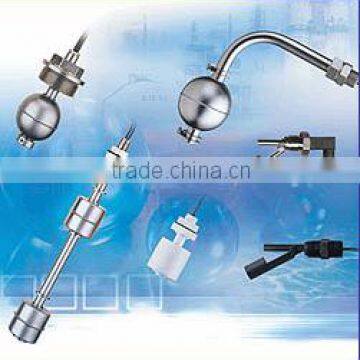

FC/FD Magnetic Float Level Switch

Principle

The single unit or multiple reed switch units arehoused tightly in stainless steel or engineeringplastic stem, and the permanent magnet issealed into the middle of the specified float ball(s). You can mount the float ball to penetrating through the stem, then the liquid buoyancy will deliver the float ball up and down at the specified position by graduating rings.
When the float internal magnet approaches the reed switch, it will actuate the reed switch contact point to create an open or close circuit. We can apply such on-off output signals to reach liquid level controlling and monitoring purpose.
The figures below show the float orientations on N.O. (Normal Open) and N.C. (Normal Close).



Features

Certified by:  CE and ROHS.

Delivery time: 10-12 days after payment.

Payment by: L/C, T/T, Western Union, PAYPAL

We are professional manufacturer in the meters, we would like to offer you service on this field. we could make meters according your requests and your accuracy.
