Home > Consumer Electronics > LED Display > Indoor LED Display > PH8 Indoor LED Display SMD 3 in 1

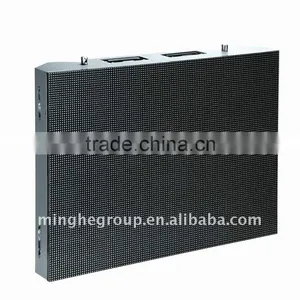

PH8 Indoor LED Display SMD 3 in 1

US$ 800 - 1,500 MOQ: 10 Square Meters

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

MHG

Model Number:

PH8

Contact Supplier Request Quote Chat Now

Hunan Minghe Opto Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Changsha or any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name MHG

Model Number PH8

Usage Indoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 8mm

Screen Dimension Customized Size

physicalpitch	8mm	operationg power source	AC90-260V 50-60HZ
physical density	15625pixels/m2	frame frequency	60-85HZ
led shape & size	SMD 3 in 1	refresh rate	240-1000HZ
led arrangement	1G1R1B	brightness adjustment	0-100% 8 levels automatic
module size	256 X 128 mm	gama conrrection	(-5.0~5.0)
module resolution	32 X 16	correction scale level	16 bits
drive mode	Dynamic 1/8 duty constant current	color temperature	5000-9300k
brightness	≥1400cd/m2	brightness correction	pixel, module, cabinet correction
transparency ratio	30%	input source support	composite, S-Video, componet, VGA, DVI, HDMI, SDI, HD_SDI
contrast	≥2000:1	control distance	UTP CAT5E:100m, Multi-mode fiber: 500m, Single mode fiber: 10km
view angle, 50% brightness	140°/ 140°	operating temperature	(-40°~ +65°)
minimum view distance	8m	operating humidity	10-90%
gray scale	10bits/ 1024levels	operating life span	100,000hours
color capacity	1.07billion	MTBF	5000hours
maximum power consumption	780w/ m2	protection rate	IP31
ave. power consumption	260w/ m2	out of control rate	0.01%

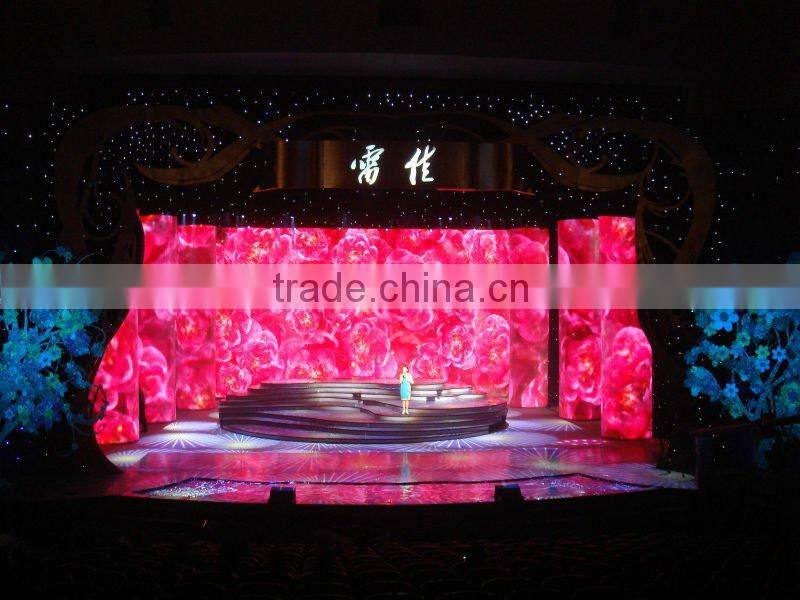

Minghe Successful case:

CE & Rohs certified:

About us:

Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 produce lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.

And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.

Based on innovative technology & HR oriented service tenet, we will keep on innovating to meet the ever-changing market, and we will keep on cooperating with our customers with faith and dedication to build up a brilliant and splendid stage life together.
