Help CenterOutdoor Curtain Wall Led Display
US$ 500 - 1,500
MOQ: 1 Cubic Meter
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
MHG
Model Number:
PH36
Payment & Shipping
Payment Methods:
Port of Shipment:
Changsha or any port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Indoor Curtain Wall Led DisplayUS$ 500 - 1,500MOQ: 1 Cubic Meter -
Curtain Wall Indoor Led DisplayUS$ 500 - 1,500MOQ: 1 Cubic Meter
-
Indoor Curtain Wall Led ScreenUS$ 1,000 - 2,000MOQ: 1 Cubic Inch
-
Outdoor HD Full Color Small Pixel SMD P10 LED Video PanelUS$ 365 - 430MOQ: 1 Square Meter
-
Clear Curtain Stage Led Video Display ScreenUS$ 365 - 430MOQ: 1 Square Meter
Place of Origin
Hunan, China
Brand Name
MHG
Model Number
PH36
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
Other, 36mm
Screen Dimension
Customized Size
Established in 2001, the member of China Entertainment Association,is a professional manufacturer of LED display,stage lighting. All of our products passed the ISO9001:2000 ,3C,CE,FCC,ROHS,LVD ...certifications .
MHG PH36 Outdoor Curtain wall
1.Measured by the China ETA Quality Inspection:It is able to work between -40 °C to +65 °C (IP65)
2.This modle Widely used in advertising, sports,finances, post offices, telecom, commerce, hospitals, sports stadiums,airports and railwaysand other public places until now.
Specifications:
| LED DISPLAY TYPE | PH36 curtain wall (OUTDOOR) | ||
| Pixel pitch | 36mm | Frame frequency | 60-85HZ |
| Physical density | 772 pixels/m2 | Refresh rate | 240-1000HZ |
| LED configuration | 5mm Oval lamp | Brightnessd adjustment | 0-100% 8 levels automatic |
| Physical density | 1R1G1B | Gamma correction | -5.0-5.0 |
| cabinet size | 600*600*65mm, 5kgs | Correction scale level | 16bits |
| Module resolution | 16*16 | Color temperature | 5000-9300k |
| Drive mode | Dynamic 1/2 Duty constant current |
Brightness correction | Pixel,module, cabinet correction |
| Brightness | ≥1500cd/m2 | Contrast | ≥2000:1 |
| Control distance | UTP CAT5E:100m,muti-mode fiber:500m single-mode fiber:10km |
Input source support | composite,S-video,component, VGA,DVI,HDMI,SDI,HD SDI |
| View angle | 110./50. | Operating temperature | -40-65.C |
| Minimum view distance | 36m | Operating humidity | 10-90% RH |
| Grey scale | 10bits/1024 levels | Operating life span | 100,000 Hours |
| Color capacity | 1.07 billion | MTBF | 5000 hours |
| Maximum power consumption | 230w/M2 | Protection ratings | IP65(front) IP54(Back side) |
| Ave power consumption | 75w/M2 | Out of control rate | 0.01% |
| Operationg power source | AC90-260V 50-60 HZ | ||

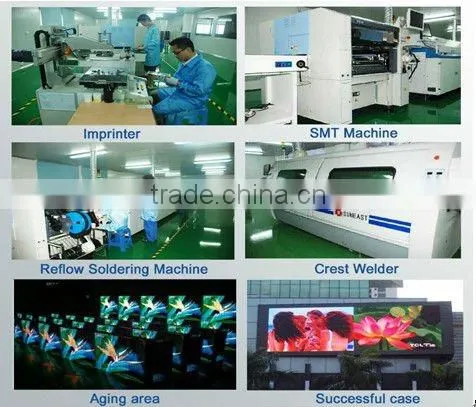

MHG LED DISPLAY SMT WORKSHOP:
MHG‘s HONOR CERTIFICATIONS
MHG SUCCESSFUL CASES:
