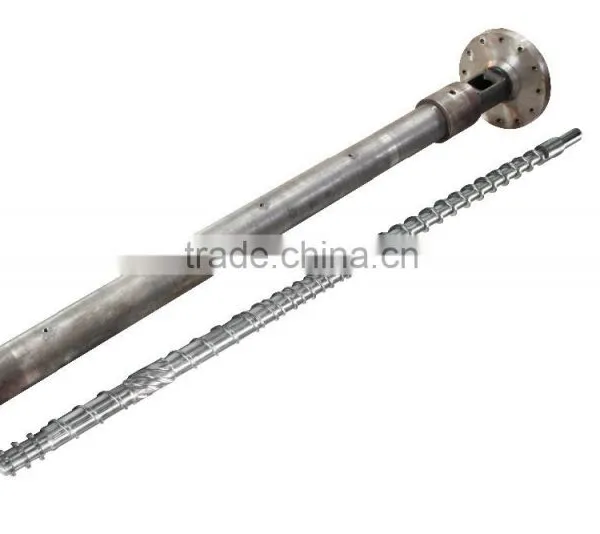

Screw and Barrel for Blowing Machinery

Name: Screw and Barrel for Blowing Machinery
Brand: YUZE
SKU: 106790345
Availability: InStock

US$ 1 - 2,000 MOQ: 1 Set

Key Specifications

Condition:

New, New

Application:

Film

Plastic Processed:

Zhoushan Yuze Rubber & Plastics Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Application Film

Plastic Processed PP

Screw Design Single-screw

Automatic Grade Automatic

Place of Origin Zhejiang, China

Brand Name YUZE

Model Number Single Extruder Screw

Voltage NONE

Power(W) NONE

Dimension(L*W*H) 300mm*5000mm

Weight 500kg

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

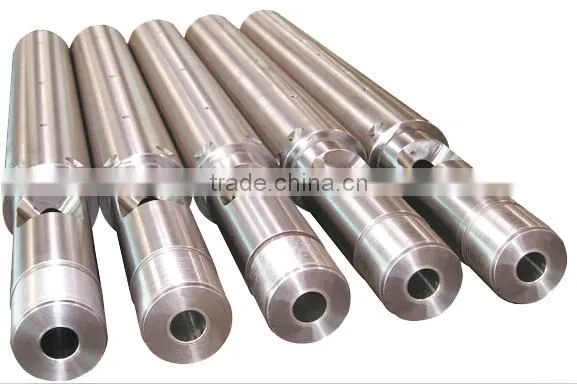

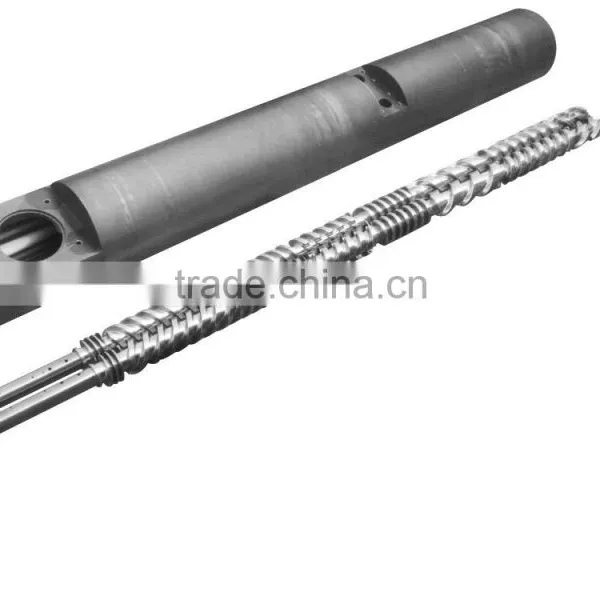

We supply various types of screw and barrel according to your requirements.

Diameter	10mm-400mm
Length	10,000mm at max.
L/D	1:10~70
Product series	PS/PE/PP/ABS Sheet Extrusion Screw and Barrel; PE Aluminum Plate; PVC/PE Film Blowing Screw and Barrel; Blow Molding Screw and Barrel; HDPE High efficiency Screw and Barrel;PET Straps Screw and Barrel; ;PPR Pipe Screw and Barrel;EVA Extrusion Screw and Barrel; Granulation Screw and Barrel,Vented single Screw and Barrel;XPS/EPE Foamed Screw and Barrel
Material	DCS3,DIN.8550,SACM-645,SCM-440,SUS420J2,SKD-61,38CrMoAl, etc.

Bimetallic Alloy Materials	I Fe-based alloy II Ni-based alloy III Cu-based alloy IV Co-based alloy V Ti-based alloy VI Tin-based alloy VII Tungsten carbide/Wolfram carbide
Surface Treatment	I Alloy Depth:0.8~2.0mm II Alloy Hardness:HRC56°~65° III Hardness after hardening and tempering; HB260°~320° IV Heat Treatment High Frequency Treatment Nitriding treatment(120 Hours) Depth of Nitrided Layer: 0.5-0.8 mm Hardness of Nitrided Layer: 900-1020Hv (HRC56°-65°) Hard Chrome Plating treatment: Thickness of Hard Chrome Plating Layer: 0.05-0.10mm Hardness of Hard Chrome Plating Layer: ≥950HV Nickel alloy plating.treatment: Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy) Bimetallic Screw: Plasma Alloy Coating Spraying Depth of Bimetallic Layer: >2mm Hardness of Bimetallic Layer: HRC55°-72°
Material Application	I General Plastics II ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc III PA + GF(Glass Fiber) IV Flame-resistant Reinforced Plastics V Modified Engineering Plastics VI All kinds of Mixed Recycled Material(in Scrap or Granule),etc

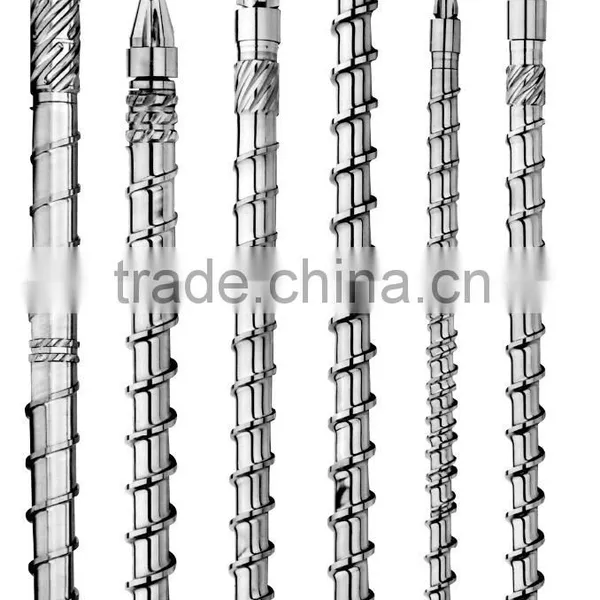

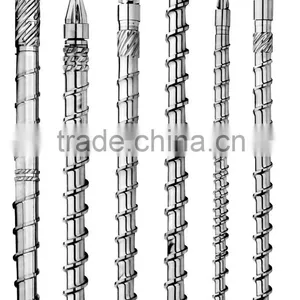

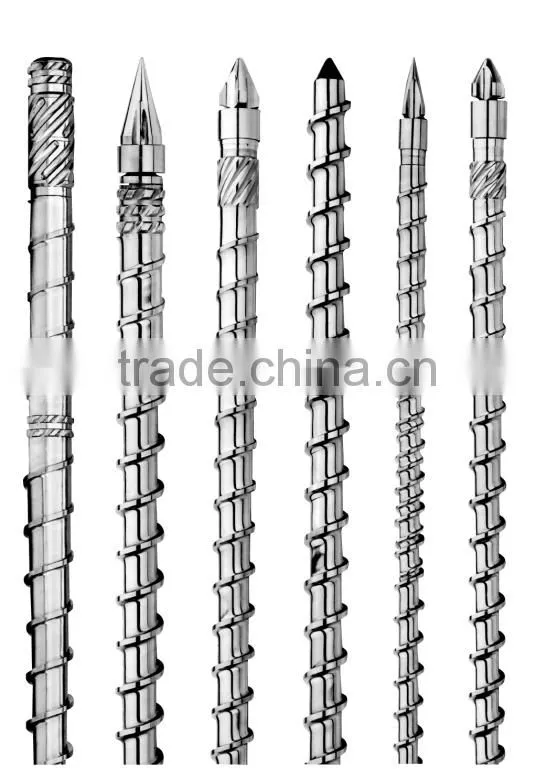

Screw Type	Gradual type, mutant type,wave type,barrel type, double screen type,shunt type,separation type,exhaust type, pin type, double-head type, multi-head type, single screw barrel , etc
