Plastic Screw and Barrel for Blowing Molding Extruder Machine

Name: Plastic Screw and Barrel for Blowing Molding Extruder Machine
Brand: YUZE
SKU: 106790367
Availability: InStock

US$ 500 - 2,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

YUZE

Model Number:

screw and barrel of blown film machine

Zhoushan Yuze Rubber & Plastics Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name YUZE

Model Number screw and barrel of blown film machine

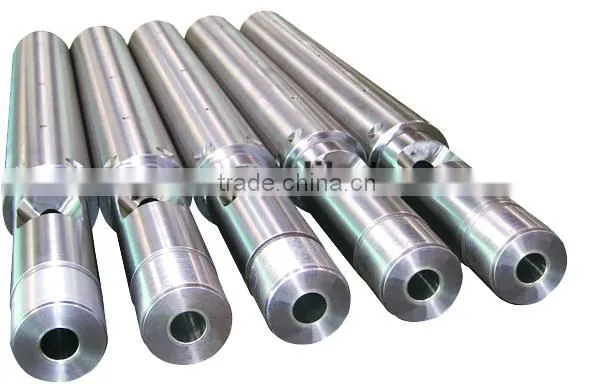

Twin screw and barrel


Diameter	15mm-350mm	Min.Order	1 set
Materials	38CrMoAIA	Discount	Available
	42CrMo(JIS SCM440)
	9Cr18MoV
	CW6Mo5Cr4V2
	SKD11,61
	GH113,and etc.
Application	PP,PVC,PE,ABS,PETPC,PMMA...	Payment Term	T/T, L/C, WESTERN UNION,OTHERS
Technical Process	1.Rough Machining	Technological Parameter	Roughness	Ra 0.4um
	2.Frenquency Quenching and Tempering		Hardness of Quenching and Tempering	HB 240-280
	3.Finish Machining		Depth of Nitride Layer	0.5~0.8mm
	4.Gas Nitriding		Hardness of Nitride	HV 980-1080
	5.Spraying and welding with alloy power		Alignment of Screw	0.015mm
	6.Screw polishing		Depth of Alloy Layer	1.5~3.5mm
Packing	Standard exporting packing	Port Departure	Ningbo/Shanghai Port/etc.
Compared to other supplier, YUZE advantages	1.Advanced Nitriding Technology

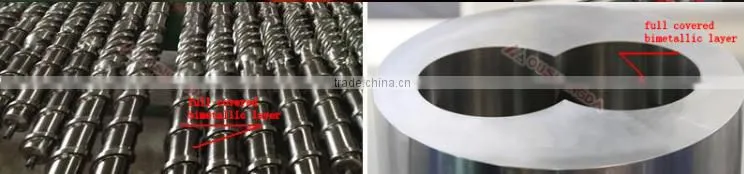

	2.Anti-corrosion and Wear-resisting Duplex Metal Spraying Technoloy
	3. we uses special alloy powders being sprayed and welded on the screw's ridge,and uses different alloy and welding methods for the screw of different functions
	4.Fast and on time delivery
	5.Longer lifetime for the screw barrel.
Guarantee	Single nitrided screw barrel : more than 2.5 years
Guarantee	Bimetallic single extruder screw: Much longer lifespan than normal one.
