Specifications
Extend a 1080p HDMI video & audio signal to 90 feetLatest HDMI 1.3b rated with 2D & 3D
No need power adapter
The HDMI Repeater is mainly used for supporting the HDMI Signal long transmitting distance by amplifying the HDMI differential signal.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
1.It can buffer and amplifier the signal.
2.26 AWG HDMI Cable up to 30M
3.Video Input Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
4.Video Output Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
5. No Loss of Signal Quality
6.Easy Operation

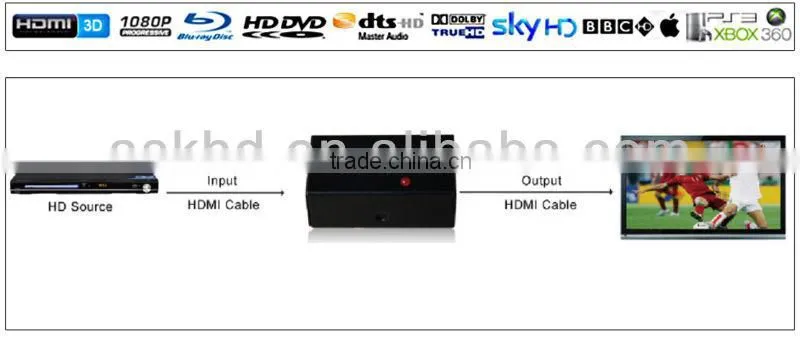

Operating and Connecting:
1. To use one Standard HDMI Cable to connect the HD Source with the repeater input interface.
2.To connect the output interface of repeater with the Display End by the Standard HDMI Cable.
SPECIFICATIONS: HDR0101
HDMI Connector……………………………Type A 19Pins Female
HDMI Input………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
HDMI Output……………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max Transmission Rate………………………………………………………… 165MHz
Max Transmission Bandwidth…………………………………4.95Gbps
Input Video Signal …………………………………………1.2 volts p-p
Output DDC Signal ……………………………………………………………… 5Volts p-p (TTL)
Operating Temperature range……………………………… (-15 to +55°C)
Operating Humidity range……………………5 to 90%RH (No Condensation)
Size(L*W*H) …………………………………………………45X26X16.5 mm
Weight……………………………………………………………………30g
