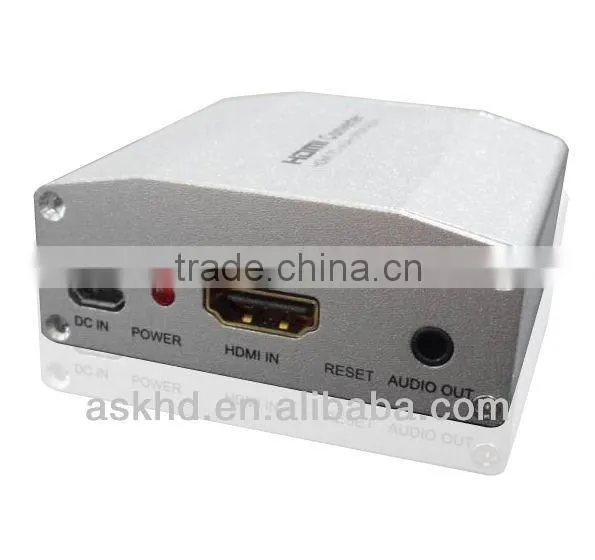

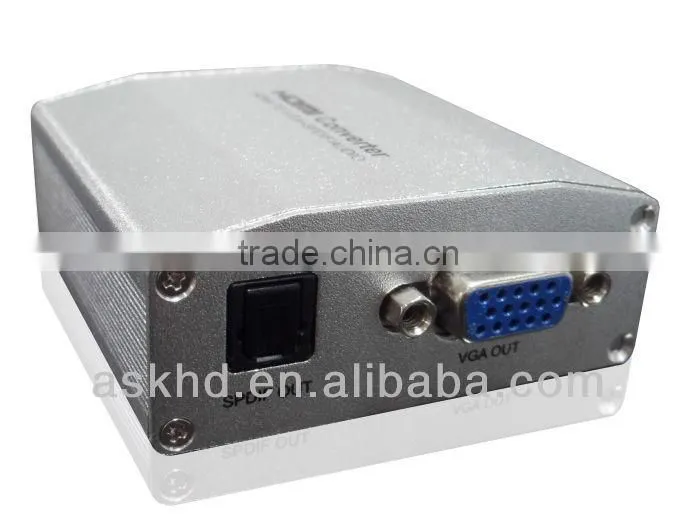

Help CenterDigital HDMI to Analog VGA and Spdif +Stereo Audio Converter
Related Products
-
Component YUV to HDMI Format ConverterNegotiableMOQ: 50 Pieces -
Converter HDMI to Digital Optical AudioNegotiableMOQ: 50 Pieces
-
1x16 HDMI Distribution Amplifier With 3D SupportNegotiableMOQ: 50 Sets
-
Universal HDMI to Composite / AV Video Converter, Support PAL / NTSC Standard TVsNegotiableMOQ: 50 Sets
-
New HDMI to HDMI + Audio (SPDIF + RCA L / R) Audio ExtractorNegotiableMOQ: 50 Pieces
Specifications
One single HDMI signal input convert to one VGA + SPDIF or one VGA+ analog audio signal output
FEATURES
l One single HDMI signal input convert to one VGA + SPDIF or one VGA+ analog audio signal output.
l Support HDMI input: 480P/720p/1080p @60Hz
l VGA output resolution format with the input format automatically changes: 640×480@60Hz,
800×600@60Hz,1024×768@60Hz,1280×720@60Hz,1280×768@60Hz,1280×800@60Hz,
1280×1024@60Hz,1360×768@60Hz,1600×1200@60Hz,1920×1080@60Hz
The corresponding HDMI resolution:
HDMI INPUT |
VGA OUTPUT |
480P |
640×480 @60Hz |
720P |
1280×720 @60Hz |
1080P |
1920×1080 @60Hz |
l Support DTS/AC3/LPCM/PCM digital audio output, Support 5.1ch
l Built-in digital audio decoder, the LPCM/PCM digital audio decoding into analog stereo output
l low-power digital single chip solution, less heat and long time stability
l Easy to Install and Automatically Check the input signal
l No need extra power supply
SPECIFICATIONS: ASK-C006
HDMI STANDARD…………………………………………………………………………………HDMI 1.4b
HDCP STANDARD…………………………………………………………………………………HDCP 1.4
HDMI resolution………………………………………………………………… 1080P/720p/480P @60Hz
Support up to VGA……………………………………………………………………… 1920×1080@60Hz
Support audio format…………………………………………………………DTS/Dolby-AC3/PCM/LPCM
Max bandwidth……………………………………………………………………………………… 165MHz
Input/Output TMDS signal…………………………………………………………………0.5-1.5Vp-p(TTL)
Input/Output DDC signal………………………………………………………………………… 5Vp-p(TTL)
Input cable distance………………………………………………… ≤15m AWG26 HDMI standard cable
Output cable distance……………………………………………………………≤15m VGA standard cable
Max working current……………………………………………………………………………………360mA
DC IN Specifications……………………………………………………………………………… 5V/500mA
Operating Temperature range………………………………………………………………… -15 to +55°C
Operating Humidity range……………………………………………… 5 to 90%RH(No Condensation)
Dimension (L x W x H)……………………………………………………………………64X64X25.5 (mm)
Weight…………………………………………………………………………………………………… 100g
PACKAGE CONTENTS:
1,Main unit 1pcs
2,Audio adapter 1pcs
3,Micro USB cable 1pcs
4,User manual 1pcs
