Specifications

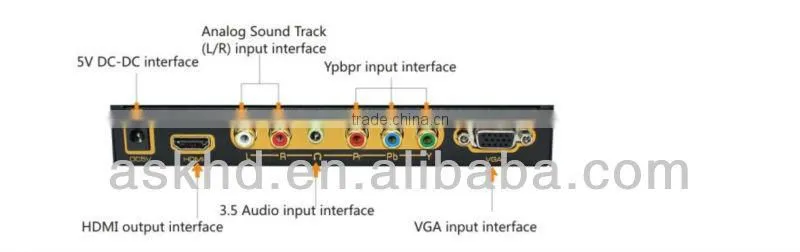

One YpbPr input, One VGA input, R/L analog audio input,One 3.5mm Stereo Mini-Jack audio input*One HDMI output.
VGA+Audio or Component video (YPbPr)+Audio to HDMI 720P / 1080P HD signal

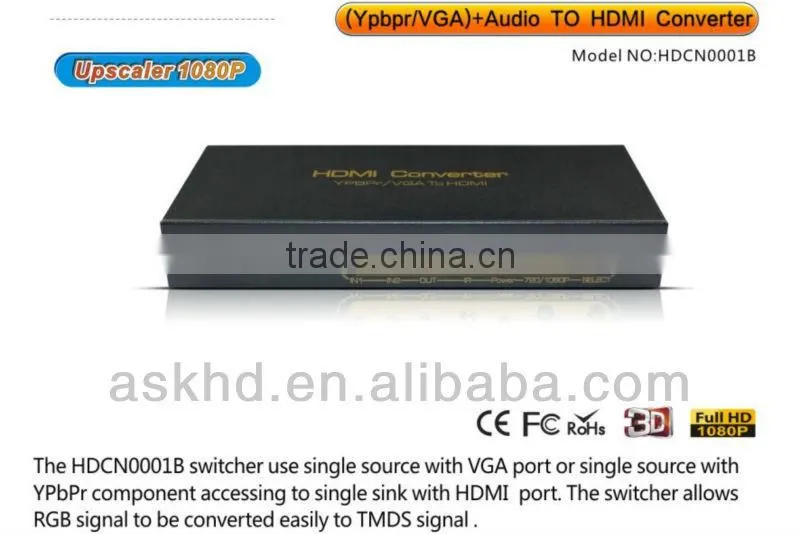

The HDCN0001B switcher use single source with VGA port or single source with YPbPr component accessing to single sink with HDMI port.
The switcher allows RGB signal to be converted easily to TMDS signal .

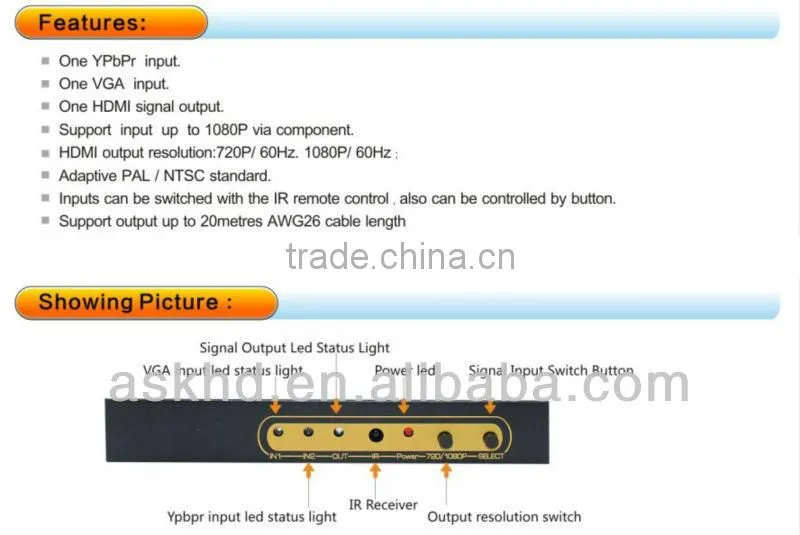

FEATURES
l One YPbPr input.
l One VGA input.
l R/L analog audio input.(can’t be used with stereo Mini-Jack audio at the same time).
l 3.5mm Stereo Mini-Jack audio input.(can’t be used with R/L audio input at the same time).
l One HDMI signal output.
l Support input up to 1080P via component.
l Support VGA input: 800x600,1024x768,1152*864,1280*720,1280x768,1280x800,1280x960,1280x1024,1360x768,1366x768,1440x900,1680x1050,1920x1080
l HDMI output resolution:720P/ 60Hz. 1080P/ 60Hz;
l Adaptive PAL / NTSC standard.
l LED indication : when source or sink is working, LED relative to is light.
l Inputs can be switched with the IR remote control,also can be controlled by button.
l Support output up to 20metres AWG26 cable length
l Installs in minutes
l Need DC5V/2A power supply

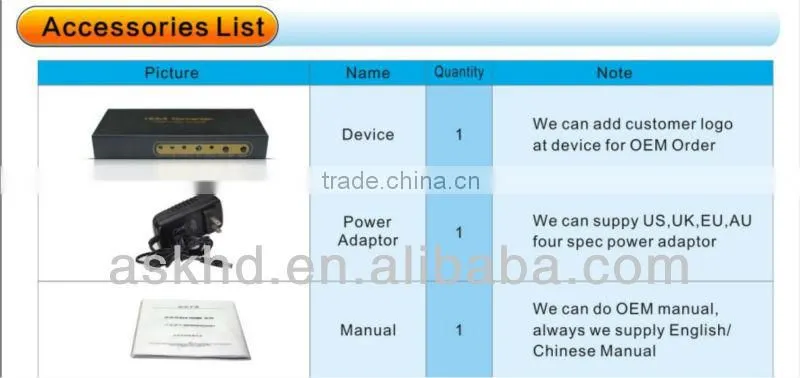

The accessories with the machines lists as picture:
1,5V Power Adaptor
2,Remote
3,one pc of Manual
