HDMI Dts Dac Audio Decoder

HDMI Dts Dac Audio Decoder photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ASK
Model Number:
HDCN0016M1
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ASK
Model Number HDCN0016M1
Place of Origin Guangdong, China

Specifications

It can decoder HDMI AC-3, DTS, LPCM to 5.1 analog audio
1 x HDMI input
1xHDMI output, 6 channel RCA analog audio output



HDMI AC3 DTS to 5.1 Analog audio Decoder with HDMI Audio extractor





*It can decoder HDMI AC-3, DTS, LPCM to 5.1 analog audio to the receiver which can do 5.1 surround sound with analog inputs



*It also can extrator Optical digital audio and 3.5mm stereo audio from HDMI .The SPDIF output supports 5.1CH



*1 x HDMI input



*1 xHDMI output, 1x SPDIF optical digital audio output, 6 channel RCA analog audio output, and 1x headphone jack output



*Audio support : Dolby digital (AC3), DTS, LPCM, signal format automatic identification .









The HDMI TO HDMI Audio Decoder allows you to extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it to digital optical or analog 5.1 sound track output. This product supports Dolby digital AC-3, DTS, LPCM and other digital audio format decoding. It is one perfect audio decoder for your DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC etc.





FEATURES:

*1X HDMI input and 1X HDMI output,can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, 6 channel RCA analog audio output, and 1x headphone jack output.

*Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)

*Support CEC and HDCP

*Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).

*Uses 24 bit/96KHz audio DSP and 24bit /192KHz DAC

*Support digital audio formats: Dolby digital (AC3), DTS, LPCM, automatic identification signal format

*Headphone amplifier output, can drive the general 3.5mm earphone

*High tone quality, low noise

*DC5V/1A power adapter

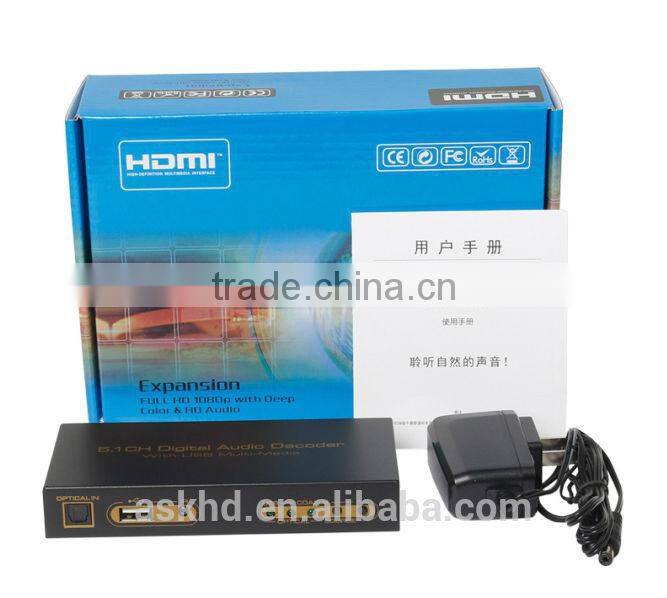

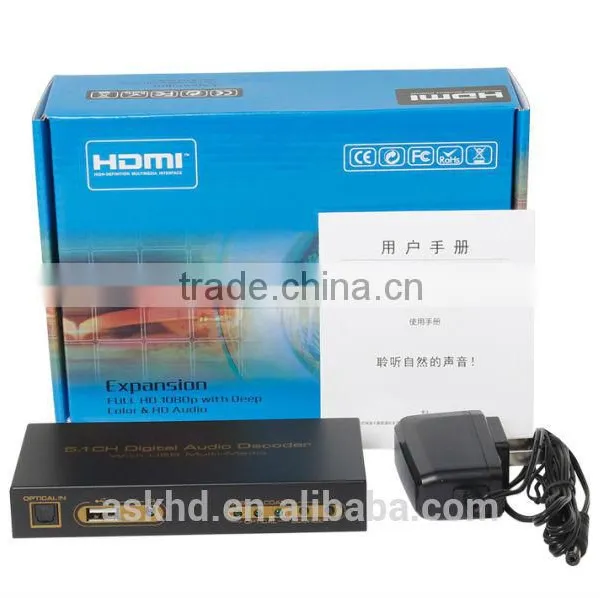

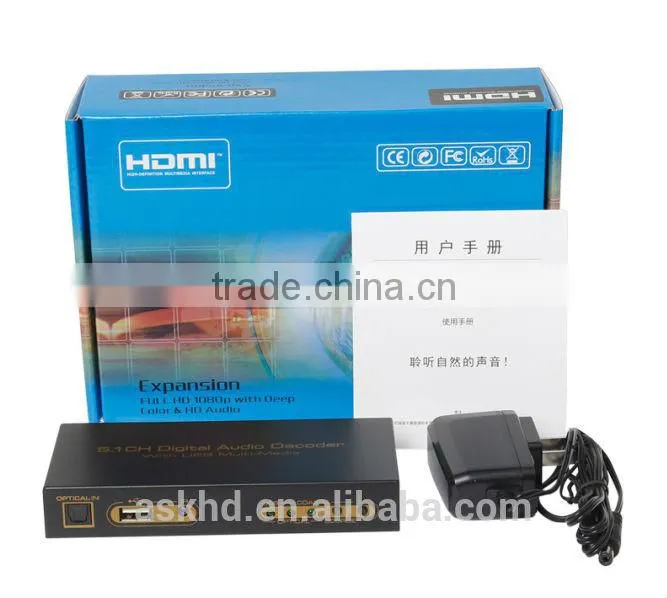

PACKAGE CONTENTS:

1. Main unit 1pcs

2. AC power adapter 1pcs

3. User manual 1pcs
