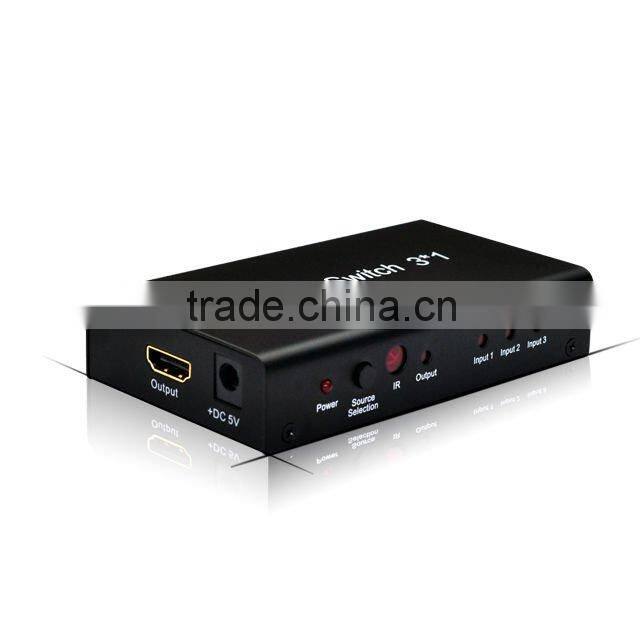

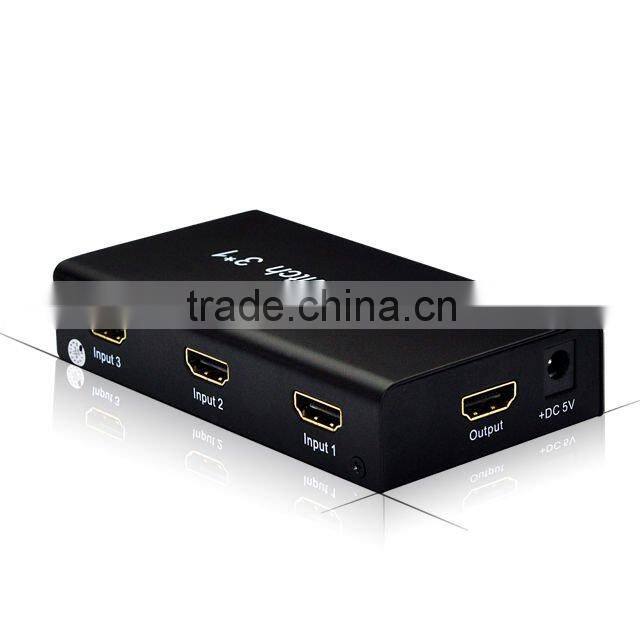

HD Audio/Video 3-Port Switch with Remote

SPECIFICATION

Name of the product

3x1HDMI Switcher

Signal Inputs/Output

3 inputs     1 output

HDMI Connector

type A 19 pin Female

HDMI Version

HDMI 1.3b

HDCP Version

HDCP1.2

HDMI Resolution

24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format

24bit/deep color 30bit 36bit

Support audio format

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max   bandwidth

250MHz

Max baud rate

7.5Gps

Input cable distance

≤ 15m HDMI AWG26

Output cable distance

≤ 25m AWG26 HDMI 1.3 standard cable

Input/output DDC Signal

5 volts p-p (TTL)

Input/Output TMDS signal

0.5~1.5Volts p-p

Max working current

350mA

Power adapter format...Input

AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range

(-15 to +55º C)

Operating Humidity range

5 to 90%RH (No Condensation)

Dimension (L x W x H)

115x61x25 (mm)

Net Weight

180g

Warranty

1 Year

Power Supply

5V DC@1A

AC Power Adapter

US standard, UK standard and so on

Regulatory Approvals

ROHS, CE, FCC

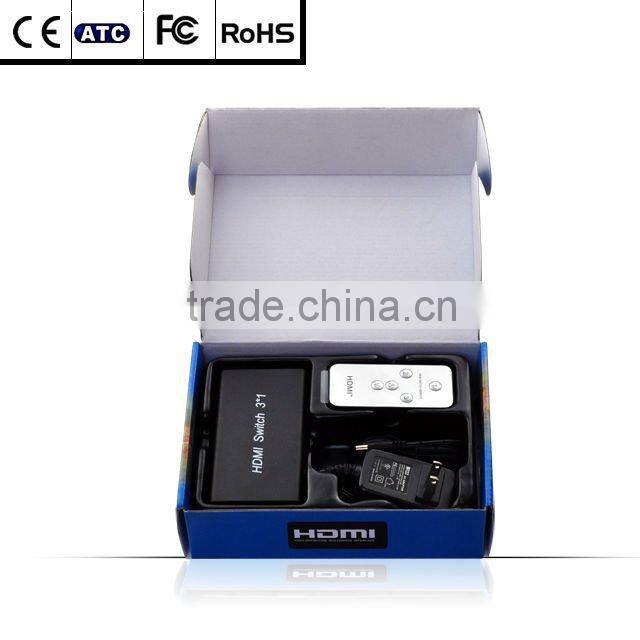

accessories with the machines

a. 5V Power Adaptor  b. Remote c. one pc of Manual

Note: Specifications are subject to change without notice.
