Specifications
One YPbPr input One VGA inputOne HDMI signal output
Support input up to 1080P via component

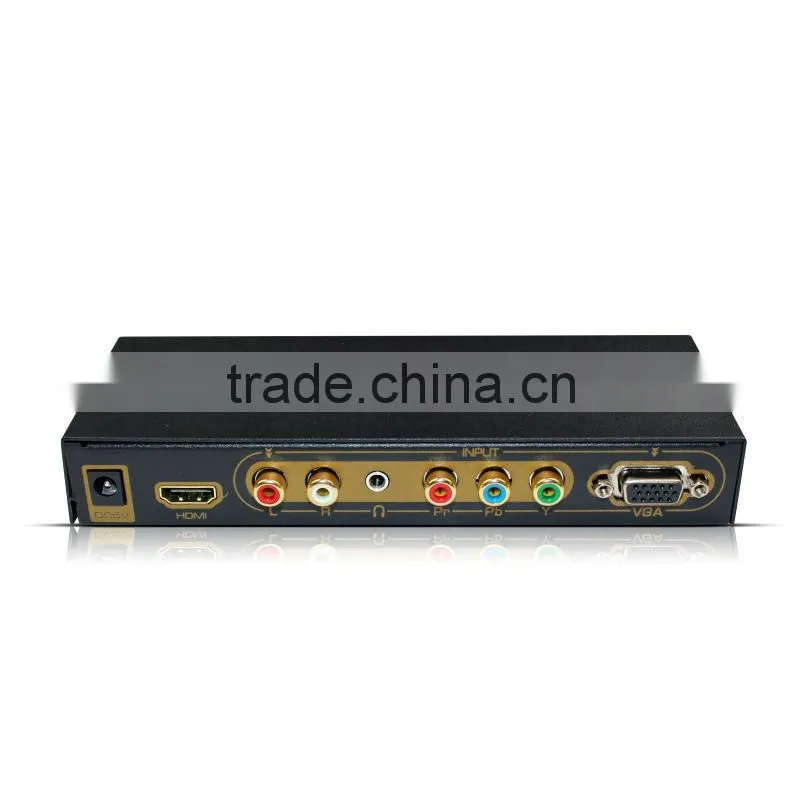

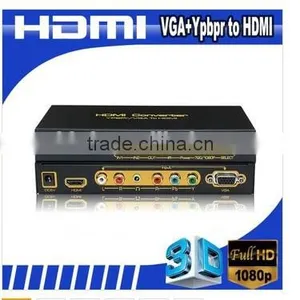

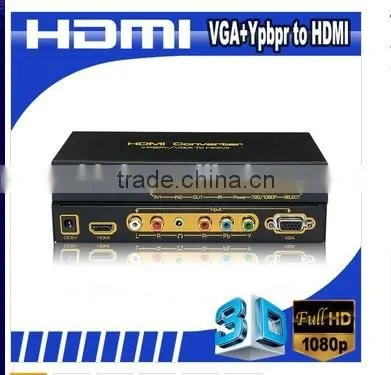

The 16-6708 use single source with VGA port or single source with YPbPr component accessing to single sink with HDMI port. The switcher allows RGB signal to be converted easily to TMDS signal
SPECIFICATIONS: 16-6708
Support input…………………………………………………………………………………...RGB
Support VGA input ………..….…800x600,1024x768,1152*864,1280*720,1280x768,1280x800,1280x960,1280x1024,1360x768,1366x768,1440x900,1680x1050,1920x1080
HDMI output resolution……………………………………………………..…….……720/1080P
Support resolution up to…………………………………………………………..……..1250lines
Max refresh rate…………………………………………………………………...…………..75HZ
Input Video signal ………….…………………………..………………………..0.5~2.0Volts p-p
Output video signal…………………………………………………………….-0.35~0.7Volts p-p
Max working current………………………………………………………………………...1000mA
Output cable distance…………………………….…….....≤20m AWG26 HDMI standard cable
Power adapter format……………......Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
