Specifications
HDMI V1.4 support 4Kx2K input and 3DSupport Blue-Ray 24/50/60fs/HD-DVD/xvYCC
FEATURES:

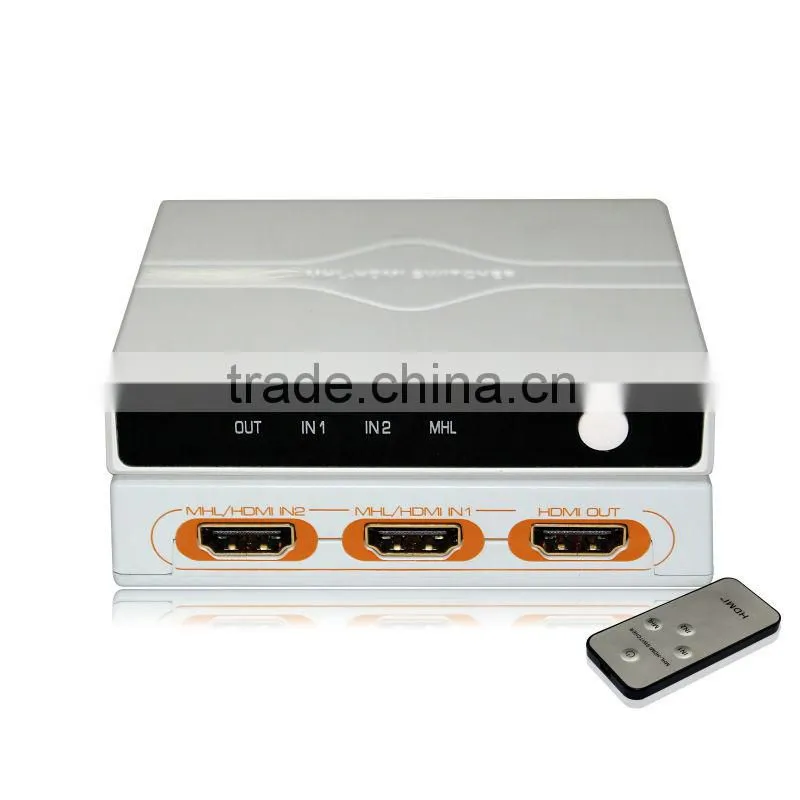

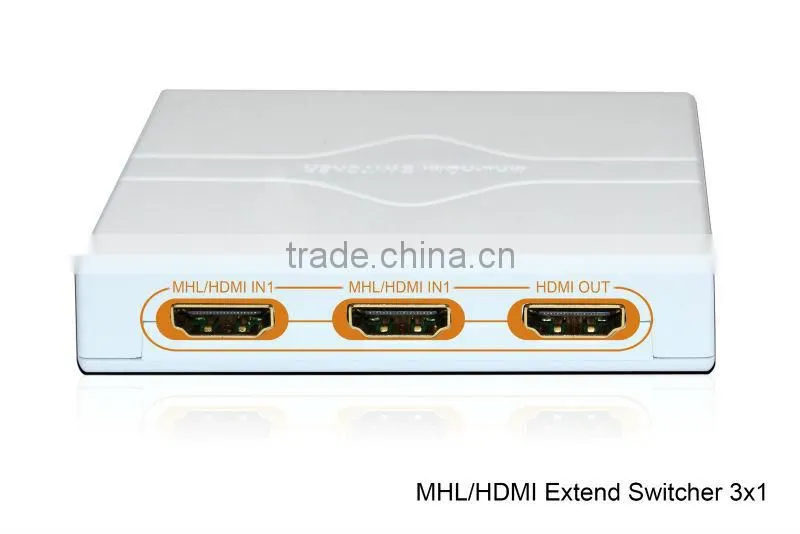

lSupports 1 MHL input port and 2 MHL/HDMI input ports working in dual mode and 1 HDMI output port
lSupport 1080P/60Hz and deep color 30bit, 36bit,48bit
lHDMI V1.4 support 4Kx2K input and 3D
lSupport Blue-Ray 24/50/60fs/HD-DVD/xvYCC
lDigital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
lSupport signal retiming
lNo loss of quality. Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
lMHL to HDMI with RCP function. You can through the TV remote control mobile device and switcher.( Requests the mobile device to support RCP function)
lMHL/HDMI working in dual mode, can reduce the number of ports.
lSupport external IR remote control
lEasy to Install
lDC5V/2A power adapter
SPECIFICATIONS: HDSW0301M1
HDMI STANDARD…………………………………………………HDMI V1.4 support 4K*2K input and 3D
HDMI resolution ………………………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…………….……24bit/deep color 30bit/36bit/48bit
Support audio format……………….…….…….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
MHL pixel clock rate (24-bit mode) …………….…….……………….…75MHz(8bit 1080i/720P 60Hz)
MHL pixel clock rate (Packed Pixel mode) …………….…….……150MHz(8bit 1080i 60Hz YCC422)
Max bandwidth…………………………………………………………………….…….….…………225MHz
Max baudrate……………….…….………………….……………………………….…….……… 6.75Gbps
Input/Output TMDS signal ………….…………………………….…..…….………0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..…….…….…….……5Volts p-p (TTL)
Input cable distance…...……………………….……….…….….….…≤15m AWG26 HDMI standard cable
Output cable distance ….…….…….…….…….…….…….…….……≤20m AWG26 HDMI standard cable
Max working current……………………………………………………………….……….…….….…..500mA
Power adapter format Input: ……......….….…….…….…….… AC 100V~240V 50HZ/60HZ; DC5V/2A
Operating Temperature range……..…………….………………………………………………-15 to +55°C
Operating Humidity range………………………….….……….…………5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….…………………………………… 95x77x19 (mm)
Weight…….…………………………….………………………………………….………………………76g
