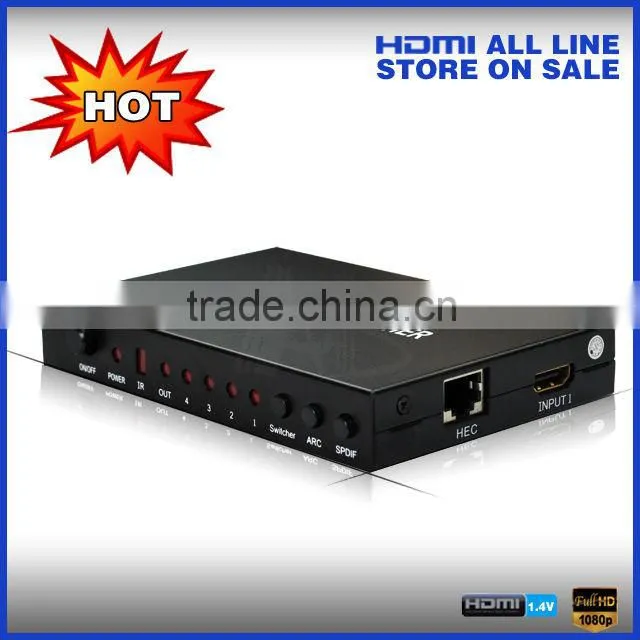

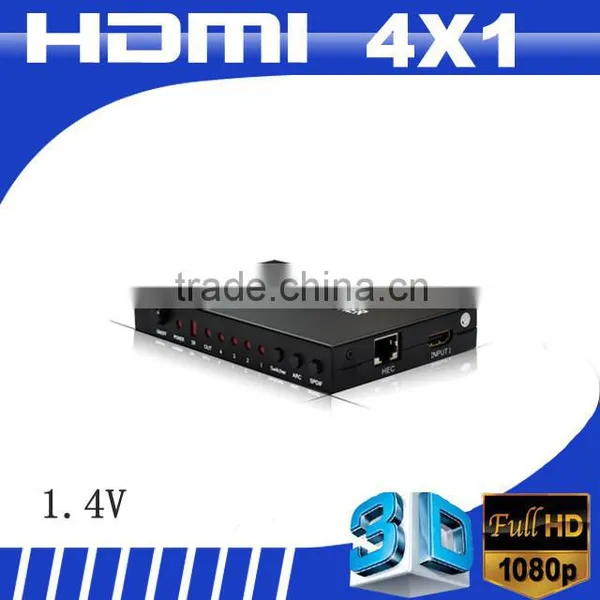

Help CenterV1.4 Video Switcher HDMI 4x1 Switcher
Related Products
-
HDMI 3x1 Switcher With 5.1ch 2ch Audio OutNegotiableMOQ: 20 Sets -
3x1 HDMI Audio Extractor With Support of ARC,3D, 4KX2KNegotiableMOQ: 20 Sets
-
HDMI Bi-directional 2x1 or 1x2 A-B / AB Switch / SwitcherNegotiableMOQ: 200 Sets
-
HDMI Bi-directional 2x1 or 1x2 A-B / AB Switch / SwitcherNegotiableMOQ: 200 Sets
-
A/B Switch Switcher Box Amplifier Splitter Support 3D 1080p HDTV,NegotiableMOQ: 200 Sets
Specifications
Support 3DWith HDMI-CEC function
Support deep color 30bit, 36bit
FEATURES

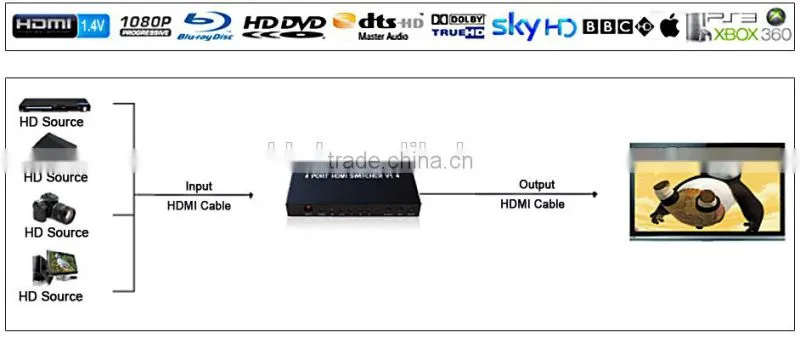

lFour HDMI input signals switched to one single HDMI sink devices
lAny input signal can be supported that have extra audio out by the optical cable.
l Support 3D
lSupport ARC Function: Without adding one extra HDMI Cable, it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receive the audio and video content.
lSupport HEC Function: It allows the other HDMI Devices based the Ethernet and other HDMI devices enjoy the Ethernet function, so that you do not need to add one extra ethernet cable.
lWith HDMI-CEC function.
lSupport deep color 30bit, 36bit
lSupport Blue-Ray 24/50/60fs/HD-DVD/xvYCC
lDigital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
lSupport signal retiming
lSupport input up to 15metres using AWG24 HDMI standard cable length, output up to 25metres using AWG24 cable length

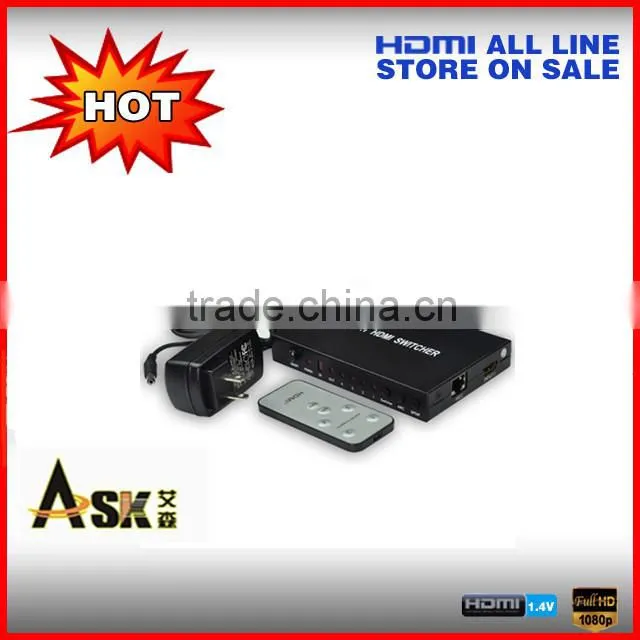

lInputs can be switched with the IR remote control,also can be controlled by two buttons.
lOptical Audio Output Format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD,HIFI Audio format depends on the Audio Source.
lIt can come back to the default the input 1 status when restarted or reset.
lNo loss of quality
lInstalls in minutes
lNeed DC5V/2A power supply
SPECIFICATIONS: HMX-A4
HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…………….24bit/deep color 30bit,36bit
Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Audio output…………………………………………………………………….SPDIF
Max transmission bandwidth…….………………….…………………………………..225MHz
Max baud rate…………………………………………………………………………….6.75Gbps
Input/Output TMDS signal ………….…………………………..……………… 0.5~1.5Volts p-p
Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... ……………………….………..≤15m AWG24 HDMI standard cable
Output cable distance…………………………….…….....≤25m AWG24 HDMI standard cable
Max working current…………………………………………………………………………900mA
Power adapter format………………..Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range……..…………….………………………………… (-15 to +55°C)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………..…134x89x22 (mm)
Weight…..………………………………………………………..…….……..…………………330g
lSupport input up to 15metres using AWG24 HDMI standard cable length, output up to 25metres using AWG24 cable length
lInputs can be switched with the IR remote control,also can be controlled by two buttons.
lOptical Audio Output Format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD,HIFI Audio format depends on the Audio Source.
lIt can come back to the default the input 1 status when restarted or reset.
lNo loss of quality
lInstalls in minutes
lNeed DC5V/2A power supply
