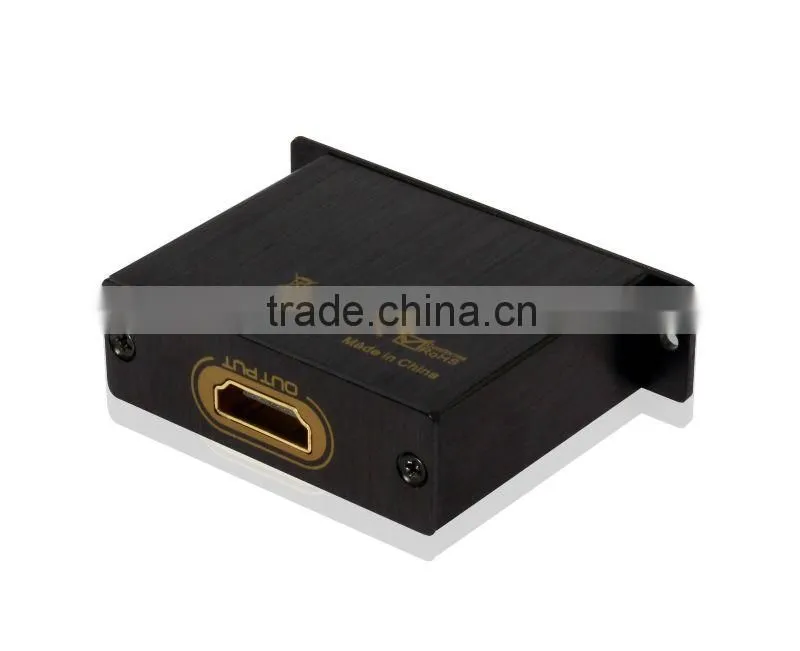

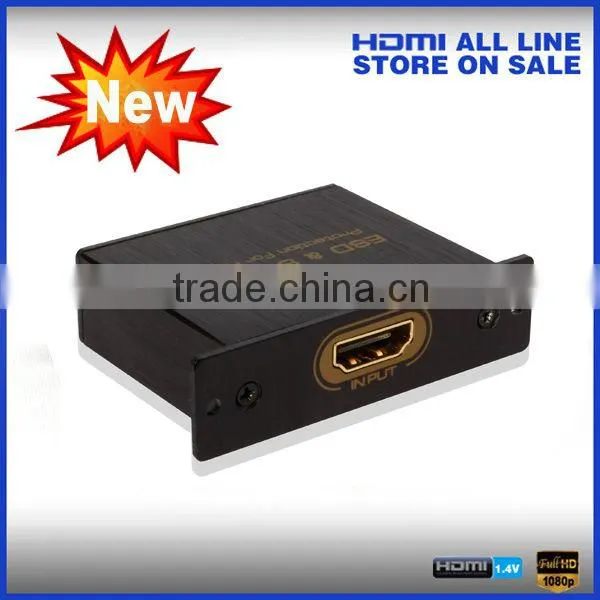

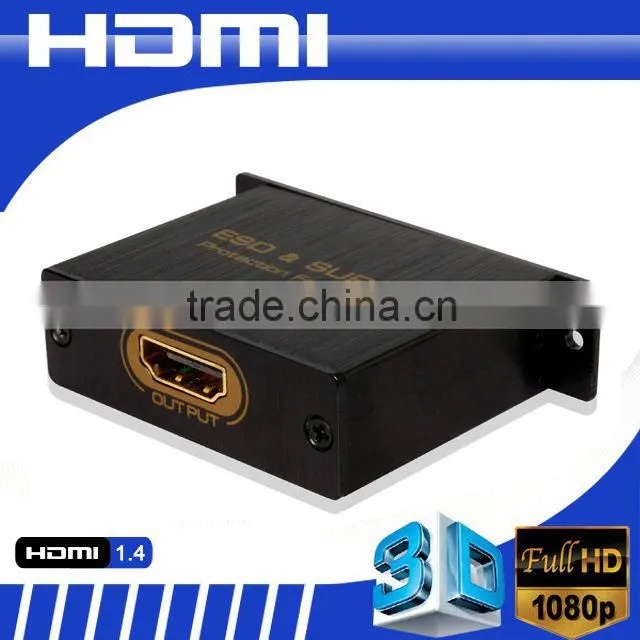

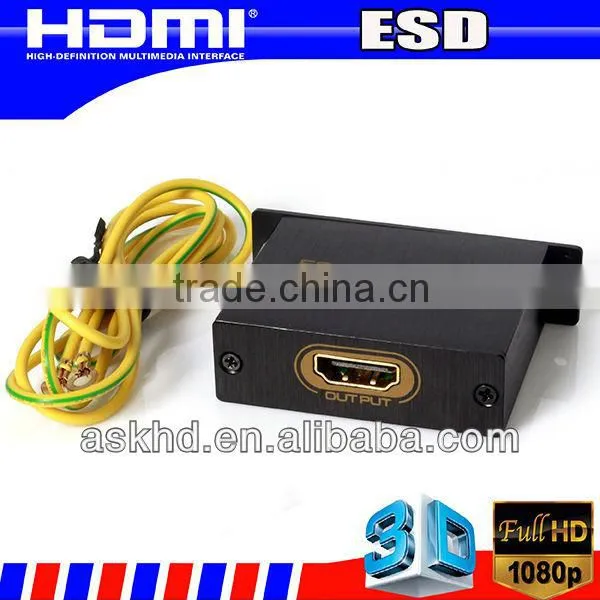

HDMI ESD Surge Protector Lightning to Hdmi

Name: HDMI ESD Surge Protector Lightning to Hdmi
Brand: Ask/OEM/ODM
SKU: 106771707
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Ask/OEM/ODM

Place of Origin:

Guangdong, China

Shenzhen ASK Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Ask/OEM/ODM

Place of Origin Guangdong, China

Specifications

HDMI ESD Surge Lightning Protector
HDMI1.4 with 3D,4KX2K and HEAC HDCP
Protect HDMI input and output for ESD ,Surge Lightning

Hot new product ESD protector for 2013

FEATURES

lProtect HDMI input and output for ESD and Lightning Surge

lMeet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).

lMeet IEC 61000-4-4 (EFT) 40A (5/50ns).

lMeet IEC 61000-4-5 (Lightning) 5A (8/20µs).

lSupport HDMI 1.4 with 3D,4KX2K and HEAC.

lSolid-state silicon-avalanche technology.

lSupport HDCP

lNo loss of quality

lInstalls in minutes

lNo Need Power Adptor

Specification: HDEX001M1

HDMI version:	HDMI 1.4 with 3D ,4Kx2K,HEAC
HDMI resolution:	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format:	24bit/deep color 30bit,36bit, 48bit
Support audio format:	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:	340MHz
Max baudrate:	10.2Gbps
Input/Output TMDS signal:	0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:	5Volts p-p (TTL)
Max working current:	50mA
Operating Temperature :range:	(-15 to +55°C)
Operating Humidity range:	5 to 90%RH (No Condensation)
Dimension (L x W x H):	43.5x64x16.5 (mm)
Weight:	40g
