Specifications
3D HDMI switcher 5x1 With IR1. 1.3v, 3D, full HD 1080P
2. 5 in 1 out, 5 HD signal switch to 1 HD display
3. CE/FCC/RoHS
SPECIFICATIONS: HDSW0501M
HDMI version…………………………………………………………………………… HDMI 1.3
HDCP version…………………………………………………………………………....HDCP1.2
HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…………….24bit/deep color 30bit,36bit
Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………………………………250MHz
Max baud rate………………....7.5Gbps
Input/Output TMDS signal ………….0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………. 5Volts p-p (TTL)
Input cable distance..…... ≤15m AWG26 HDMI 1.3 standard cable
Output cable distance……………………………...≤25m AWG26 HDMI 1.3 standard cable
Max working current………………………………………………………………………...650mA
Operating and Connecting
1. Connect one cable from each HDMI source devices into HDMI Switcher inputs.
2. Connect one cable from display (monitor or projector) into the HDMI Switcher outputs.
3. Connect 5V power supply to the HDMI 5x1 Switcher.
4. Use the RMT-IR remote control port to remotely switch or use button to switch between
sources.
FEATURES
l Five HDMI 1.3 input signals switched to a single HDMI 1.3 sink devices
l HDCP 1.2 protocol compliant
l Support deep color 30bit, 36bit
l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
l Support signal retiming
l Support input up to 15metres AWG26 HDMI 1.3 standard cable length,
output up to 25metres AWG26 cable length
l Inputs can be switched with the IR remote control,also can be controlled by button.
l It can smartly jump over those input sources which are not connected.
l With the smart function of memory, it can come back to the latest status when restarted
or reconnected.
l No loss of quality
l Installs in minutes
l Need DC5V/1A power supply

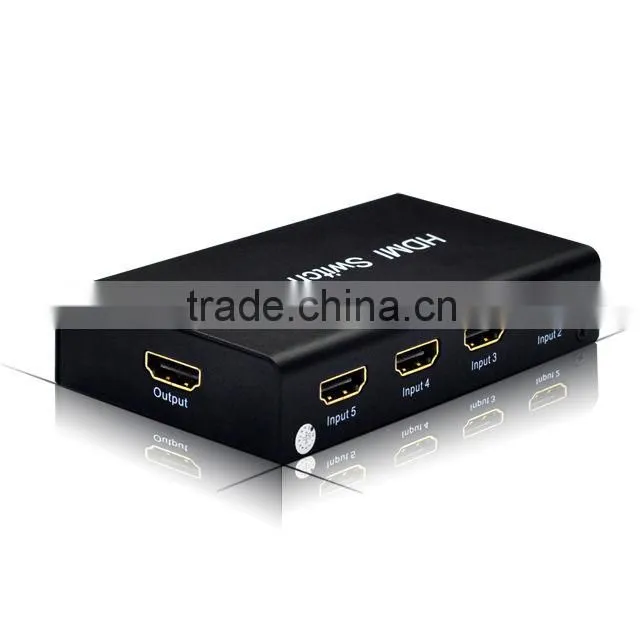

the rear and side board showing picture
