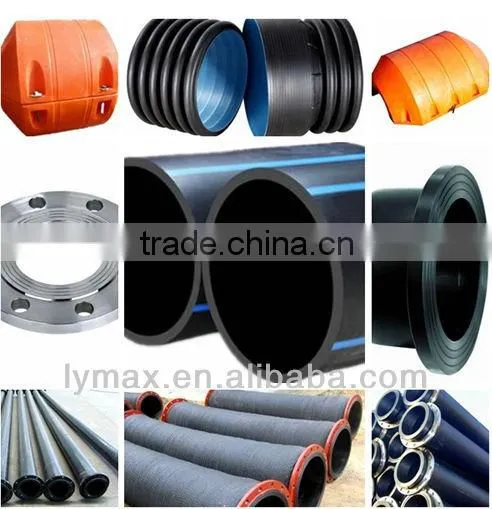

Abrasion Resistant Plastic 400mm UHMWPE Pipe for Coal Slurry
US$ 2 - 200
MOQ: 1 Meter
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Max
Model Number:
UHMWPE Pipe
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Plastic Products 219mm UHMWPE Tubing for TailingUS$ 2 - 200MOQ: 1 Meter -
Plastic 65-800mm Ultra High Molecular Weight Polyethylene Pipe for Mining SlurryUS$ 2 - 200MOQ: 1 Meter
-
Abrasion Resistant Best Price UHMWPE Tubing / UHMWPE Tube / UHMWPE Pipes ManufacturerUS$ 2 - 200MOQ: 1 Meter
-
Large Diameter UHMWPE Coal Slurry Pipe for Industrial ApplicationUS$ 2.5 - 225MOQ: 100 Meters
-
High Quality Best Price UHMWPE Pipe for Slurry, Industrial Plastic Coal Slurry PipeUS$ 2.5 - 225MOQ: 100 Meters
Place of Origin
Henan, China
Brand Name
Max
Model Number
UHMWPE Pipe
Material
Other, UHMWPE Powder
Specification
65mm-800mm
Length
6m,12m or as request
Thickness
8mm-38mm
Standard
GB Standard
Abrasion Resistant Plastic 400mm UHMWPE Pipe for Coal Slurry

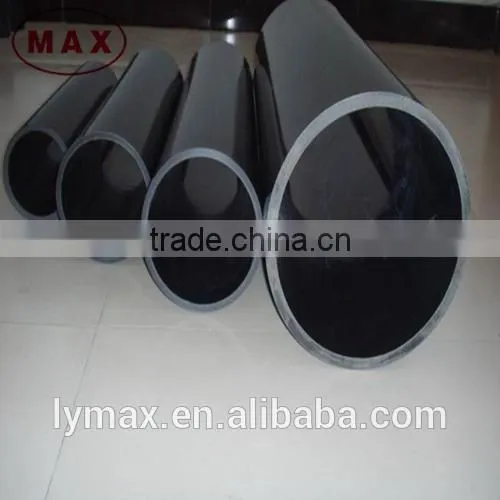

What is UHMWPE Pipe
Ultra-high molecular weight polyethylene (UHMWPE) is a kind of engineering thermoplastics with more than 2 million viscosity-average molecular weight, under the polymerization of ethylene, butadiene monomer in the catalyst.
UHMW slurry pipe features:
1. Anti-abrasion:the abrasion value of UHMWPE pipe is 1/4 of steel pipe,1/3 of HDPE pipe under same working condition.
2. Water hammer resistance:UHMWPE pipes have strong enduring capability to the impacts from various sands,mud and slurries.
3. Corrosive resistance:With higher structure stability ,UHMWPE pipes are corrosive resistant to sea waters.No electro chemical corrosion,no need anti-corrosive coating.
4. Self-lubrication:The roughness of UHMWPE pipe is 0.00022mm.The pressure loss of UHMWPE pipe is 1/10 of steel pipes ,1/7 of nylon pipes.Over 20% of transfer efficiency will be increased.
5. Non-scaling:The internal wall is very smooth,preventing the fouling on the wall and no influence to the production efficiency.
6. Light weight:The density of UHMWPE pipe is only 1/8 of steel pipe.It is easy to move and install,especially suitable for the working sites at he lifting machines could not work.
7. Easy connection:flanges are available to connect the pipes,no need washers .The installation will be very easy and fast.
8. Anti-aging:the UHMWPE pipes will not be aging in 50 years under hot sunlight,and it could work over 100 years if buried underground.
9. Environment friendly: UHMWPE pipe is nontoxic,no bacteria,and no pollution to environment.
10. Low carbon:the discharge of carbon dioxide during UHMWPE pipe production is only 15% of steel pipe production.
1. Anti-abrasion:the abrasion value of UHMWPE pipe is 1/4 of steel pipe,1/3 of HDPE pipe under same working condition.
2. Water hammer resistance:UHMWPE pipes have strong enduring capability to the impacts from various sands,mud and slurries.
3. Corrosive resistance:With higher structure stability ,UHMWPE pipes are corrosive resistant to sea waters.No electro chemical corrosion,no need anti-corrosive coating.
4. Self-lubrication:The roughness of UHMWPE pipe is 0.00022mm.The pressure loss of UHMWPE pipe is 1/10 of steel pipes ,1/7 of nylon pipes.Over 20% of transfer efficiency will be increased.
5. Non-scaling:The internal wall is very smooth,preventing the fouling on the wall and no influence to the production efficiency.
6. Light weight:The density of UHMWPE pipe is only 1/8 of steel pipe.It is easy to move and install,especially suitable for the working sites at he lifting machines could not work.
7. Easy connection:flanges are available to connect the pipes,no need washers .The installation will be very easy and fast.
8. Anti-aging:the UHMWPE pipes will not be aging in 50 years under hot sunlight,and it could work over 100 years if buried underground.
9. Environment friendly: UHMWPE pipe is nontoxic,no bacteria,and no pollution to environment.
10. Low carbon:the discharge of carbon dioxide during UHMWPE pipe production is only 15% of steel pipe production.
Application Areas of UHMWPE Pipe
it is widely used in dredging, water supply, metallurgical mines, electric power, petroleum, natural gas, textiles, paper making, food, chemical industry, machinery, etc.
The UHMWPE PIPE specification:
Diameter (MM) |
0.6Mpa |
0.8Mpa |
1.0Mpa |
1.25Mpa |
1.6Mpa |
2.0Mpa |
Thick(MM) |
Thick(MM) |
Thick(MM) |
Thick(MM) |
Thick(MM) |
Thick(MM) |
|
65 |
|
|
|
|
8 |
9 |
96 |
|
|
|
|
9 |
10 |
110 |
|
|
|
|
8 |
10 |
130 |
|
|
|
8 |
10 |
12 |
159 |
|
|
|
10 |
12 |
15 |
168 |
|
|
8 |
10 |
13 |
16 |
205 |
|
8 |
10 |
12 |
15 |
18 |
219 |
|
9 |
11 |
13 |
16 |
20 |
236 |
|
10 |
12 |
14 |
18 |
22 |
250 |
|
10 |
12 |
15 |
19 |
23 |
273 |
9 |
11 |
13 |
16 |
21 |
25 |
280 |
9 |
11 |
14 |
17 |
21 |
26 |
300 |
10 |
12 |
15 |
18 |
23 |
27 |
315 |
10 |
12 |
15 |
19 |
24 |
29 |
325 |
10 |
13 |
16 |
19 |
24 |
30 |
350 |
11 |
14 |
17 |
21 |
26 |
32 |
377 |
12 |
15 |
18 |
22 |
28 |
35 |
400 |
12 |
16 |
19 |
24 |
30 |
36 |
415 |
13 |
16 |
20 |
25 |
31 |
|
426 |
13 |
17 |
20 |
25 |
32 |
|
536 |
16 |
21 |
26 |
23 |
|
|
560 |
16 |
22 |
27 |
33 |
|
|
630 |
19 |
25 |
30 |
37 |
|
|
652 |
20 |
26 |
32 |
38 |
|
|
710 |
21 |
27 |
34 |
|
|
|
800 |
23 |
31 |
38 |
|
|
