Home > Products > UHMWPE PIPE > Abrasion Resistant Best Price UHMWPE Tubing / UHMWPE Tube / UHMWPE Pipes Manufacturer

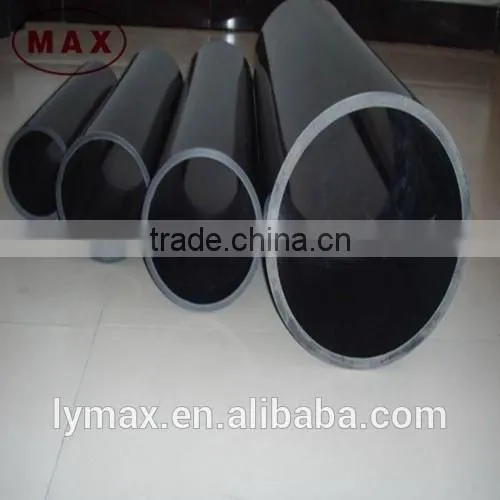

Abrasion Resistant Best Price UHMWPE Tubing / UHMWPE Tube / UHMWPE Pipes Manufacturer
- 10000 Meter / Meters per Month
- Qingdao Shanghai
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Henan, China | Brand Name: | Max | Model Number: | UHMWPE Pipe |
Material: | Other, UHMWPE Powder | Specification: | 65mm-800mm | Length: | 6m,12m or as request |
Thickness: | 8mm-38mm | Standard: | GB Standard |
Product Description
Abrasion Resistant Best Price UHMWPE Tubing / UHMWPE Tube / UHMWPE Pipes Manufacturer
UHMWPE Tubing Main Characteristics:
1.Extremely high wear resistance;
Its wear resistance is 6.6 times higher than normal alloy steel, 27.3 times that of stainless
steel, 4-7 times 17.9 times that of phenolic resin,6. 4 times that of polyethylene
2.High impact resistance: It won’t damage by Cantilever beam impact test according to
GB1843 standards
3.High corrosion resistance: It can withstand hydrochloric acid with less than 80% concentration
4.High-pressuer resistance: The working pressure is between 0.2Mpa to 4.0Mpa
5.Good self-lubrication: Its self-lubrication is better than steel or brass with oil
6.The unique resistance to low temperature:It can be used within -269 to 80 degrees Celsius.
7.Not easy to form dirt: It can’t form dirt in the medium with PH value of 9 or above
8.Long life-span:It can maintain more than 70% mechanical properties after it is buried and
used for 50 years.
9.Easy installation:The weight of unit length of UHMWPE pipe is only one-eighth of the steel
pipe, it is possible whether it is welded or connected by flange
UHMWPE Tubing Application Fields:
Electric power plant
Piping for transporting fly ash, dry powder, and slurry.
Shipping industry
For clearing shiping lane and transporting the silt.
Chemical industry
For transporting all kinds of severely corrosive fluids.
Metallurgical industry
Piping for transporting mortar. metallurgical waste. lead particles, aluminum powder
Food industry
For transporting wheat, flour, rice, soybean, grain etc.
Coal industry
For transporting heavy medium and coal-water slurry.
Construction industry
For transporting particle and slurry.
Application:
UHMWPE Tubing Specification:
Diameter MM | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa |
Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | |
65 | 8 | 9 | ||||
96 | 9 | 10 | ||||
110 | 8 | 10 | ||||
130 | 8 | 10 | 12 | |||
159 | 10 | 12 | 15 | |||
168 | 8 | 10 | 13 | 16 | ||
205 | 8 | 10 | 12 | 15 | 18 | |
219 | 9 | 11 | 13 | 16 | 20 | |
236 | 10 | 12 | 14 | 18 | 22 | |
250 | 10 | 12 | 15 | 19 | 23 | |
273 | 9 | 11 | 13 | 16 | 21 | 25 |
280 | 9 | 11 | 14 | 17 | 21 | 26 |
300 | 10 | 12 | 15 | 18 | 23 | 27 |
315 | 10 | 12 | 15 | 19 | 24 | 29 |
325 | 10 | 13 | 16 | 19 | 24 | 30 |
350 | 11 | 14 | 17 | 21 | 26 | 32 |
377 | 12 | 15 | 18 | 22 | 28 | 35 |
400 | 12 | 16 | 19 | 24 | 30 | 36 |
415 | 13 | 16 | 20 | 25 | 31 | |
426 | 13 | 17 | 20 | 25 | 32 | |
536 | 16 | 21 | 26 | 23 | ||
560 | 16 | 22 | 27 | 33 | ||
630 | 19 | 25 | 30 | 37 | ||
652 | 20 | 26 | 32 | 38 | ||
710 | 21 | 27 | 34 | |||
800 | 23 | 31 | 38 |
Packaging and Transportation:
Customer visit:
Main Products:
FAQ:
We believe qualitly is our culture,with us your business in safe,and your money in safe. For more information, please contact us freely.
