Specifications
High Impact Resistance 18" UHMWPE Pipe for Crude Oil and SewagePure uhmwpe material
Long Lifespan
Light Weight
ISO
Product Introduction:
1. Anti abrasion: Under the same instance, the bulk lost is only the 1/7 of steel pipes.
2. Anti high pressure: it is applicable under the press 0.2Mpa to 4.0Mpa.
3. Anti corrosion very well because of solid structure.
4. From lubrication: the abrasion is the least among all pipes materials, under the same condition, the pressure lost is only the steel pipes’ 1/10 and only the nylon’s 1/7.
5. Non-scaling: the internal wall is so slippery that the medium can not deposit on it.
6. Light weight: the density is the 1/8 of the steel, it is easy to convey and install.
7. Available to connection: it is welded by flange or hoop, convenient to install.
8. Anti-aging: there is anti-ultraviolet radiation material in the pipes, may use above 50 years under the hot sunlight.
9. Temperature-resistance: the pipe can be used between -70°C to 85°C.
10. Long life: under the same condition, the used life is the steel pipes’ 7 times.
11. Health & safety: this kind pipes is innocuity and recycling.
Product Applications:
1.To transport sand and mud and slurry in river/habor/sea water dredging industry.
2.To transport mine tailings and slurry ,metallurgical mines,in the mining industry
3.To transport powder and coal ash in thermal power plant
4.To transport pulverized coal and coal-water slurry of coal preparation plant in the coal industry
5.To transport mud and corrosive media with slag in the chemical industry
6.To transport crud oil,petroleum, food and natural gas
Product Specifications:
| UHMWPE Pipe Specification Table | ||||||
| Diameter (mm) | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6MPa | 2.0Mpa |
| Wall Thickness(mm) | ||||||
| 65 | 8 | 9 | ||||
| 96 | 9 | 10 | ||||
| 110 | 8 | 10 | ||||
| 130 | 8 | 10 | 12 | |||
| 159 | 10 | 12 | 15 | |||
| 168 | 8 | 10 | 13 | 16 | ||
| 205 | 8 | 10 | 12 | 15 | 18 | |
| 219 | 9 | 11 | 13 | 16 | 20 | |
| 236 | 10 | 12 | 14 | 18 | 22 | |
| 250 | 10 | 12 | 15 | 19 | 23 | |
| 273 | 9 | 11 | 13 | 16 | 21 | 25 |
| 280 | 9 | 11 | 14 | 17 | 21 | 26 |
| 300 | 10 | 12 | 15 | 18 | 23 | 27 |
| 315 | 10 | 12 | 15 | 19 | 24 | 29 |
| 325 | 10 | 13 | 16 | 19 | 24 | 30 |
| 350 | 11 | 14 | 17 | 21 | 26 | 32 |
| 377 | 12 | 15 | 18 | 22 | 28 | 35 |
| 400 | 12 | 16 | 19 | 24 | 30 | 36 |
| 415 | 13 | 16 | 20 | 25 | 31 | |
| 426 | 13 | 17 | 20 | 25 | 32 | |
| 536 | 16 | 21 | 26 | 23 | ||
| 560 | 16 | 22 | 27 | 33 | ||
| 630 | 19 | 25 | 30 | 37 | ||
| 652 | 20 | 26 | 32 | 38 | ||
| 710 | 21 | 27 | 34 | |||
| 800 | 23 | 31 | 38 | |||

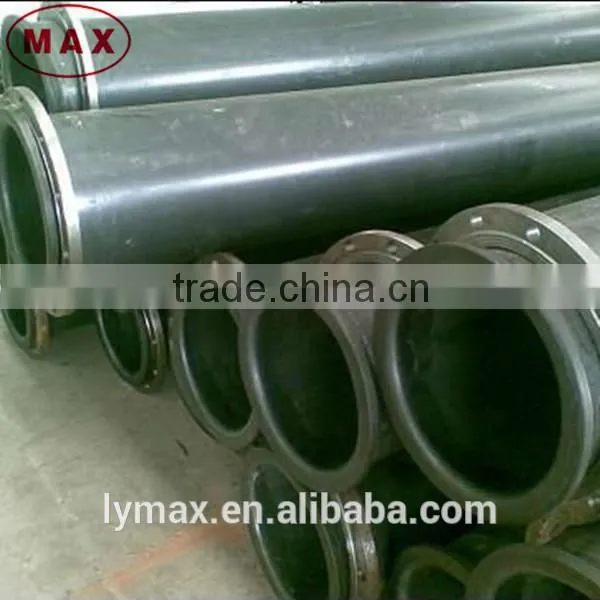

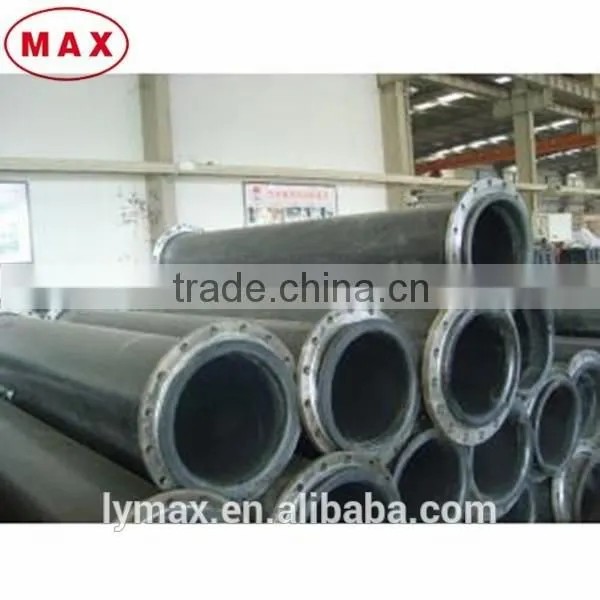

18" uhmwpe pipe
18" uhmwpe pipe
18" uhmwpe pipe
18" uhmwpe pipe
Thanks so much for viewing our products, if you have any questons,please contact us freely.
