10 Inch High Temperature Rubber Hose For Angricuture Water Supply
US$ 1 - 50
MOQ: 10 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
MAX
Model Number:
Rubber Hose Pipe
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao / Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Water Suction Rubber Hose Pipe Heat Resistant Hose Rubber PipeUS$ 1 - 50MOQ: 50 Meters -
High Pressure Flexible 10 Inch Water Pump Suction HoseUS$ 1 - 50MOQ: 10 Meters
-
High Quality Wear Resistant Oil Resistant Rubber Hose ManufacturerUS$ 1 - 50MOQ: 50 Meters
-
High Quality 20 Inch Flexible Rubber Hose Pipe Used With DredgerUS$ 1 - 50MOQ: 10 Meters
-
High Strength Anti Static ID65mm Mud Discharge Rubber HoseUS$ 1 - 50MOQ: 50 Meters
Place of Origin
Henan, China
Brand Name
MAX
Model Number
Rubber Hose Pipe
10 Inch High Temperature Rubber Hose For Angricuture Water Supply
1.Rubber hose description:
Rubber Hose Pipe Materials:
Tube: Smooth NR/ synthetic rubber, generally color is black
Reinforcement: one or multilayer spiral fabric reinforcements, steel wire spiral layer,
Cover: Oil, abration and weather-resistant wrapped synthetic rubber.
Rubber Hose Pipe Structure:
1. The inner rubber liner is composed of wear-proof natural rubber and synthetic rubber
2. The reinforcement layer is composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3. The rubber cover is composed of natural rubber and synthetic rubber.
4. The surface of the hose takes the shape of corrugated
Rubber Hose Pipe Performance:
1. Rubber hose pipes are used with dredgers for silt/gravels conveyance.
2. Pipe wall thickness range: from 20mm up to 50mm.
3. The suitable working temperature: from -20°C to +50°C.
4. Abrasion-resistant and bending –resistant.
5. It is convenient to install, flexible to use and safe.
Rubber Hose Pipe Applications:
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.
Rubber Hose Pipe Specification Table:
Ship type | Dredging hose I.D. | Thickness of the steel ring | Number of tyre cord layer | Length |
200m3 /H | 400mm | 35mm | 12 | 1400mm |
350m3/H | 560 mm | 35 mm | 12 | 1500mm |
Beaver1600 | 500 mm | 35mm | 12 | 1500mm |
Beaver3800 | 650 mm | 40mm | 15 | 1500mm |
Beaver4600 | 700 mm | 40mm | 15 | 1500mm |
Note: other size can be customized
Rubber Hose Pipe Physical Index:
Testing Item | National Standard of Hose Lining | Standard of the Company |
Tensile Strength at Break (MPa) | >12 | >150 |
Elongation at Break % | >400 | >500 |
Akron Abrasion cm3/1.6km | 1 | <0.8 |
Shore Hardness |
| 63±3 |
Application Temperature °C |
| -40~+60 |

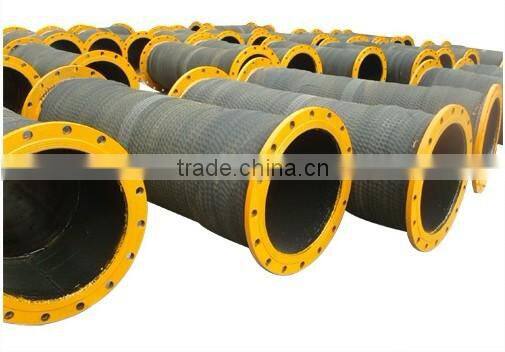

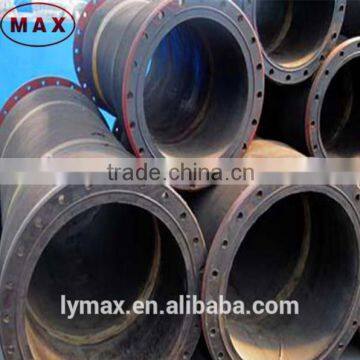

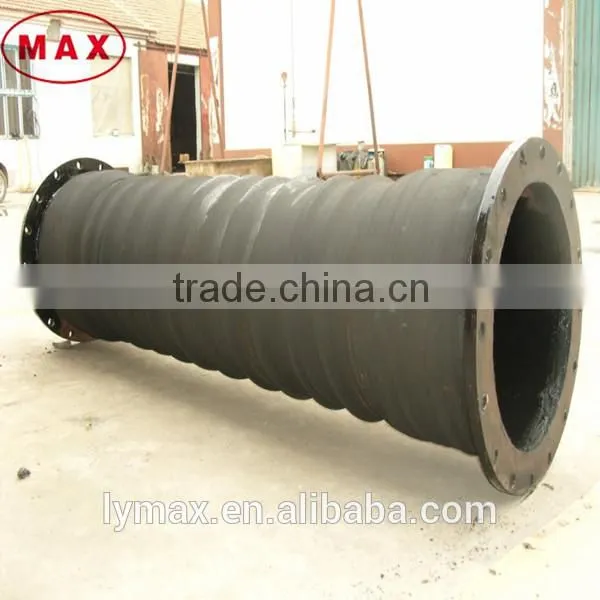

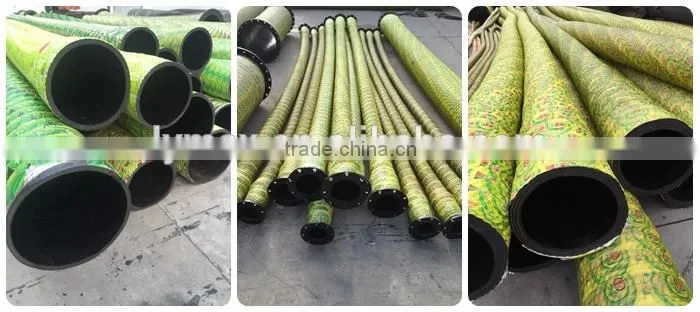

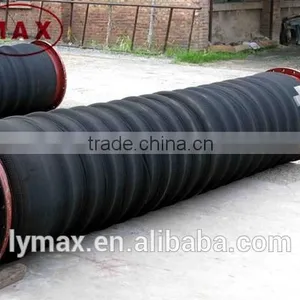

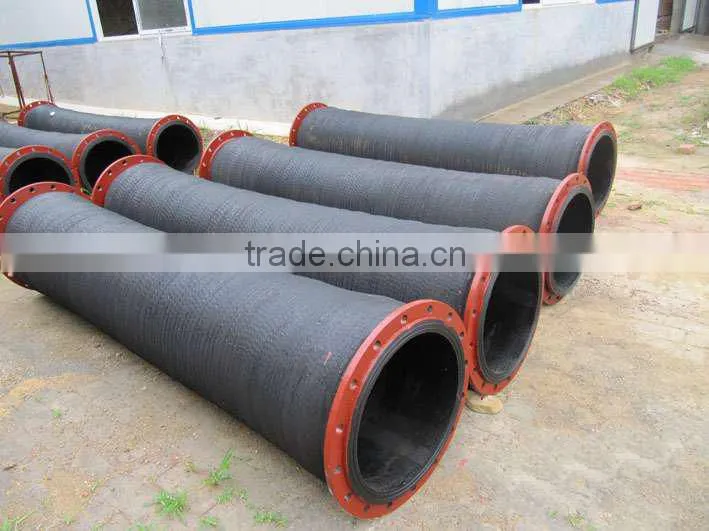

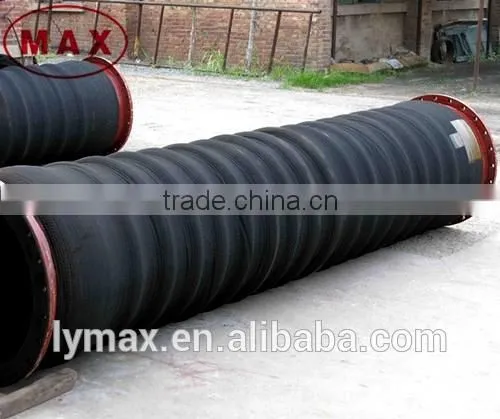

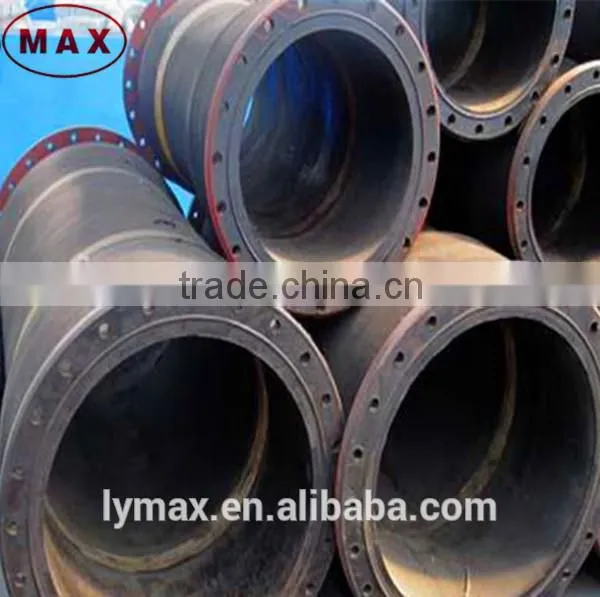

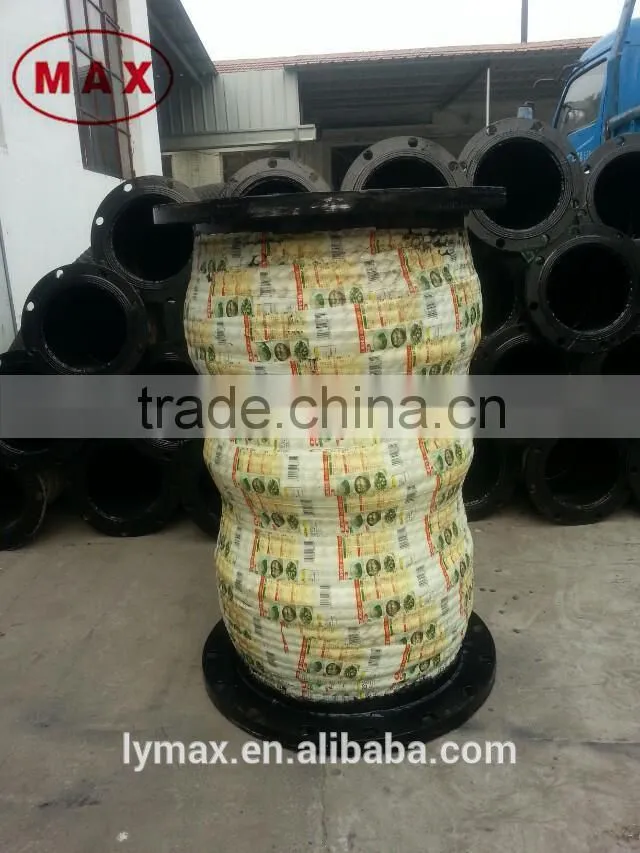

2.Product Show of flexible rubber hose :

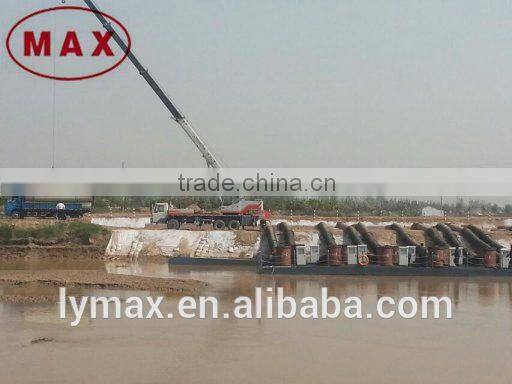

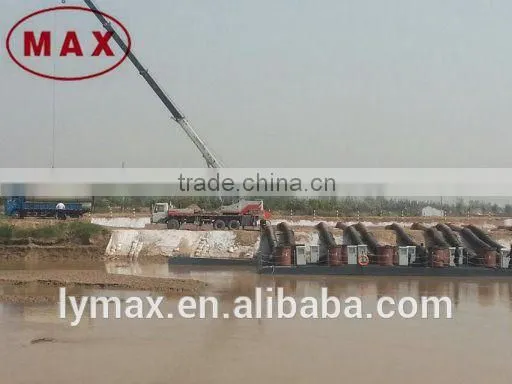

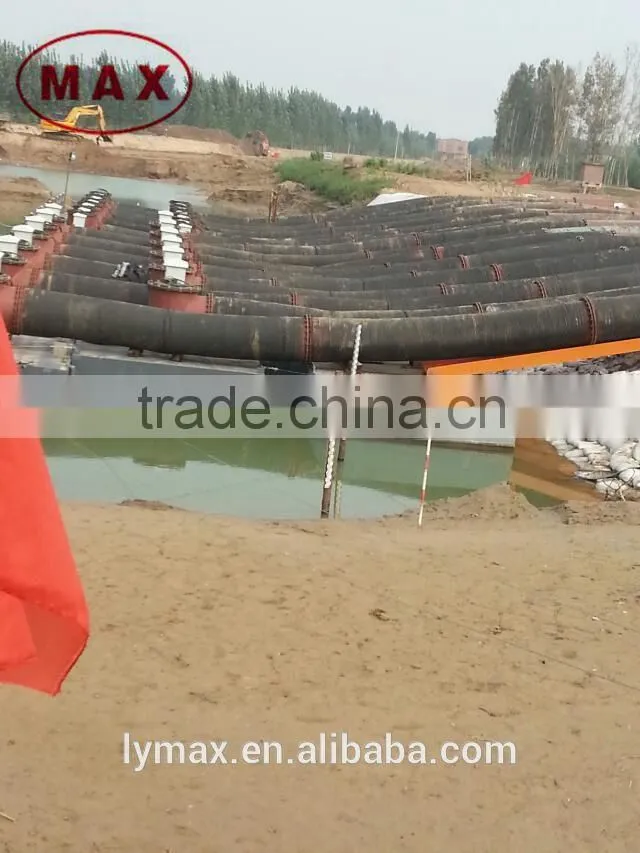

3.Application of flexible rubber hose

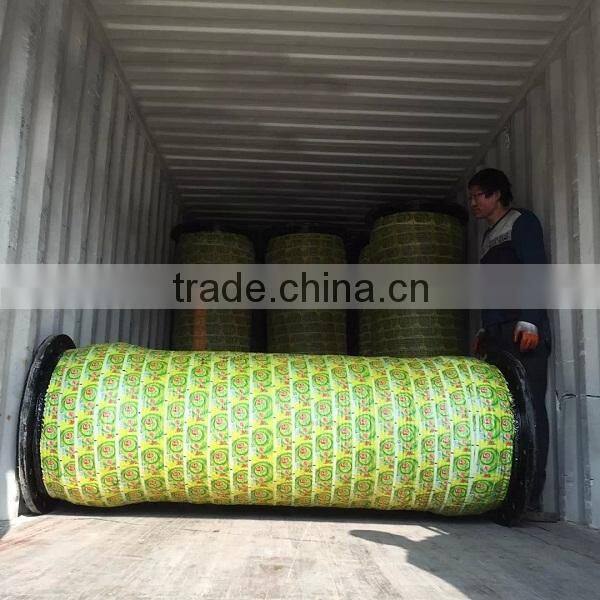

4.Transportation of flexible rubber hose

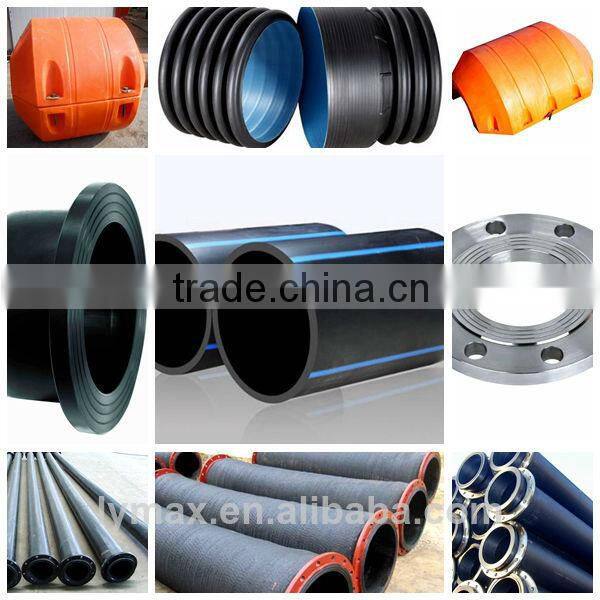

5.Our main products
6.Certificate:
7.Customer visiting:
8.Contact us:
