Specifications
Motion Sensor Detector Module1.Original Manufacturer
2.MOQ 100 PCS
3.Delivery time:3-5 days
4.Free samples

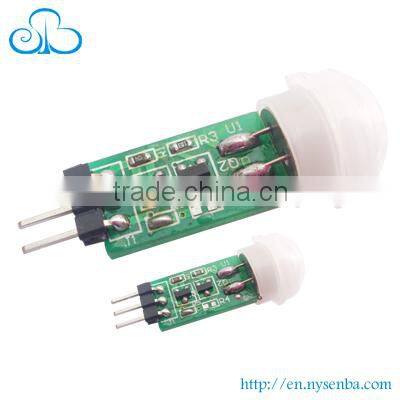

SB00412A-1 Adjust IR Pyroelectric Infrared PIR Motion Sensor Detector Module
Model NO.: SB00412A-1
General Information:
SB00412A-1 is the latest digital Infrared Human Motion Sensor Module which developed for human body detection. A digital PIR sensor combined with a fresnel lens is mounted on a compact size PCB, and resistance.IC is not needed any more. Digital output improve the performance.
Specifications for Motion Sensor Detector Module
- Compact size: 18*10 mm
- Supply current: DC2.7-12V
- Current drain :< 20UA
- Voltage Output: High level signal: 3V, Standby output is 0V
- High sensitivity
- Delay time: 2S-80min (Ajustable and customized by Customer)
- Sensitivity: Not Ajustable
- Light Sensor: (Cds Photocell) Can Not be Added
- Operation Temperature: -20-55°C

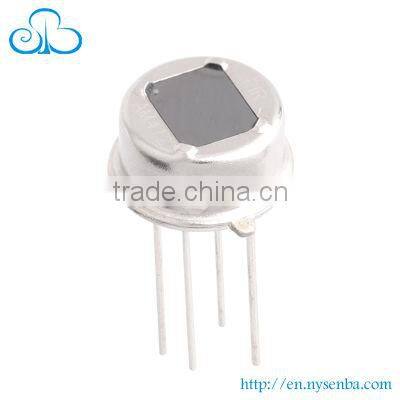

- Infrared sensor: dual element, low noise, high sensitivity (AM412)
- Detecting length: 3-5m
- Detecting Angle:100°
Application for Motion Sensor Detector Module :
Alarm detector,light switch, Motion light, Intellectualixed toys or appliance, Security system etc.
PIR Sensor: AM412 |
PIR Module: SB00412A-1
|
