Home > Products > Motion Detect Modules > Digital PIR Motion Sensor Module SB612A-02-001 Motion Module
Digital PIR Motion Sensor Module SB612A-02-001 Motion Module
- 100000 Piece / Pieces per Month
- ShenZhen
- T/T Credit Card
Product Details
Model Number: | SB612A-02-001 Motion Sensor Module | Type: | Logic ICs | Brand Name: | Senba |
Place of Origin: | Guangdong, China |
Product Description
Specifications
Motion Sensor Module1.Original Manufacturer
2.MOQ 100 PCS
3.Delivery time:3-5 days
4.Free samples are available
Digital PIR Motion Sensor Module SB612A-02-001 Motion Module
Model NO.: SB612A-2 Motion Sensor Module
General Information:

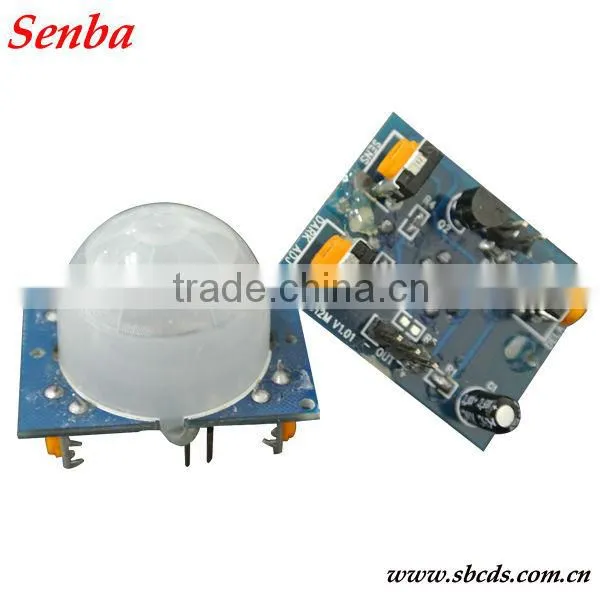

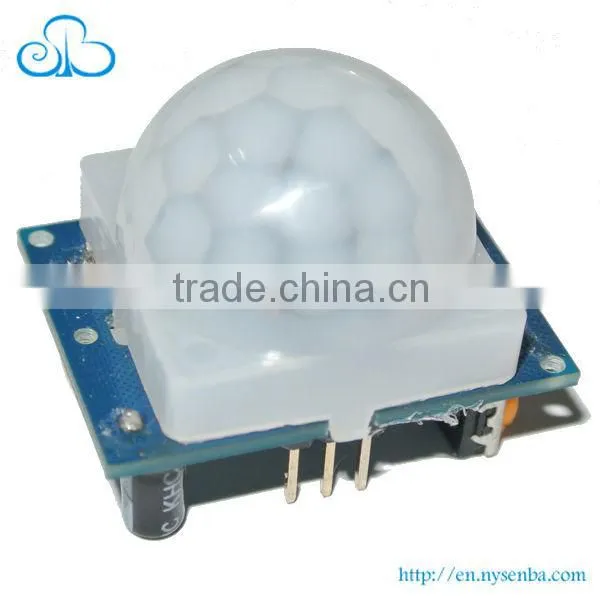

SB612A-02-001 is the latest digital sensor module which developed for human body detection. A digital PIR sensor combined with a fresnel lens is mounted on a compact size PCB, and resistance.IC is not needed any more. Digital output improve the performance.
Delay time, Lighting and sensitivity is adjustable. Customization is acceptable.
Specifications for Motion Detect Module:
- Compact size: 24*32 mm
- Supply current: DC2.7-24V
- Current drain :< 30uA
- Delay time: adjustable (2S-80 minute)
- Light Sensor: Cds Photocell (Can Not Be Added)
- Sensitivity: adjustable
- Detecting distance: ≤8m
- Detecting angle: ≤120°C
- TTL output
- Operation Temperature: -20°C-+55°C
- Infrared sensor: dual element, low noise, high sensitivity (AM612)
Lens information
Lens diameter: 23mm (default), detecting angle≤120 ° , detecting range<8M
Application for Motion Detect Module:
Alarm detector,light switch, Motion light, Intellectualixed toys or appliance, Security system etc.
PIR Sensor: AM612 → | PIR Module: SB00612A-2 |
