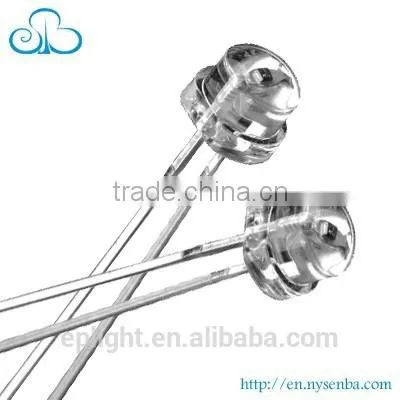

LS06-B Senba 5MM Straw-Hat Light Control Sensor With RoHS Replacing CDS Photocell

LS06-B Senba 5MM Straw-Hat Light Control Sensor With RoHS Replacing CDS Photocell thumbnail-1
LS06-B Senba 5MM Straw-Hat Light Control Sensor With RoHS Replacing CDS Photocell photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
senba
Model Number:
LS06-B 5
Contact Supplier Request Quote Chat Now
Nanyang Senba Optical Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name senba
Model Number LS06-B 5
Usage Ray Sensor
Theory Optical Sensor
Output Analog Sensor

Specification



Linear Light Sensor
1) Pb Free, Cd Free
2) RoHS
3) Replace Cds/LDR Sensor
4) Factory Price and Free Sample



LS06-B Senba 5MM Straw-Hat Light Control Sensor With RoHS Replacing CDS Photocell



Model No.:LS06-B  φ5 Straw-Hat



Light Sensor Application:

  1. Replacement of Photoresistor (CdS).
  2. Control of backlight brightness for LCD Monitors,TV sets,
  3. PDA ,Cameras and Mobile Phones
  4. Switch for lighting equipments and Toys
  5. Various Types of Infrared detection wquipment
  6. Various Types of Security Products

Light Sensor Feature:

  1. Linear output conforming to illuminance.
  2. Built-in optical filter for spectral response similar to that of the human eye.
  3. High Gain Photocurrent Amplifiers IC
  4. Temperature Stable.
  5. Low dark current and Low working Lux.
  6. RoHS Compliant / Pb-free / Cd-free

Light Sensor Specification:



  1. Size: 4.8*4.8mm
  2. Lens Color: Water Clear
  3. Collect Light Current(Vdd=5V, Ev=10Lux): 50uA
  4. Dark Current C-E(Vdd=5V, Ev=0Lux): <10uA
  5. C-E breakdown Voltage(100uA, IB=0): 70V
  6. E-C breakdown Voltage(100uA, IB=0): 7V
  7. Response: 450-1050nm
  8. Half Angle: 80°
