Product Description

Specifications

Analog Linear Coupling/Analog Optoisolator/Analog Optotransistor
Pure resistor and non-polarity output
Power isolation

Analog Linear Coupling/Optoisolator LCR0202/LCR0203

Analog Linear Optical Coupling is photoelectric component by inputting the different current to control the changes of resistance. It makes use of CdS and LED semi-conductor with rigorous selection, aging and test. The product is widely used by current input control and pure resistance with non-polarity output.Our company own the patent of manufacturing and the patent number is ZL02225334.3.

Characteristics

Pure resistor and non-polarity output .
Wide range of analog linear resistance, the low “on”resistance, high “off”resistance.
Simple circuit configuration suitable for DC and AC use.
Input to output isolation, and low distortion coupling.
Encapsulation with PPO high-temperature resistant material.

Typical Application
Acoustic protect and control.
Volume control and electric isolation coupling.
Light adjust and motor speed control.
Communication transmission and automatic control.

Specification

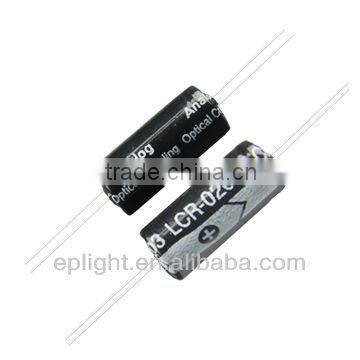

Model	LCR-0203
Encapsulation	Aluminum Alloy Columnar Package
Input Current	0-20mA, Max.40mA
Input Voltage	1.6-2.5VDC
Output Light Resistance	50Ω-1KΩ @20mA-0.01mA
Output Dark Resistance	1Ω-10MΩ @10 seconds off later
Response time	<2.5ms
Insulating Voltage	>2500VRMS
Working Frequency	<300KHz
Out-cell Resist Voltage	<50V
Dynamic Range	<100dB
DC Coupling Capacitance	<5pF
Max Power	100mw
Operating Temp.	-30--70°C
Storage Temp.	-40--80°C

Dimensions

Cylindric Diameter	6.0mm
Cylindric Long	13.5mm
Output Lead Length	27.5mm
Input Lead Length	25mm
Lead Diameter	0.45mm
Lead Gap	2.8mm
Input Polarity Sign	LED Anode-Lead
Ektexine Material	PVC

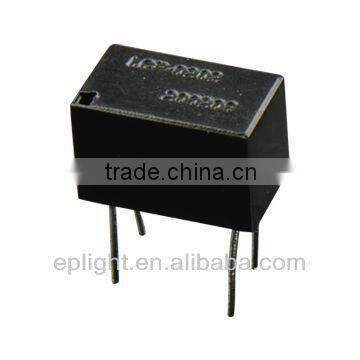

LCR-0203LCR-0202
