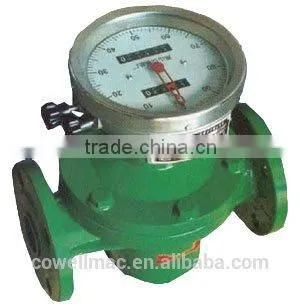

Oval Gear Meter with pointer (used in petroleum,chemicals)
- 3000 Unit / Units per Month
- shanghai for Oil Oval Gear Meter with pointer
- Credit Card
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | cowell | Model Number: | LC-50 |
Packaging Details
Carton for Oil Oval Gear Meter with pointer
Product Description
LC-50 Oval Gear Meter | Characteristics LC Series light oval gear flow meter, with innovative design and rational structure can be widely used in petroleum, chemical, pharmaceutical and public health sectors etc..Cast Iron, Cast Steel, Stainless Steel material available.
High accuracy, wide range of the flow, excellent repeatability; piral rotor rotating evenly, small vibration and longevity; Suitable for high viscosity of the liquid measurement ; Simple structure, small size and light weight; Easy to install; Reset to "0". |
Technical Specification | ||||||||
Mode | OGM-I-15 | OGM-I-20 | OGM-I-25 | OGM-I-40 | OGM-I-50 | OGM-I-80 | OGM-I-100 | |
DN (mm) | 15 | 20 | 25 | 40 | 50 | 80 | 100 | |
Min. Flow Rate m³/h | 0.3 | 0.3 | 0.6 | 1.6 | 5 | 6 | 10 | |
Max. Flow Rate m³/h | 1.6 | 3 | 6 | 16 | 25 | 50 | 80 | |
Accuracy % | +-0.3~+-0.5 | |||||||
Working Temperature°C | -10~80 | |||||||
Pressure Mpa | 1.0-6.3 | |||||||
Liquid Viscosity MPa.s | 2~75 | |||||||
Min. Scale Value L | 0.1 | 1 | 10 | |||||
Register Amount m³ | 999.99 | 9999.9 | 99999 | |||||
Packaging Data | |||||||
Mode | OGM-15 | OGM-20 | OGM-25 | OGM-40 | OGM-50 | OGM-80 | OGM-100 |
Packaging | 1pc/Wooden Case | ||||||
Net Weight | 7.5kgs | 8.5kgs | 15.6kgs | 18.5kgs | 30kgs | 44.5kgs | 72kgs |
Gross Weight | 9.5kgs | 10.5kgs | 18.1kgs | 21.5kgs | 33kgs | 48kgs | 77kgs |
Size cm | 18×12×23 | 20×12×24 | 24.5×18×25 | 25×18.5×28 | 34×23×33.5 | 56×26.6×34 | 42×31×40.5 |
- Widely used in Petroleum, Chemical, Medicine, Tranportation, food industry etc..
| ||
| Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition. | Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality; | We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty. |
FAQ
How to contact us?
Please add our webchat:y303154623y
online chat skype:yanchen287
Company Profile
Shanghai Cowell Machinery Co., Ltd. (Cowell) is a professional manufacturer of petroleum tank truck equipment, industrial flow meters and pumps in China.
Registered in Shanghai, and managed by a professional team, Cowell delivers quality, efficiency, and expertise to our clients worldwide, being dedicated to providing the below full line products:
1) Fuel and LPG equipment - positive displacement flow meters and pumps, loading and unloading meters and pump nozzles
2) Fuel and LPG dispenser components - LPG meters, pumps, nozzles, separators, manometers, solenoid valves, differential valves, hoses and other related products
3) Tank Truck Spare Parts - manhole covers, bottom valves, manual brackets, API adapters, vapor recovery adaptors and other related products
4) Ultrasonic flow meters, turbine flow meters, intelligence electromagnetic flow meters, target mode flow meters (for liquid, gas and steam - high and low temperature and normal temperature).
5) We also offer sourcing of other products and consolidate with ours' accourding to our customers' demand.
If you are interested in our products, please do not hesitate to contact us for further information.
