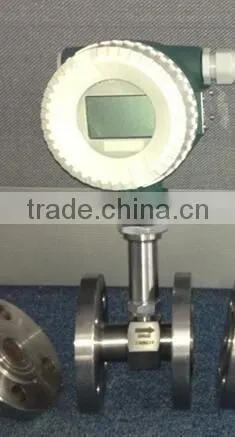

Small Flow Rate Turbine Flow Meter Small Flow

Name: Small Flow Rate Turbine Flow Meter Small Flow
Brand: Cowell
SKU: 106731485

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Cowell

Model Number:

LWG-4

Shanghai Cowell Machinery Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai for liquid Turbine Flow Meter samll flow

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Cowell

Model Number LWG-4

Digital Turbine Flow Meter

Description:

Turbine Flow Meter is a main type of Impeller Flow meters also including the Anemoscope and Water meter.

It is made up of Sensor and Conversion-Show.

The Sensor reacts to the average velocity of fluid with multi-blades rotor so as to speculating the flow value and the accumulative flow value.

Nominal Diameter(mm) & Connection method	4,6,10,15,20,25,32,40 (tread connection) 15,20,25,32,40 (tread and flange connection) 50,65,80,100,125,150,200 ( flange connection)
Accuracy Class	Regular accuracy ±1%R, ±0.5%R, Highest accuracy ±0.2% R
Measurement Range Rate	1:10,1:15,1:20
Instrument material	304 stainless steel; 316L stainless steel; etc.
Medium Temperature(°C)	-20 ~+120 °C
Ambient Conditions	Temperature:-10~+55°C, Relative Humidity: 5%~90% Atmosphere Pressure:86~106Kpa
Signal Output	Sensor: pulse frequency signal, low level≤0.8V high level≥8V. Transmitter: current signal 4~20mA DC two wires
Supply Power	Sensor: +12V DC, +24V DC (option) Transducer: +24V DC Scene display type meter: 3.2V Lithium cell
Signal Transmission Line	STVPV 3×0.3 (three wires), 2×0.3(two wires)
Transmission Distance	≤1000m
Signal Line Interface	Internal thread M20×1.5
Explode-proof Class	ExdIIBT6
Protection Class	IP65

Diameter (mm)	Regular Flow rate (m3/h)	Expanding Flow Rate(m3/h)	Regular TolerancePressure(Mpa)	Special TolerancePressure(Mpa)
DN4	0.04—0.25	0.04—0.4	6.3	12, 16, 25
DN6	0.1—0.6	0.06—0.6	6.3	12, 16, 25
DN10	0.2—1.2	0.15—1.5	6.3	12, 16, 25
DN15	0.6—6	0.4—8	6.3, 2.5(flange)	4.0, 6.3, 12, 16, 25
DN20	0.8—8	0.45—9	6.3, 2.5(flange)	4.0, 6.3, 12, 16, 25
DN25	1—10	0.5—10	6.3, 2.5(flange)	4.0, 6.3, 12, 16, 25
DN32	1.5—15	0.8—15	6.3, 2.5(flange)	4.0, 6.3, 12, 16, 25
DN40	2—20	1—20	6.3, 2.5(flange)	4.0, 6.3, 12, 16, 25
DN50	4—40	2—40	2.5	4.0, 6.3, 12, 16, 25
DN65	7—70	4—70	2.5	4.0, 6.3, 12, 16, 25
DN80	10—100	5—100	2.5	4.0, 6.3, 12, 16, 25
DN100	20—200	10—200	2.5	4.0, 6.3, 12, 16, 25
DN125	25—250	13—250	1.6	2.5, 4.0, 6.3, 12, 16
DN150	30—300	15—300	1.6	2.5, 4.0, 6.3, 12, 16
DN200	80--800	40—800	1.6	2.5, 4.0, 6.3, 12, 16


Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition.	Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;	We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty.
