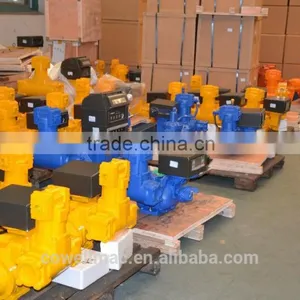

Help Center2" 50mm Heavy Fuel Oil HFO Flow Meter by Cowell
Related Products
-
150mm 6 Inch Digital Diesel Fuel Flow Meter WaterNegotiableMOQ: 1 Piece -
6 Inch Fuel PD Flow Meter Water With Register CounterNegotiableMOQ: 1 Piece
-
Cowell Digital Positive Displacement Flow Meter Metering Fuel,chemical, DieselNegotiableMOQ: 1 Piece
-
Diesel Fuel PD Flow Meter With PrinterUS$ 1,580 - 1,860MOQ: 1 Set
-
LPGX Filter& Air Eliminator for Fuel Flow Meter by CowellNegotiableMOQ: 1 Piece
|

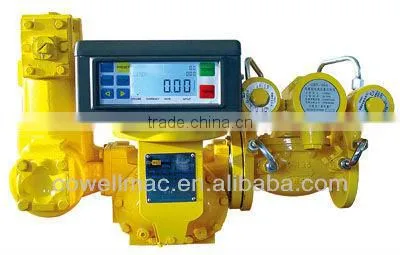

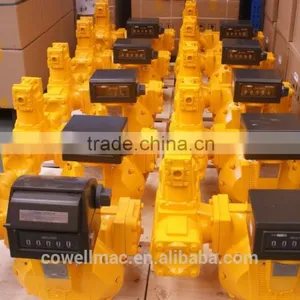

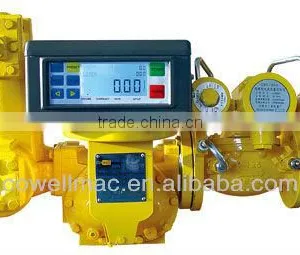

M-50-KPX-1 meter with mechanical register,preset regiset, preset valve, strainer&air eliminator |
Characteristics Excellent stepless adjusting mechanism allows a micro adjustment on the meter; High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow; Low maintenance, no metal-to-metal contact in measuring chamber, long life service; Low pressure loss, a true gravity flow meter; Accuracy regardless of pressure fluctuations, temperature variation, viscosity. |
| Model | M-40-1 |
M-50-1 |
M-50H-1 |
M-80-1 |
M-80H-1 |
M-100-1 |
M-100H-1 |
M-150-1 |
M-150H-1 |
| Size | 40mm / 1.5” |
50mm / 2 " |
80mm / 3 " |
100mm / 4 " |
150mm / 6 " |
||||
| Flow Range (L/Min) | 25-250 |
38-380 |
55-550 |
75-750 |
115-1150 |
130-1300 |
170-1700 |
225-2250 |
300-3000 |
| Volume /Rev. | 0.309L |
0.681L |
1.839L |
5.102L |
9.507L |
||||
| Max. Pressure | 10Bar/150PSI |
25Bar/350PSI |
|||||||
| Accuracy | ±0.2% |
||||||||
| Repeatability | ≤0.05% |
||||||||
| Standard Measurement | Liter / US Gallon/IMP Gallon |
||||||||
| Viscosity | 30SSU~1,500,000SSU |
||||||||
- Refined petroleum products; A wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,. Aviation gasolines and jet fuels;
- Treated waters (deionized, demineralized, and potable);
- Chlorinated solvents and general solvent metering;
- Acid pH liquids;
- Liquefied petroleum gas(LPG);
- Crude oil, also for heated and/or viscous liquids;
- Oil or water based latex products, polyester resins, and adhesives (neutral pH), also for meteringherbicides and nitrogen fertilizer solutions;
- Herbicide;
- Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids
- Abrasive liquids
Automotive; Adhesives; Agriculture; Asphalt ; Aviation fueling ; Animal feeds; Beverage; Cosmetics ;Chemical processing; Concrete Add mixtures; Dairy; Liquid fertilizers; Food processing ; Fuel oil delivery; General industrial; Hydrocarbon processing; Liquefied gases; Lube oils; Marine; Paint and varnish; Petroleum marketing; Petroleum production ; Pharmaceutical; Printing ink; Pulp &paper;Refining commercial Solvents; Recycling Railroad ; Textile.
| ||
| Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition. | Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality; | We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty. |
