16 cores Armored Fiber Optic Patch Cable
- 600000 Kilometer / Kilometers per Month
- shenzhen
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HX | Model Number: | GYJTA |
Product Description
Specifications
type: for outdoor

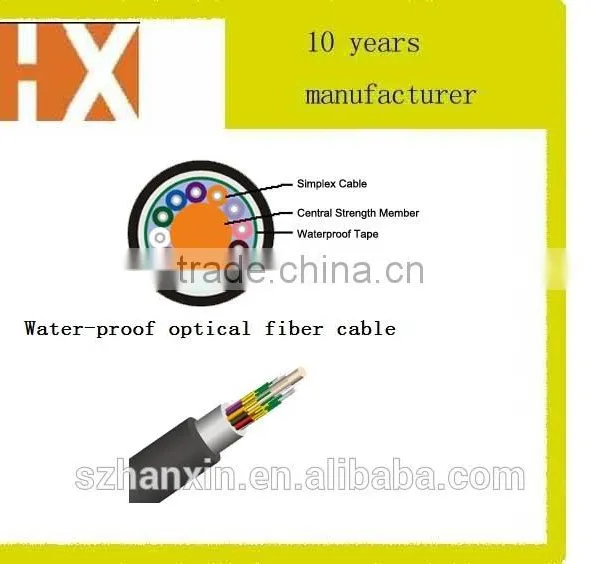

1. Description
- 2.0mm, 2.4mm or 3.0mm subunit
- GYJTA Outdoor Optical Fiber Cable
- Fiber: can choose SM 9/125 or MM: 62.5/125 ,50/125, OM1,OM2,OM3,OM4
- Low dispersion and attenuation
- for outdoor with Aluminum armored
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
(+20°C) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km |
Note: A:The color of fiber in loose tube is arranged from NO.1 color successively.
B:Other color indentifications available on request
Item | Description | ||||||
Fiber Type | G.652 (G.655 or G.657 SM Fiber, OM3 or OM4 MM fiber, or another types of fiber) | ||||||
Jacket Material | PE (Polyethyene), or other contracted material | ||||||
Fiber Count (core) | 2 | 4 | 6 | 8 | 10 | 16 | |
Outer Diameter (mm) | 9.8 | 9.8 | 10 | 11.7 | 13.3 | 16 | |
Cable Weight (kg.km) | 54 | 60 | 81 | 108 | 134 | 183 | |
Fiber Color | 12 different colors according to the chromatogram | ||||||
Max. Tension (N) | Short Term | 400 | 400 | 600 | 800 | 1000 | 1200 |
Long Term | 200 | 200 | 300 | 400 | 500 | 600 | |
Max. Crushing Resistance (N/100) | Short Term | 1000 | |||||
Long Term | 500 | ||||||
Min. Bend Radius (mm) | Dynamic | 20D (D is the outer diameter of the cable) | |||||
Static | 10D | ||||||
Temperature (°C) | Storage | -20 ~ 60 | |||||
Temperature | -20 ~ 60 |
5. Packing& Shipping
- packing in Wooden drums, Polywooden drums or other drums according to clients' need
- shipping by sea or air
6. Services
Sample: Can provide by our factory
prist list: can provide by our salesperson
after-sales: one by one
contact:
Skype: Candy.Foo2
Mobile: +0086-13519684370
7. Introduction
Shenzhen Hanxin Communication Optical Fiber Cable Co., Ltd is a factory who mainly produce optical fiber products:
1.Outdoor Fiber Optic Cable(GYXTW,GYFTY,GYTA,GYTS,ADSS,GYXTC8Y,GYTA53 etc.)
2.Indoor Fiber Optic Cable(Simplex/Duplex indoor cable,distribution box,break-out cable,waterproof cable etc.)
3.FTTH(bow-type access cable,self-supporting bow-type cable)
4.Fiber Patch Cord(SC,SC,LC,FC,MTRJ,MU etc.
5.Accessories:Fiber Patch Panel,Fiber Splice Closure,Fiber Media Converter,Fiber Adapter
8. Certificate
