Specifications
1.5 pet bottles blowing moulding machine1, full auto
2, 1800bph
3, 250ml 300ml 1500ml
This is 1.5 pet bottles blowing moulding machine , blow moulding machine PET bottle.
1. Brief introduction
1, Adopt automatic transmission control method to reduce staff, reduce costs, improve quality and profit.
and increase profits provide a guarantee.
2, We used imported man-machine interface control to make sure it has performance accuracy, strong stability, easy operation.
3, Detection devices made of imported components, high control precision, fast response.
4, We adopted infrared lamp heat, so the penetration, uniform heating, 40% electricity savings. The reflector width and height can be adjusted for different structures of the performs can be heated.
5, With automatic alarm and automatic fault detection to determine function.
6, We chose and used Germany, Japan, Taiwan, Korea, pneumatic components to make sure our product with high sensitivity and switching speed, low failure rate, safe and reliable operation.
7, The air route design: Action and blowing into two parts, to
meet the blow, the action of different air pressure requirements for high pressure blowing products.
8, The unique clamping structure has strong clamping power. It is smooth, fast opening and closing mold, easy installation and replacement for mould.
9, The most critical is that we have a good after-sales service.
2, machine Parts
1)Japan SMC and Taiwan AIRTAC cylinder, valve.
2)America PARKER blowing high-pressure valve,
3)5.7 inch color touch screen and Japan MITSUBISHI PLC control program, infrared temperature control.
4)Japan OMRON electron optics to be automatic detection. Automatic alarm.(Patent blowing method, replacing of the mold only need 15 minutes). Machine designed to automate the entire computer.
3. machine Prameter
MODEL |
UNIT |
LWB2000 |
|
CONTAINER |
ntainer volume |
ML |
1500 |
Max. neck diameter |
mm |
38 |
|
Max. container diameter |
mm |
95 |
|
Max. container height |
mm |
320 |
|
Number of cavities |
2 |
||
Theoretical output |
BPH |
1800-2000 |
|
ELECTRICITY SYSTEM |
Installed power |
Kw |
18 |
Max. heating power |
Kw |
16 |
|
COMPRESSED AIR SYSTEM |
Operating pressure |
Mpa |
0.7 |
Low pressure Air consuming |
M3/min |
2.0 |
|
Blowing pressure |
Mpa |
3.5 |
|
High pressure Air consuming |
M3/min |
1.5-2.0 |
|
Use mould Booster |
NO |
||
CHILLED WATER |
Pressure |
Mpa |
0.3-0.5 |
Temperature |
°C |
10-12 |
|
Flow rate |
L/min |
30 |
|
MACHINE |
Size(L*W*H) |
m |
3.2X1.4X1.9 |
Weight |
Kg |
3000 |
|

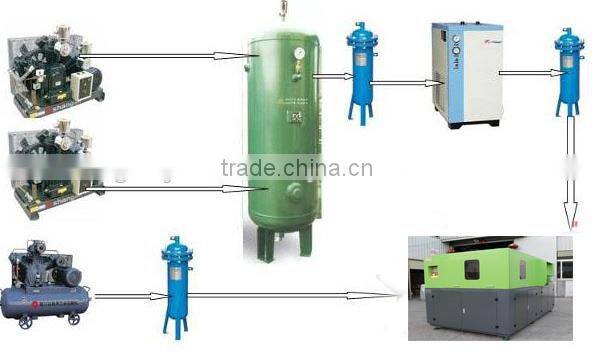

4, Flow chart from PET preform to bottles machine Prameter

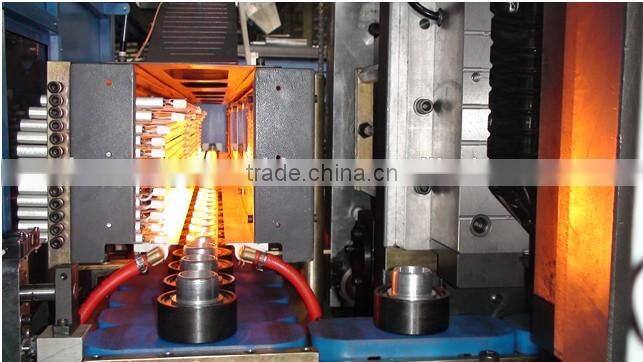

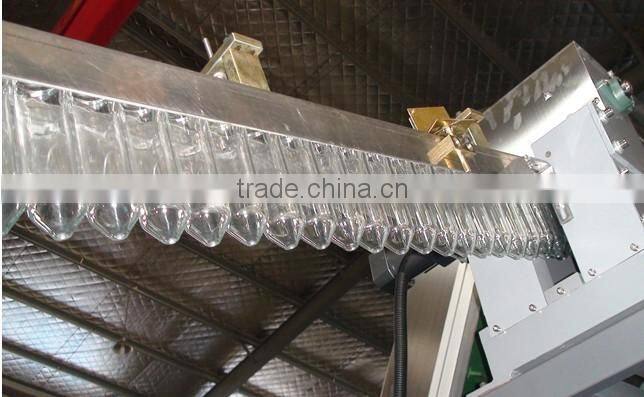

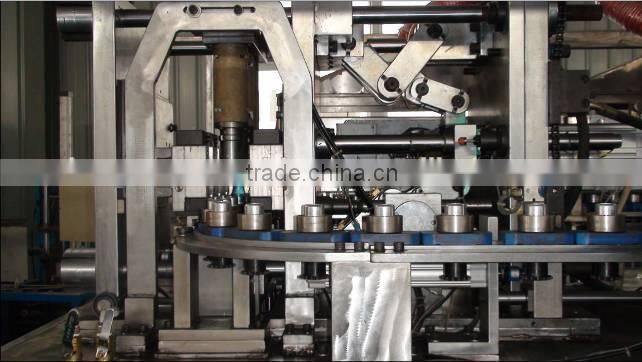

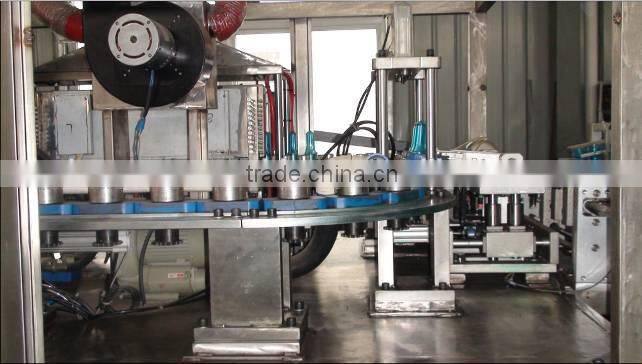

5, machine photos.

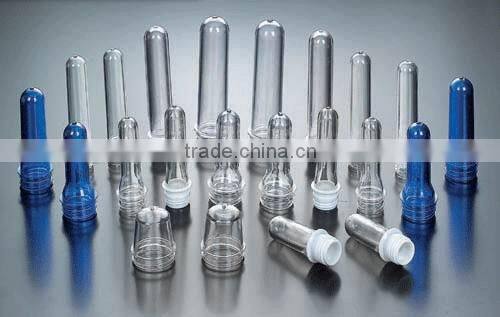

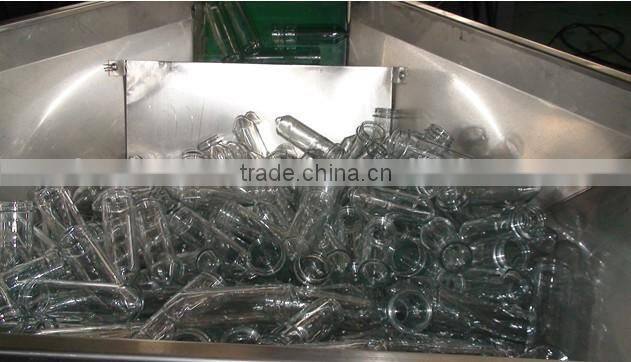

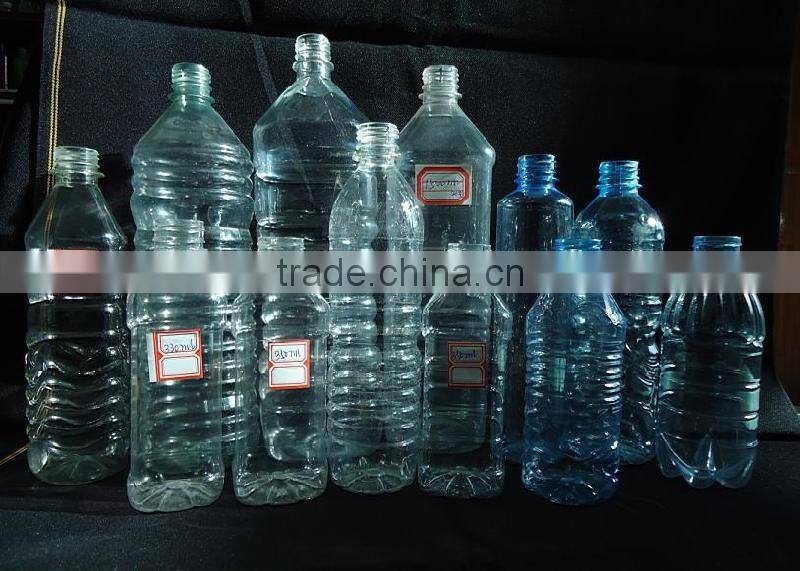

6, PET bottle preforms and bottles
More details about automatic pet bottle blow molding machinery , please feel free to contact us , thanks.
