pet blow molding machine manufacturers
1. Brief introduction
1.Stable performance with advanced PLC.
2.Conveying preforms by hands.
3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4.High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
5.High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
6.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
7.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8.Strong clamping force double crank links to lock the mold.
9.Two ways of operating: automatic and manual.
10.Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
11.Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
12.Contamination is avoided for the bottle body.
13.Ideal effect of the chilling with the chilling system.
14.Easy installation and starting
15.Low rejection rate: less than 0.2 percent.
2. machine Prameter
ITEM |
UNIT |
LWB-J |
|
CONTAINER |
ntainer volume |
L |
6 |
Max.neck outer diameter |
mm |
140 |
|
ntainer diameter |
mm |
200 |
|
ntainer height |
mm |
350 |
|
Number of cavity |
pcs |
1 |
|
Theoretical output |
bph |
600-1000 |
|
ELECTRICAL |
Max.heating power |
kw |
33 |
Installed power |
kw |
34 |
|
COMPRESSED AIR |
Operating pressure |
Mpa |
0.7 |
Low pressure air consuming |
L/min |
1000-1200 |
|
Blowing pressure |
Mpa |
<3.5 |
|
High pressure air consuming |
L/min |
1000-1500 |
|
CHILLER WATER |
Pressure |
Mpa |
0.5-0.6 |
Temperature |
degree |
10 |
|
Flow rate |
L/min |
30 |
|
MACHINE DIMENSION |
Size(L*W*H) |
m |
2.85×2.07×2.15 |
Weight |
kg |
2000 |
|

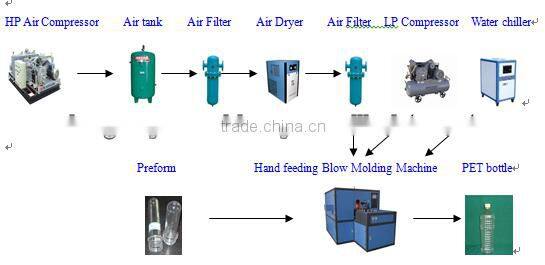

3, Flow chart from PET preform to bottle

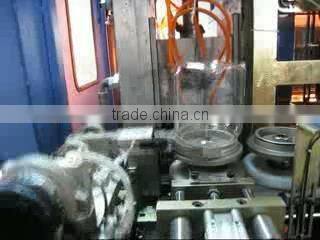

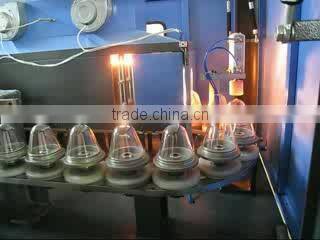

4, hand feeding jar pet blow molding machine production
More information regarding hand feeding jar pet blow molding machine , please contact us for free.
