Specifications
1L PE shampoo bottle making bottle machine1, automatic, no need worker.
2, HDPE, PP, PVC plastic
3, mold with deflashing
This is 1L PE shampoo bottle making bottle machine , A wide variety of materials can be used for the shampoo bottle making equipment . which are suitable for producing 100ml to 5L PE bottle. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.
1L PE shampoo bottle making bottle machine process
1L PE shampoo bottle making bottle machine specification
Unit |
Item |
Specification |
Description |
|
Extruding system
|
Screw diameter |
Φ75mm |
Mixing model |
Max. Product Volume |
1L |
Double station and tetra die-head |
|
Screw L/D |
24:1 |
|
|
Material of screw and barrel |
|
38CrMoALA |
|
Plasticizing capacity |
90KG/Hr |
Based on HDPE 5502 |
|
Extruding method |
|
Inverter motor, hardness tooth surface gear box |
|
Driving power |
30KW |
|
|
Screw revolution |
10—90rpm |
|
|
Heating zones |
3 |
Temperature module from Mitsubishi PLC |
|
Heating power |
10KW |
Solid state (SSR) and plug connection for all heaters |
|
Blowers |
3 |
|
|
Cooling function |
Yes |
Cooling water for feeding zone and gear box |
1L PE shampoo bottle making bottle machine extruder- die head

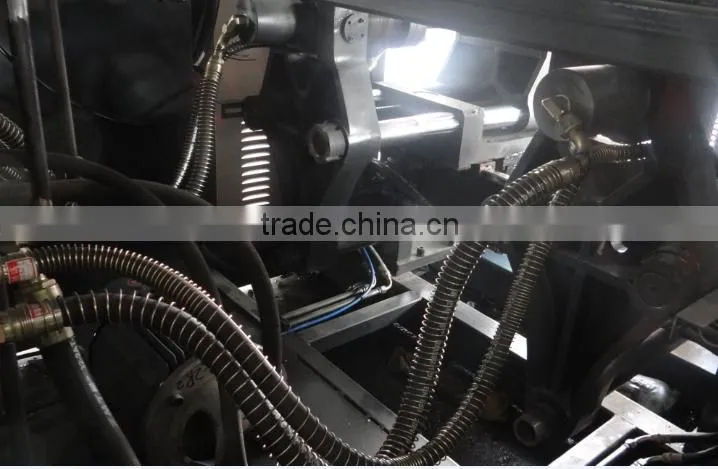

1L PE shampoo bottle making bottle machine plastic plasticing part

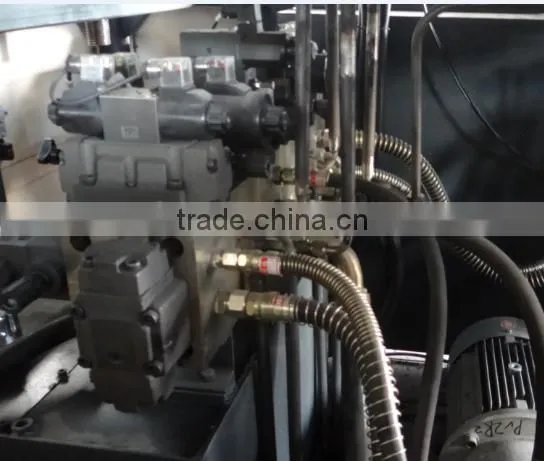

1L PE shampoo bottle making bottle machine hydraulic part
1L PE shampoo bottle equipment product making step
shampoo bottle making equipment component brand
shampoo bottle making equipment loading
Any inuqiry about blow molding machine, 1L PE shampoo bottle equipment , please contact us! thanks!
