Specifications
shampoo bottle making equipment1, automatic, no need worker.
2, HDPE, PP, PVC, PC, ABS plastic
3, mold with deflashing

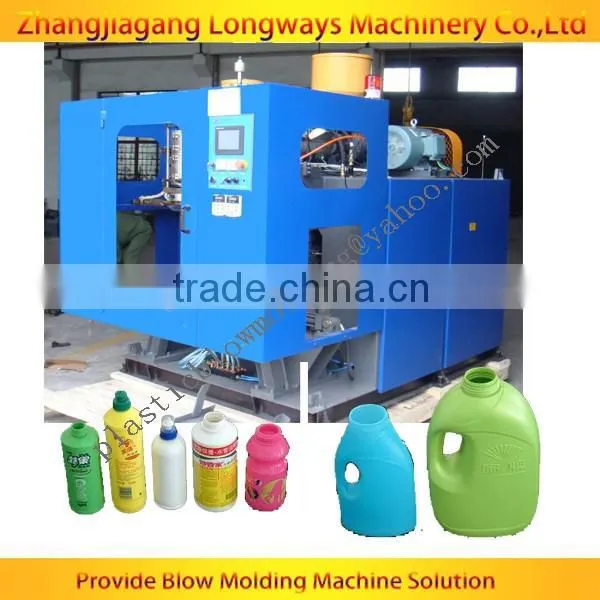

The shampoo bottle making equipment , A wide variety of materials can be used for the shampoo bottle making equipment . which are suitable for producing 100ml to 5L PE bottle. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.
Plastic shampoo bottle making equipment process
Plastic shampoo bottle making equipment specification
Unit |
Item |
Specification |
Description |
|
Extruding system
|
Screw diameter |
Φ75mm |
Mixing model |
Max. Product Volume |
1L |
Double station and tetra die-head |
|
Screw L/D |
24:1 |
|
|
Material of screw and barrel |
|
38CrMoALA |
|
Plasticizing capacity |
90KG/Hr |
Based on HDPE 5502 |
|
Extruding method |
|
Inverter motor, hardness tooth surface gear box |
|
Driving power |
30KW |
|
|
Screw revolution |
10—90rpm |
|
|
Heating zones |
3 |
Temperature module from Mitsubishi PLC |
|
Heating power |
10KW |
Solid state (SSR) and plug connection for all heaters |
|
Blowers |
3 |
|
|
Cooling function |
Yes |
Cooling water for feeding zone and gear box |
Plastic shampoo bottle making equipment extruder- die head
Plastic shampoo bottle blow moulding machine plastic plasticing part
shampoo bottle making equipment product making step
shampoo bottle making equipment component brand
shampoo bottle making equipment loading
Any inuqiry about blow molding machine, blow moulding machine, please contact us! thanks!
