[150Mbps Wireless N ADSL2+ Modem Router]
1. 4 ports 150Mbps wireless modem router
2. High quality, good price and fast delivery
3. OEM since 1995

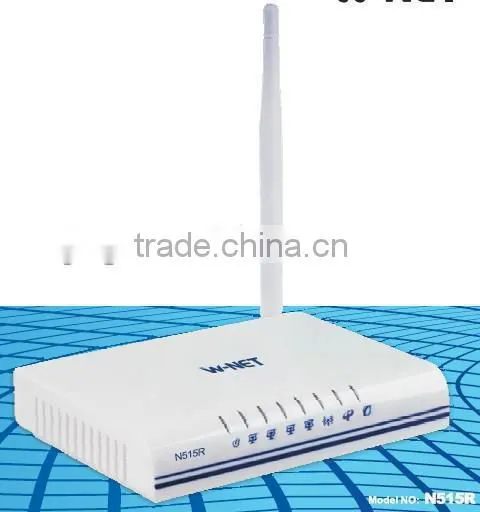

N515R
Features:
·IEEE 802.11n compliance. Backwards compatible with 802.11b/g
·ADSL,ADSL2,ADSL2+ compliance (up to 24Mbps downstream and 1Mbps upstream)
·Integrates ADSL2/2+ Modem ,Wireless router, Wireless access point, Four-ports switch and firewall in one
·1T1R MIMO , wireless rates of up to 150Mbps
·4x10/100Mbps LAN Port, 1 RJ11 Port for ADSL connection
·1x4dBi Fixed Antenna
·MAC Address Filter
·QoS, DHCP Server/Relay, NAT, UPnP support
·Dynamic DNS, DMZ support
·Supports 64/128-bits WEP, WPA/WPA2 Encryption
Specifications
Standard |
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b ADSL,ADSL2, ADSL2+ IEEE 802.3,IEEE 802.3u |
Interface |
LAN 4 10/100M Auto MDI/MDIX RJ45 port 1 RJ11 port |
Frequency Range |
2.4GHz-2.4835GHz |
Radio Data Rate |
150M |
Channel |
1~11 (USA, Canada) ; 1~13 (Europe) ; 1~14 (Japan) |
Spread Spectrum |
DSSS |
Modulation |
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) |
Transmission Distance |
Indoor up to 100m , outdoor up to 300m (it is limited in an environment) |
Receive Sensitivity@PE |
11n : -70dBm@10% PER 11g : -70dBm@10% PER 11b: -85dBm@8% PER |
Transmit Power |
17dBm |
Antenna plus |
1x4dBi Fixed Antenna |
Data Security |
64/128-bits WEP;WPA/WPA2 |
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Operating Humidity: 10%~90%RH (non-condensing) |
Power |
9V/ 1A |
Dimensions |
170mmx120mmx20mm |
Safety & Emission |
FCC, CE |

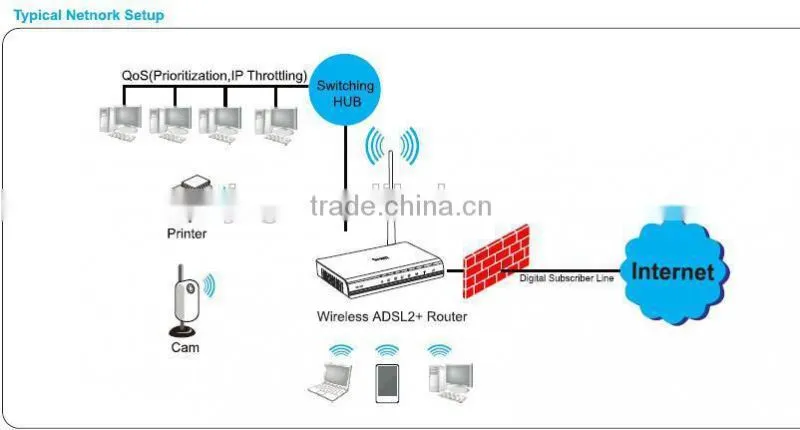

Network Configuration:
Our workshop:
