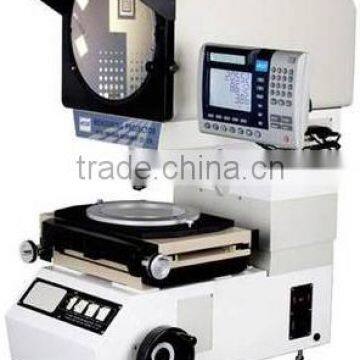

JT3025A 300mm Digital Vertical Profile Projector
- 1 Set / Sets per Month
- Shanghai /Guangzhou
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Jaten | Model Number: | JT3025A |
Product Description
Description:
- 300mm diameter screen with digital protractor;
- Projector body lifting system to focus;
- Precision movement work-stage;
- Geometric multifunction data processing system upgrade to DRO DP300;
- Built-in Mini-printer;
- Available 10x,20x,50x,100x objective, rotary table, foot-switch, edge detector, etc.
Specifications:
Reverse Image | JT3015A | JT3020A | JT3025A |
Obverse Image | JT3015AZ | JT3020AZ | JT3025AZ |
Metal Stage Size | 354X228mm | 450 x 280mm | 450X280mm |
Glass Stage Size | 210 x 160mm | 306 x 196mm | 306x196mm |
Stage Travel: X and Y-axis | 150 x 100mm | 200 x 100mm | 250X150MM |
Stage Travel: Z-axis | 100mm (for focusing) | 100mm (for focusing) | 100mm(for focusing) |
Accuracy | ≤3+L/200(um) | ||
Resolution of X and Y-scale | 0.0005 mm | ||
Screen | Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle) | ||
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01° | |||
Digital Readout | DP 300 (Multifunctional Data Processing System | ||
Illumination | Surface and Contour Illumination:24v/150w halogen lamp (adjustable) | ||
Cooling System | Forced Cooling (3-axis-fans) | ||
Power Supply | AC110V/60Hz; 220V/50Hz, 650W | ||
Dimension (D×W×H) | 760 x 530 x 1100mm | 760 x 530 x 1100mm | 760 x 530 x 1100mm |
Packing Dimension (L×W×H) | 1540 x 790 x 1500mm | 1540 x 790 x 1500mm | 1540 x 790 x 1500mm |
Gross/Net Weight | 230/210Kg | 260/240Kg | 290/260kg |
Standard Delivery:
Product Name | Product Name |
10X Objective | Screen Clamp Device |
Transmitted lens | Operation Manual |
For more infomation , please check on :
