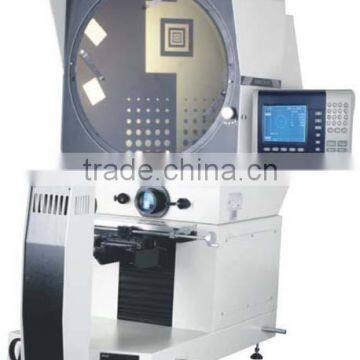

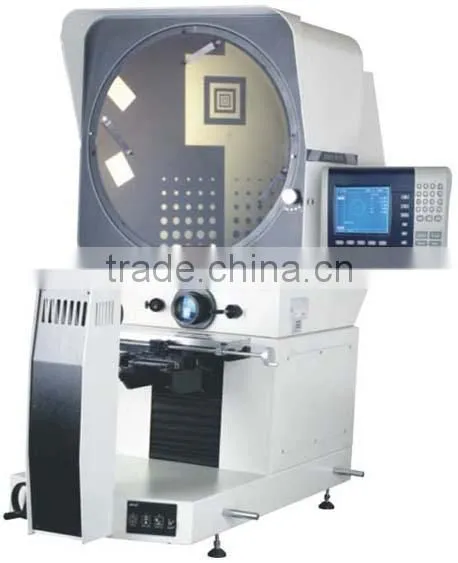

HB24-3015 600mm Digital Horizontal Profile Projector

Name: HB24-3015 600mm Digital Horizontal Profile Projector
Brand: Jaten
SKU: 106648591
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Jaten

Model Number:

HB24-3015

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Jaten

Model Number HB24-3015

HB24 Product Features:

600mm diameter screen with digital protractor;
300x150mm precision movement work-stage, 300x200mm optional;
Work-stage sway range between 15°;
Halogen profile and fiber surface illumination adjustable;
Geometric multifunction data processing system DRO DP300;
Built-in Mini-printer;
Available 10x,20x objective rotary table, working cupboard and foot-switch, etc.

Specifications:

Reverse Image	HB24-3015
Obverse Image	HB24-3015Z
Metal Stage Size	455 x 126mm
Stage Travel: X and Y-axis	300 x 150mm
Stage Travel:Y-axis	125mm (for focusing)
X and Z Linear Resolution	0.0005 mm
Sway Range	±15°
Accuracy	≤3+L/200(um)
Screen	Diameter :Ø625mm,Effective Range ≥ Ø600(with “* ” Reticle)
Screen	Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital Readout	DP 300 (561-301) Multifunctional Data Processing System
Illumination	Contour illumination:24v/150w (halogen Lamp )
Illumination	Surface illumination:21v/150w (Optical Fiber)
Power Supply	AC110V/60Hz; 220V/50Hz, 650W
Dimension (D×W×H)	1620 x750 x 1400mm
Packing Dimension (L×W×H)	1790 x 890 x 1520mm
Gross/Net Weight	300/250Kg
