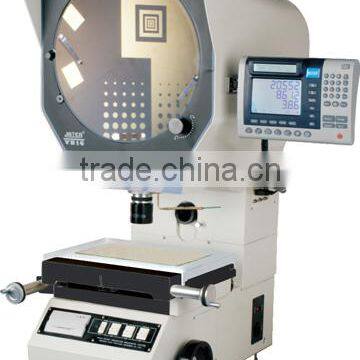

VB16-2515Z 400mm Digital Vertical Profile Projector
- 1 Set / Sets per Month
- Shanghai/Guangzhou
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Jaten | Model Number: | VB16-2515Z |
Product Description
Product Features :
l 400mm diameter screen with digital protractor;
l Projector Body lifting system to focus;
l 250X150mm precision movement work-stage;
l Halogen profile and surface illumination adjustable;
l Geometric multifunction data processing system upgrade to DRO DP300;
l Built-in Mini-printer;
l Available 10x,20x,50x objective, rotary table, foot-switch, etc.
Specifications:
Reverse Image | VB16-2515 |
Obverse Image | VB16-2515Z |
Metal Stage Size | 408 x 308mm |
Glass Stage Size | 305x 197mm |
Stage Travel: X and Y-axis | 250 x 150mm |
Stage Travel: Z-axis | 100mm (for focusing) |
Accuracy | ≤3+L/200(um) |
Resolution of X and Y-scale | 0.0005 mm |
Screen | Diameter :Ø425mm,Effective Range ≥ Ø400(with “* ” Reticle) |
Rotary Range: 0~360° ; Resolution of Rotary Indicator: 1’ or 0.01° | |
Digital Readout | DP 300 Multifunctional Data Processing System |
Illumination | 24v/150w halogen lamp (adjustable) |
Cooling System | Forced Cooling (3-axis-fans) |
Power Supply | AC110V/60Hz; 220V/50Hz, 400W |
Dimension (D×W×H) | 868 x 556 x 1163mm |
Packing Dimension (L×W×H) | 1540 x 790 x 1500mm |
Gross/Net Weight | 260/220Kg |
Standard Delivery:
Product Name | Product Name | Product Name |
Digital Readout DP300 | 10X Objective | Screen Clamp Device |
Built-in Mini-printer | Transmitted lens | Operation Manual |
Optional accessories:
Product Name | Product Name | Product Name |
Measuring Software | Rotary Table | 5x/100x Objectives |
20X Objective | 50X Objective | Printer Paper |
Holder Clamp | V-shape Clamp | Swivel Center Support |
Working Cupboard | Foot-switch | Standard Block |
