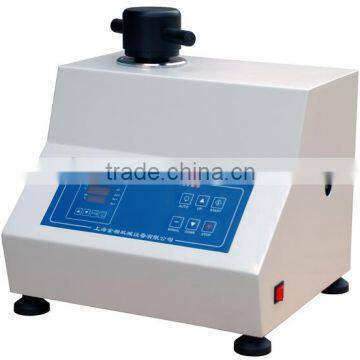

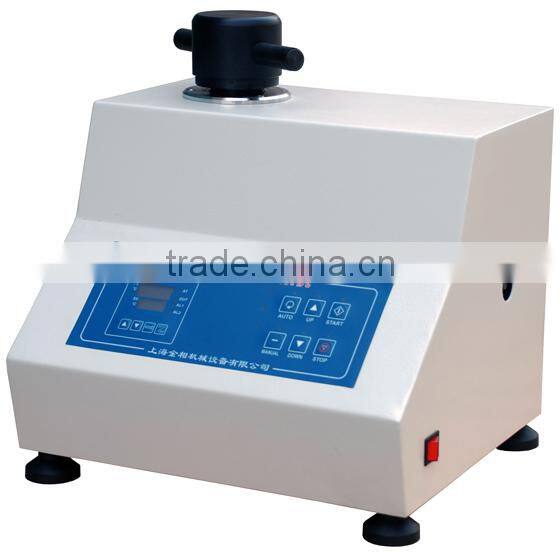

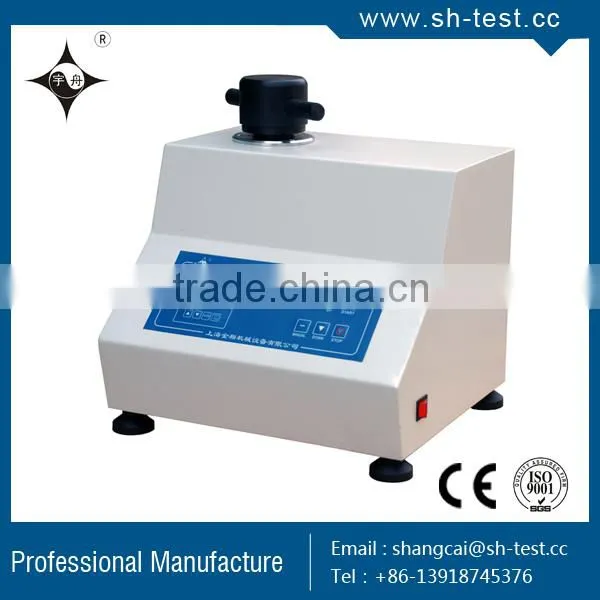

ZXQ-1Automatic Metallurgical Sample Mounting Press
Description:
l Automatic Metallographic Sample Mounting Press is used to mosaic small specimens, specimens in irregular shapes, or specimens which are not easy to take up-the preceding process before grinding and polishing metallographic or rock specimens.
l The mosaic operation serves to facilitate the grinding and polishing operations of the specimens and the routine observation of the composition of the material under the metallographic microscope.
l The machine is heated, and intensified with pressure automatically. After the formation of the specimen under pressure, it stops the operation and discharges the pressure also in an automatical way.
l With another press of the knob, the machine automatically turns up the specimen, which may be taken away. Note: It is only for the hot solid materials (such as urea-formaldehyde molding powder and bakelite powder) with the temperature automatically regulated and controlled.
Specification:
l Formed under pressure: φ22mm, φ30mm, φ45mm
l Heater: 220V 650W
l Total Electric Power: 1000W
l Total Dimension: 380×350×420mmNet Weight: 50Kg
