Help CenterZXQ-2 Mounting Press
Related Products
Description:
l For metallographic rock phase sample analysis, mosaic is the first step in the sample preparation process, especially for some difficult holding tiny samples, irregularly shaped samples, or the need for automatic grinding and polishing samples, the mosaic is an important step before sample preparation.

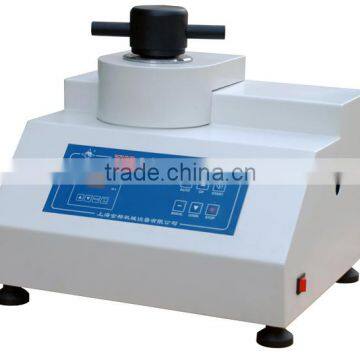

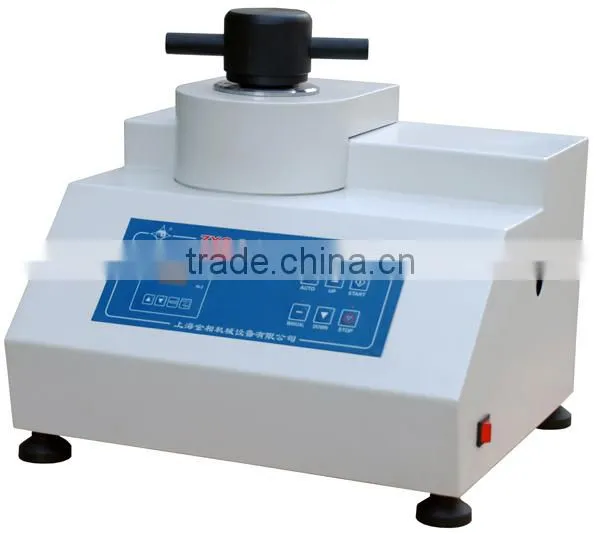

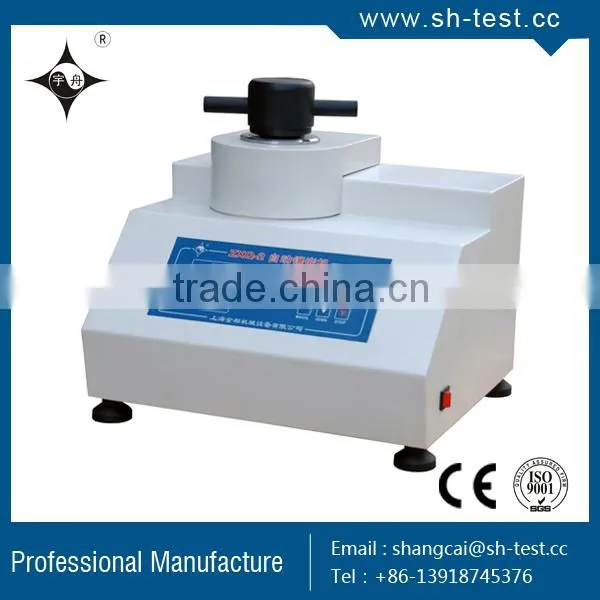

l ZXQ-2 automatic metallographic sample mounting press is an advanced automatic sample mosaic equipment, controlling the whole mosaic process by program, one-touch operation of heating, pressurization, loading, cooling, unloading process.
l ZXQ-2 automatic metallographic specimen mounted machine sent mosaic program for curing, especially for the thermoset material, such as electric jade powder, bakelite powder material.
l ZXQ-2 automatic metallographic sample mounting press has the characteristics of machine bulls, by replacing the steel die sets, free to choose φ22, φ30, φ45 mosaic size. Therefore it has broad applicability.
l Using ZXQ-2 automatic metallographic sample mounting press, your sample work will be more easily and with less effort, mosaic quality will be better and more stable.
Specification:
l Sample repression Specifications: Φ22mm, Φ30mm, Φ45mm
l Heater: 650W, 220V
l Total Power supply: 1000W
l Dimension: 380 × 350 × 420mm
l Net Weight: 50Kg
