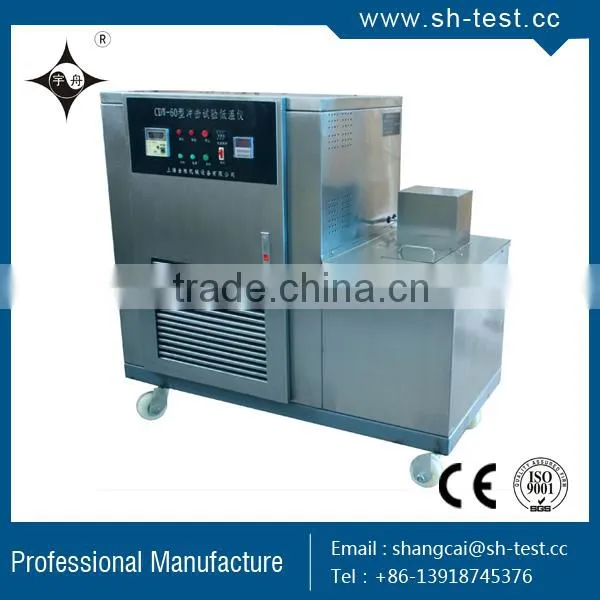

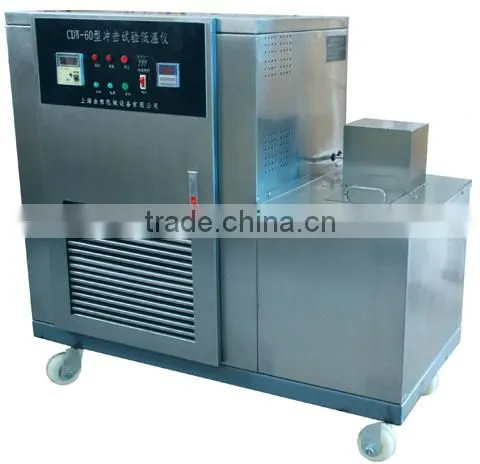

Help CenterCDW-60 Impact Test Low Temperature Instrument
Related Products
Description:
l CDW60 impact test low temperature instrument is with interior work surface and shell manufactured 1Cr18Wi9Ti stainless steel plate.
l The machine is mainly used for cooling the impact sample in the low temperature impact test.
l It is with a new compressor, cascade refrigeration, easy, safe, fast and reliable, automatic thermostat.
l Cooling simply uses power without dry ice and liquid nitrogen with fast cooling speed, large volume and high precision temperature control.
l It’s an ideal equipment for low-temperature impact test.
The Technical Specifications:
l Temperature range: -60 °C ---+30 °C Temperature fluctuation: ≤ ± 0.5 °C
l Temperature control instruments: Digital Display Resolution: 0.1
l Temperature sensor: PT100 platinum resistance
l Temperature control element: SCR
l Heater: 1000W Stainless steel heating tube
l Vertical and horizontal agitation pump: 6LITYES/MIN
l The compressor: Run current 2.9A
l Refrigerant: R502F13
l Opening size: 120 × 120 × 80mm (depth × width × height)
l Dimensions: 105 × 530 × 86mm (D × W × H)
l Volume: 10LIT1/CS
l Digital display timer resolution 1 second
The operating conditions
l Power: 220V 50HZ 3KW
l Tank using the medium: ethanol or other frozen liquid
l Ambient temperature: 5 ---32 °C
l Ambient humidity: ≤ 85%
l Use of the environment should be well ventilated and no strong vibration, no dust, corrosive gases.
