QG-4 Metallurgical Cutting Machine
- 1 Set / Sets per Month
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Universe | Model Number: | QG-4 |
After-sales Service Provided: | Overseas third-party support available |
Product Description

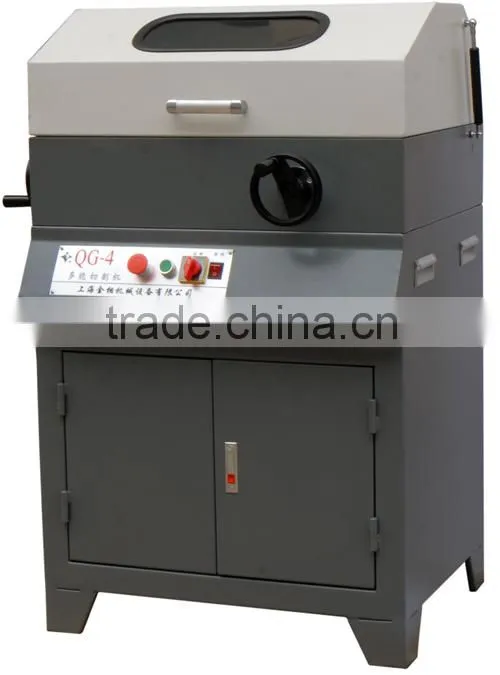

QG-4 Metallurgical Cutting Machine
Description:
l QG-4 multifunctional cutting machine is mainly used for cutting cylinder and samples of anomalistic shape, such as multi-angular shape, protruding board, etc.
l It adopts the all-sealing structure, which can guarantee the cutting sample under the conditions of absolute safety.
l In order to avoid the sample burning the material texture because of over-heating in cutting, besides the cutter matching strong cooling system, the sample can revolve in the cutting, which can avoid the sample's surface being burned in the
cutting, and can increase the cutting cross section, raising the availability of cutting emery wheel.
l The cutter has the advantages of easy to operate, use, maintain, etc, which is an excellent equipment of cutting anomalistic shapes.
Technical Specifications:
l Maximum Cutting Cross Section: 65mm
l Platen Speed: 2800 r/min
l Grinding Wheel Sheet Specification: 250×1.5×32mm
l Electromotor: YSR 7132 1.1kW 380V 50Hz
l Dimensions: 870×590×1110mm
l Net Weight: 180Kg
Packing List:
l Mainframe
l Cooling water tank
l Spanner :28/36
l Emery wheel slice:φ250×1.5×φ32
l Plastic pipe:φ32
l Metal hose
l Instruction Manual
