Home > Products > Metallographic Equipments > JMQ-60Z Precision Metallographic Cutting Machine

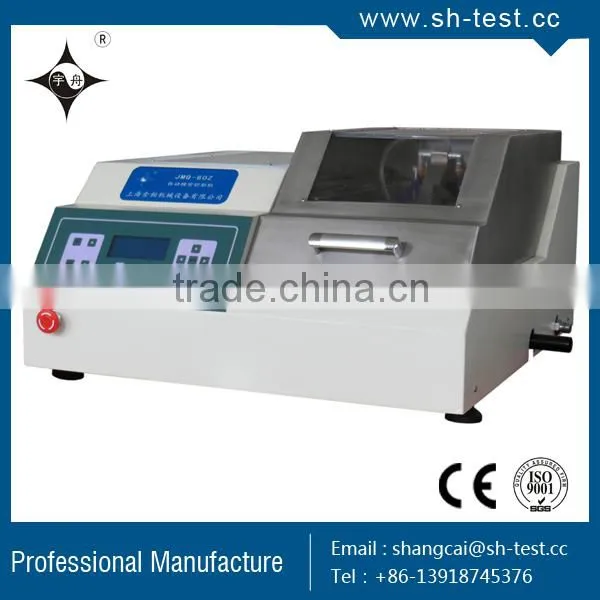

JMQ-60Z Precision Metallographic Cutting Machine
- 1 Set / Sets per Month
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Price of small size movable gold trommel screen
- Gold selection equipment Mobile gold cart Job site
- DOING photovoltaic solar panels recycling production line
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Universe | Model Number: | JMQ-60Z |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Description:
l JMQ-60Z automatic precision cutting machine is a single chip computer control cutting machine.
l It’s suitable for the precision cutting of metal, electronics, ceramics, crystal, hard alloy, rock, concrete, organic material, biological material (tooth, bone) and other materials without deformation.
l This device has continuously cutting; high accuracy of positioning; wide range of speed regulating; strong cutting ability; internal circulation cooling system;
l Can be preset feed speed; menu control; liquid crystal display; two position for clamping; with safety switch closed cutting room;
l JMQ-60Z is one of the ideal equipment to prepare high-quality specimens for the industrial and mining enterprises and institutes.
Main parameters
l Feed speed: 0-36mm/min (Adjustment of step size is 0.1mm)
l Cutting speed: 300-3000rpm
l Maximum cutting diameter: Ø 60mm
l Maximum stroke: X axis 90mm; Y axis 200mm
l Cutting disk size: 100mm; 125mm; 150mm; 200mm
l Cutting power: 1100W/Power supply: 220V 50HZ/External dimensions: 730mm×765mm×410mm
