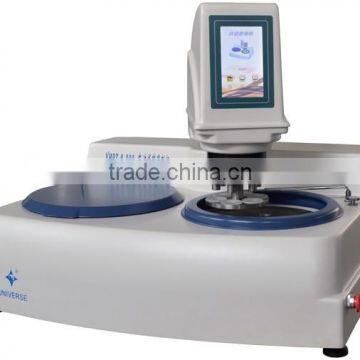

Help CenterYMPZ-2-300/250 Automatic Metallographic Sample Grinding and Polishing Machine
Related Products
-
YMPZ-1 Automatic Metallographic Grinding and Polishing MachineMachineUS$ 1,000 - 10,000MOQ: 1 Set -
YMPZ-1-300/250 Grinding and Polishing MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
YMP-2B Metallographic Sample Grinding and Polishing MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
YMP-2A Metallographic Sample Grinding and Polishing MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
YMP-2 Metallographic Sample Grinding and Polishing MachineUS$ 1,000 - 10,000MOQ: 1 Set
Description:
l In the process of preparation of metallographic sample, pre grinding, polishing and grinding are the indispensable procedures.
l This machine is produced with ABS sewage collection plate and cover and is the latest product with a new and beautiful appearance.
l This machine is controlled by single chip microcomputer, grinding disc 100RPM-1000RPM of stepless speed regulation with touch screen display and control.
l The motor is DC brushless motor and don’t need to replace the brush, used for a long time.
l The machine is non-toxic painted. Strong large support chassis design ensures the precision rotary balance. Powerful motor brings strong power and efficient grinding and polishing experience. Spindle leak- proof design ensures the bearing almost without damage and the super mute design brings a good experience.
l It supports for fast disk system, with the use of elasticity, and can be used with automatic grinding device.
l It can replace the manual grinding and polishing of the procedure, timing and set the speed of grinding head.
l It can increase the grinding quality and production efficiency and is the ideal metallographic sample preparation equipment.
l This machine can be adapted to various materials preparation of test samples. The polishing disc diameter is larger than the domestic similar products.
l The platen speed of polishing disc operates independently. It is the best equipment of metallographic sample preparation.
Technical Specifications:
l Diameter of the polishing and grinding disc: 300mm or 250mm
l Diameter of the abrasive paper: 300mm or 250mm
l Rotational speed: 100~1000r/min, stepless
Or four speed 250r/min, 500r/min, 750r/min, 1000r/min
l Motor: DC brushless motor, 220V, 1.1kw
l Rotational speed of grinding head: 30~120r/min, stepless
l Center cylinder pressure: 0-0.5Mpa (Suggest 0.3~0.4 Mpa)
l Planetary cylinder pressure: 0-0.5Mpa (Suggest 0.2~0.3 Mpa)
l Sample installation quantity: 6
l Motor of grinding head: DC brushless deceleration motor, 220V, 100W
l Dimensions: 725×900×760mm
l Weight: 115kg
