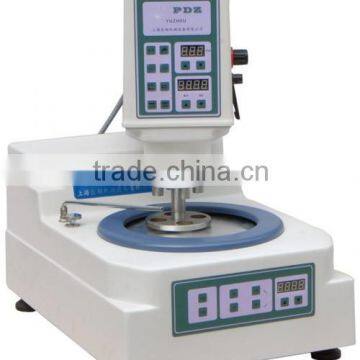

YMPZ-1 Automatic Metallographic Grinding and Polishing MachineMachine
- 1 Set / Sets per Month
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Small trommel screen for placer gold
- Price of small size movable gold trommel screen
- Gold selection equipment Mobile gold cart Job site
- DOING photovoltaic solar panels recycling production line
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Universe | Model Number: | YMPZ-1 |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Description:
l In the process of preparation of metallographic sample, pre grinding, polishing and grinding are the indispensable procedures.
l This machine YMPZ-1 is produced with plastic sewage collection plate and cover and is the latest product with a new and beautiful appearance.
l This machine is controlled by single chip microcomputer, grinding disc 100RPM-1000RPM of stepless speed regulation with digital tube display.
l The motor is DC brushless motor and don’t need to replace the brush, used for a long time. The machine is plastic painted and non-toxic. Strong large support chassis design ensures the precision rotary balance.
l Powerful motor brings strong power and efficient grinding and polishing experience. Spindle leak-proof design ensures the bearing almost without damage and the super mute design brings a good experience.
l It supports for fast disk system, with the use of elasticity, and can be used with automatic grinding device.
l It can replace the manual grinding and polishing of the procedure, timing and set the speed of grinding head. It can increase the grinding quality and production efficiency and is the ideal metallographic sample preparation equipment.
l This machine can be adapted to various materials preparation of test samples. The polishing disc diameter is larger than the domestic similar products.
l The platen speed of polishing disc operates independently. It is the best equipment of metallographic sample preparation.
Technical Specifications:
l Diameter of the Polishing and Grinding Disc: 230mm
l Diameter of the Abrasive Paper: 230mm
l Rotating Speed: Stepless 100~1000r/min
Or Four Speeds 250r/min, 500r/min, 750r/min, 1000r/min
l Motor: DC Brushless Motor, 220V 400W
l Rotating Speed of Grinding Head: Stepless 20~120r/min
l Cylinder Pressure: Adjustable (Suggest 0.2~0.3mpa)Motor of Grinding Head: DC Brushless Deceleration Motor, 220V, 400W
l Dimensions: 420×623×645mm (Include PDZ Automatic Grind Head)
l Net Weight: 50Kg
()
