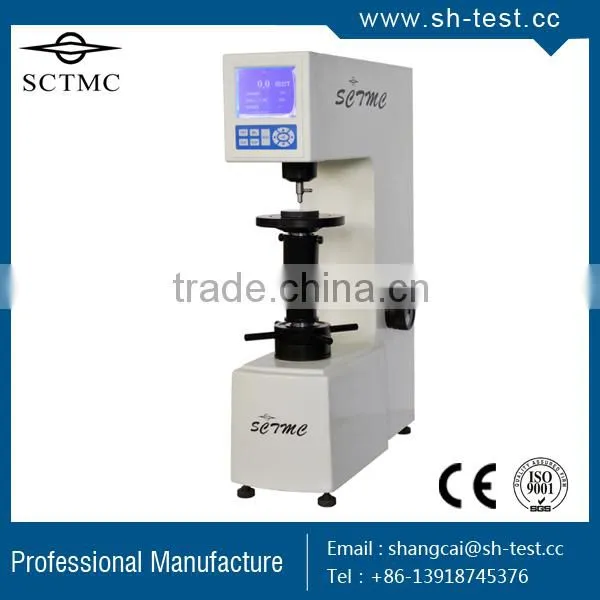

HRMS-45 Digital Superficial Rockwell Hardness Tester

Name: HRMS-45 Digital Superficial Rockwell Hardness Tester
Brand: SCTMC
SKU: 106647075
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

SCTMC

Model Number:

HRMS-45

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name SCTMC

Model Number HRMS-45

HRMS-45 Description:

HRMS-45 is a half automatic and intelligent hardness testing machine, except to lift up the anvil to touch the specimen and select the test force: 15Kgf(147.1N), 30Kgf(294.2N) and 45Kgf(441.3N) in hand-knob manually, the other operations are entirely automatic.
The testing force, the process of loading, dwell and unloading, the hardness testing value, and the corresponding converted scale are displayed on LCD screen automatic.
HRMS-45 system will remind the operator to select the corresponding testing force and indenter after scales choosing, and the automatic hardness testing and digital 0.1HR resolution display avoids the man-made error and enhance the measuring accuracy.
HRMS-45 force knob adopts the metall material to replace the plastic material, it improves the instrument using-life greatly.
HRMS-45 can make the hardness conversion among 14 hardness scales: HRA, HRB,HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, it doesn’t need the operator to trace and check the fussy hardness comparison table again.
HRMS-45 saves, displays and analyzes the value of maximum, minimum, average and tolerance automatically, the mini-printer prints the main measuring data automatically, and it supports PC communication in RS 232 interface and cable.

HRMS-45 Technical Specifications:

Product Name	Digital Superficial Rockwell Hardness Tester
Model	HRMS-45
Rockwell Scales	HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Preliminary Test Force	3Kgf(29.42N)
Test Force	15Kgf(147.1N),30Kgf(294.2N),45Kgf(441.3N)
Dwell Time	Adjustable 1-60s
Hardness Indication	digital LCD Display
Resolution	0.1HR
Loading Control	Automatic
Data Output	RS 232/Printer
Auto Hardness Conversion	HRC,HRB,HRA,HK,HV,HBW
Max. Height Of Specimen	175mm
Instrument Throat	165mm
Dimension(LxWxH)	520 x215 x700mm
Packing Dimension	630 x440 x960mm
Gross/Net Weight	120Kg/90Kg
Execution Standard	GB/T230.2, JJG112, EN-ISO 6508 , ASTME-18

HRMS-45 Standard Packing List:

HRMS-45 Optional Accessories:
