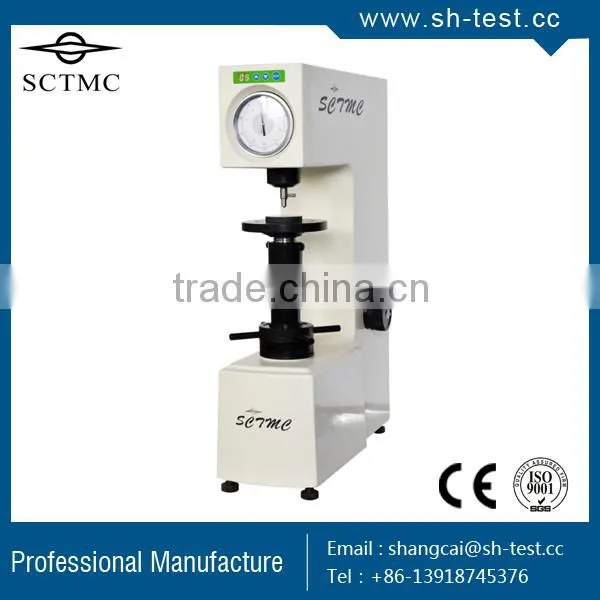

HR-150DT Electric Rockwell Hardness Tester

Name: HR-150DT Electric Rockwell Hardness Tester
Brand: SCTMC
SKU: 106647047
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

SCTMC

Model Number:

HR-150DT

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name SCTMC

Model Number HR-150DT

u HR-150DT Instrument Description:

Hardness is one of the important criteria of the mechanical functions of materials, and the hardness test is the important way to judge the quality of the metallic materials or parts.
As the metallic hardness has mutual correspondent relations with other mechanical functions, the majority of the metallic materials can calculate the other mechanical functions such as the strength, the fatigue, the evolutionary change and the degree of being worn out,which can be approximately inferred from the hardness shown by the test.
HR-150DT analogue gauge resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution
HR-150DT dwell time from 1to 60s can be setup by the “time key” on the panel , it is much convenient than the setup on the manual hardness tester.
HR-150DT loading, dwell and unloading is buffering by oil pump, it eliminate the operator’ s tiredness.
HR-150DT force knob adopts the metal material to replace the plastic, it improves the instrument using-life a lot.
HR-150DT loading, dwell and unloading is buffering by electronic motor automatically ,doesn’t need the operator to handle it ,it eliminates the human operation error maximum.

HR-150DT indenter protector is available to improve the using lifetime of indenter.

u HR-150DT Technical Specifications:

Product Name	Electronic Rockwell Hardness Tester
Model	HR-150DT
Rockwell Scales	HRA,HRB,HRC
Preliminary Test Force	10Kgf(98.07N)
Test Force	60Kgf(558.4N),100Kgf(980.7N),150Kgf(1471N)
Dwell Time	Adjustable 1-60s
Hardness Indication	Analogue Display
Resolution	0.5HR
Loading Control	Electronic
Max. Height Of Specimen	175mm
Instrument Throat	165mm
Dimension(LxWxH)	520 x215 x700mm
Packing Dimension	630440960mm
Gross/Net Weight	120Kg/90Kg
Execution Standard	GB/T230.2, JJG112, EN-ISO 6508 , ASTME-18

Scale	Type of Indenter	Initial Test Force	Total Test Force (N)	Application Field
HRA	Diamond indenter	98.07 N (10kg)	588.4(60kg)	Hard Alloys, Tempered steel with carbonized surface, Hardened Steel Plates
HRD			980.7(100kg)	Thin steel plates, steel with tempered surface
HRC			1471(150kg)	Quenched steel, tempered steel, hard cast iron
HRF	Ball indenter φ1.5875m(1/16 inches)		588.4(60kg)	Cast iron, aluminum-magnesium alloy, bearing alloy, annealed copper alloy, thin and soft steel plate
HRB			980.7(100kg)	Soft steel, aluminum alloy, copper alloy, forgeable cast iron, annealed steel
HRG			1471(150kg)	Phosphorus bronze, beryllium bronze, forgeable cast iron
HRH	Ball indenter φ3.175mm (1/8 inches)		588.4(60kg)	Aluminum, Zinc, Lead
HRE			980.7(100kg)	Bearing alloy, tin, hard plastic materials
HRK			1471(150kg)	Bearing alloy, tin, hard plastic materials

u HR-150DT Standard Packing List:

u HR-150DT Optional Accessories:
