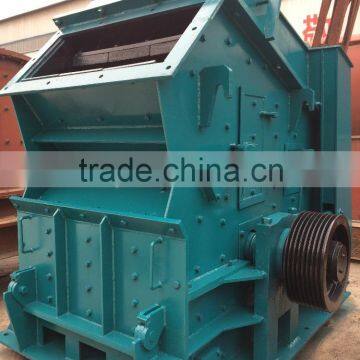

Zhengzhou professional high crushing ratio impact crusher & 30kw
- 500 Set / Sets per Month
- Qingdao port (advice) Tianjin port Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Other, Impact Crusher, PF stone impact crusher | Application: | mining, building material,chemical industry and so on, Ore,building meterial,chemical industry |
Motor Type: | AC Motor | Power(W): | 37000-55000 | Capacity(t/h): | 30-50 |
Place of Origin: | Henan, China | Brand Name: | Shuguang | Model Number: | Pf-1008 |
Dimension(L*W*H): | 1000*800*180 mm | Weight: | 8 t | Certification: | CE& ISO&BV |
Warranty: | More than 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

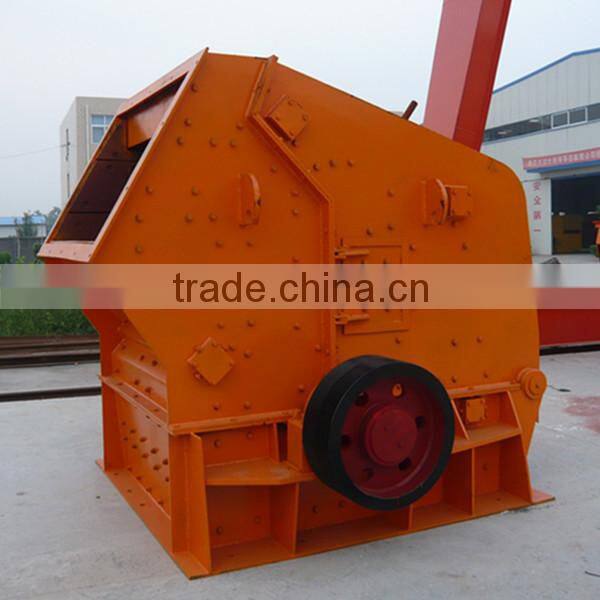

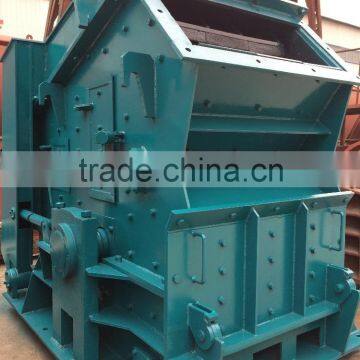

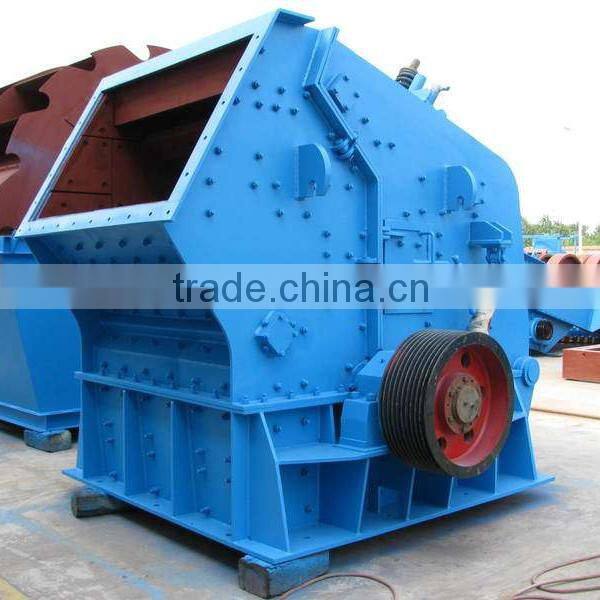

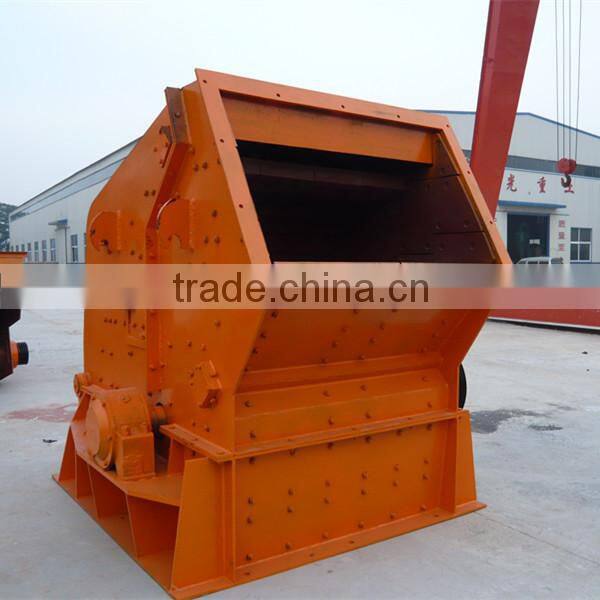

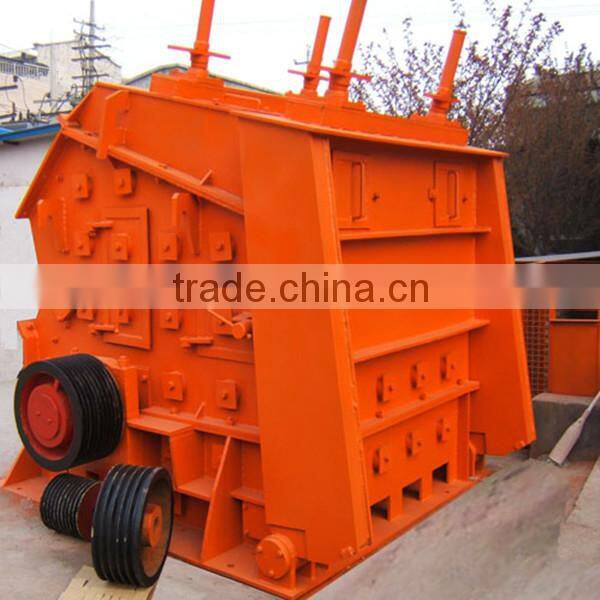

Zhengzhou professional high crushing ratio impact crusher & 30kw
Application of pf stone impact crusher :
Impact Crusher is widely applied in mining, transportation, energy, construction and chemical industry. The ending material can be used directly for its wonderful cubic shape and excellent performance.
Advantage of pf stone impact crusher :
1.Simple structure, small volume, light weight, large capacity, low production cost. adapt to crusher the high hardness material;
2.Counterattack plate and plate hammer gap can convenient adjustment, so can effective control of the material particle size and the particle shape is well;
3.High Crushing function and productivity, all parts low abrasion, high comprehensive benefit
4.Keyless connection, maintenance is convenient, economic and reliable.

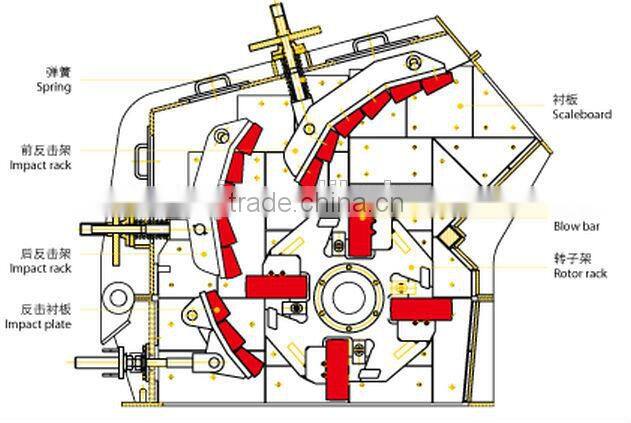

Working Principle of pf stone impact crusher :
When impact crusher works, the motor drives the rotor rotate with high speed, on the rotor where installed the hammers with hightech raw material. When the crushed materials get into the impact crusher inner space where the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact crusher chamber repeatedly. The process won't stop till the materials in the
impact crusher are crushed to the required size and then discharged from outlet.
Parameter of pf stone impact crusher :
Model | Specification(mm) | Feed size(mm) | Max. Feeding size(mm) | Capacity(t/h) | Motor power(kw) |
PF-0607 | 644*740 | 320*770 | 100 | 10-20 | 30 |
PF-0807 | 850*700 | 400*730 | 300 | 15-30 | 30-45 |
PF-1008 | 1000*800 | 400*830 | 300 | 30-50 | 37-55 |
PF-1010 | 1000*1050 | 400*1080 | 350 | 50-80 | 55-75 |
PF-1210 | 1250*1050 | 400*1080 | 350 | 70-120 | 110-132 |
PF-1212 | 1250*1250 | 400*1300 | 350 | 100-150 | 132-160 |
PF-1214 | 1250*1400 | 400*1430 | 400 | 130-180 | 160-200 |
PF-1315 | 1320*1500 | 860*1520 | 500 | 160-250 | 180-260 |
PF-1320 | 1320*2000 | 860*2030 | 500 | 300-350 | 300-375 |
In order to help you get a suitable machine and provide you a preferential quotation, Pls kindly provide the following information:
1. What’s the materials to process?
2. What's the feature of the materials? Like density, moisture degree,input particle size and out put particle size.
3. What’s your capacity per hour?

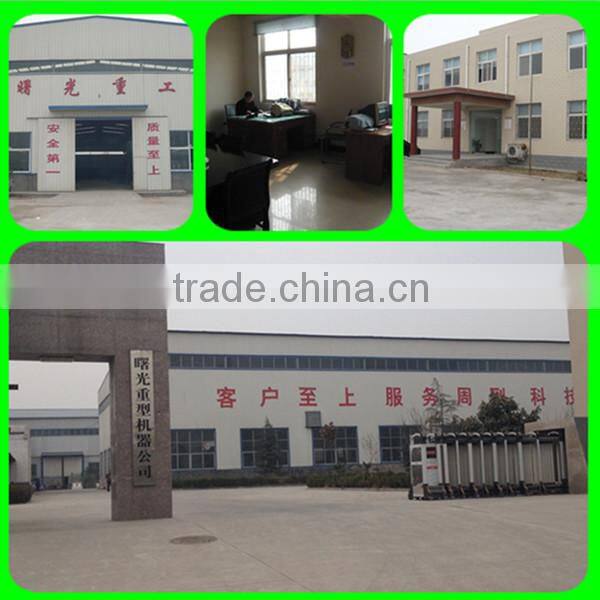

Zhengzhou Shuguang Heavy Machinery Co., Ltd. is a manufacturer of Raymond mill, mixer, crusher and dryer with wellequipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry and mining industry and other industries. Our products are widely recognized
and trusted by users and can meet continuously changing economic and social needs.
Packing details:standard export containers,bare main machine,motors and small parts are packed in wooden case.
Delivery detail:within 10-15 days after receiving your 30% order payment.
