China coal gasifier from a professional manufacture
Brief introduction of China coal gasifier
China coal gasifier uses air and vapor as the gasifying agents to produce mixed gas. It is suitable for gasifying coking coal, hard coke, etc. and is widely used in machinery, metallurgy, chemistry, glass, building materials, and light industries.
Features of China coal gasifier
1.Meet the environmental protection indexes.
2.Low investment
3.Easy operation.
4.Save energy.

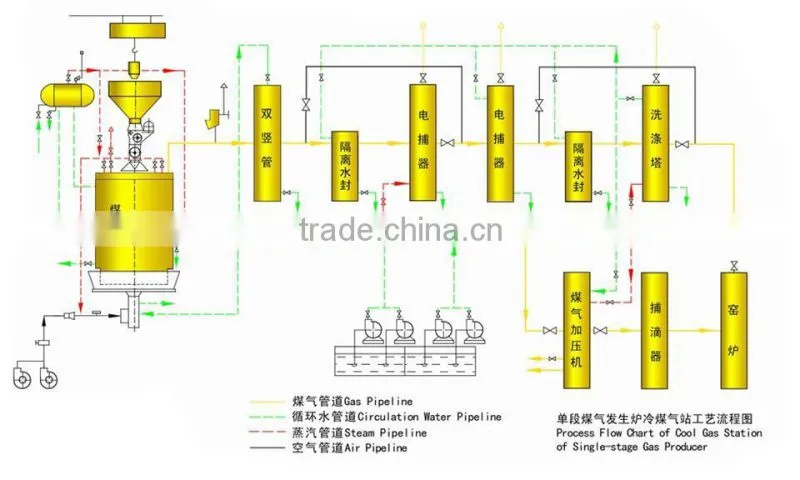

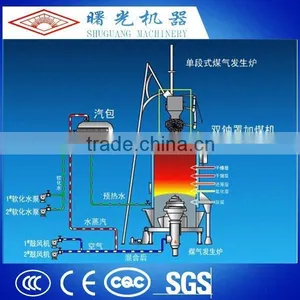

Working principle of China coal gasifier
Coal gasifier is a continuouscoal gas generating system.The air and steam produced by the water jacket is blown through the gasifier bottom to the furnace.The 0.294 Mpa steam and saturated air are gasifying agent.Lump coal after crushing,screening to size 25-50 mm or 50to100 mm,is added to the gasifier by coaling system.The coal gas is generated and then goes into the gravity dust collector and cyclone dust collector and then transport to users. gasifier is a continuouscoal gas generating system.The air and steam produced by the water jacket is blown through the gasifier
Main technical parameters of China coal gasifier
Model |
CG1Q1.0-1 |
CG1Q1.5-1 |
CG1Q2.0-1 |
CG1Q2.4-1 |
CG1Q2.6-1 |
CG1Q3.0-1 |
CG1Q3.2-1 |
I.D. Of chamber (mm) |
1000 |
1500 |
2000 |
2400 |
2600 |
3000 |
3200 |
Chamber Cross-section Area (m3) |
0.785 |
1.77 |
3.14 |
4.52 |
5.31 |
7.07 |
8.04 |
Applicable coal |
Non-caking or weak-caking bituminous coal.Coal property should coinlident with the requirement of GB9143. |
||||||
Ash layer (mm) |
100-300 |
100-300 |
100-300 |
100-300 |
100-300 |
100-300 |
100-300 |
Coal size (mm) |
13-25,25-50,50-100 |
||||||
Coal consumption (kg/h) |
150-240 |
350-550 |
600-900 |
900-1400 |
1000-1500 |
1500-2200 |
1700-2600 |
Gas output(Nm3/h) |
450-700 |
980-1600 |
1750-2800 |
2500-4000 |
3000-4800 |
4000-6500 |
4600-7400 |
Net heathing value (KJ/m3) |
5020-6060 |
5020-6060 |
5020-6060 |
5020-6060 |
5020-6060 |
5020-6060 |
5020-6060 |
Gas pressure(KPa) |
<0.98 |
<0.98 |
<0.98 |
<1.5 |
<1.5 |
<1.5 |
<1.5 |
Gas temperature(°C) |
400-550 |
400-550 |
400-550 |
400-550 |
400-550 |
400-550 |
400-550 |
Max blast pressure (KPa) |
2.0 |
2.45 |
3.5 |
3.5 |
4.0 |
6.0 |
6.0 |
Saturated temperature(°C) |
50-65 |
50-65 |
50-65 |
50-65 |
50-65 |
50-65 |
50-65 |
Feeding coal mode |
Manual,Automatic |
||||||
Coal feeding system |
Bell charging,mechanical charging,bell charging,hydraulic charging |
||||||
Discharging ash mode |
Automatic discharging |
||||||

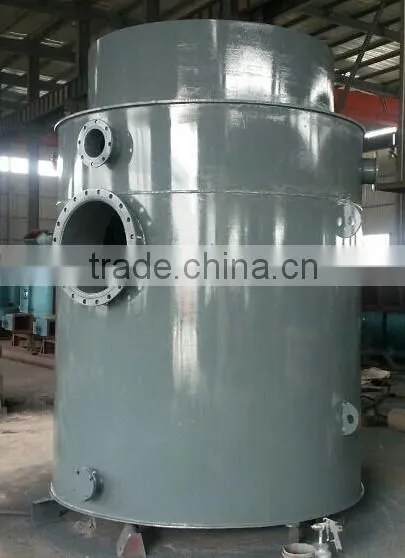

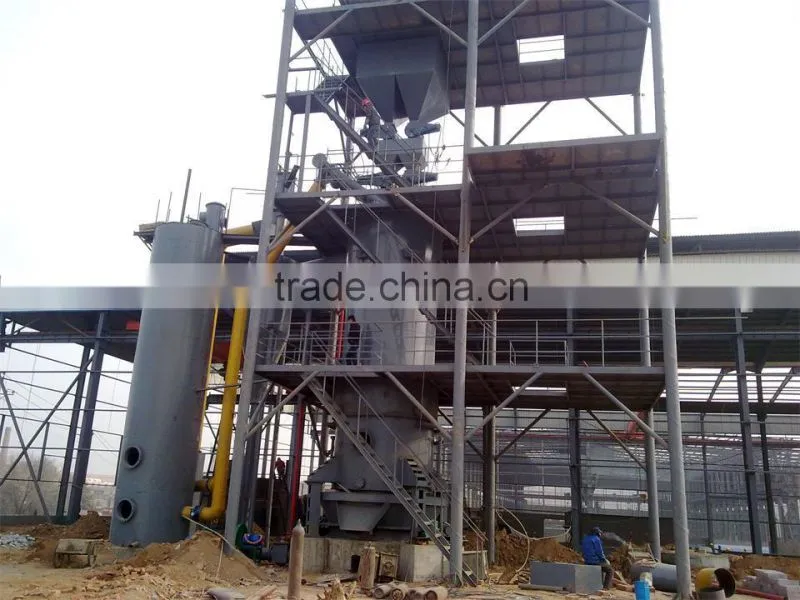

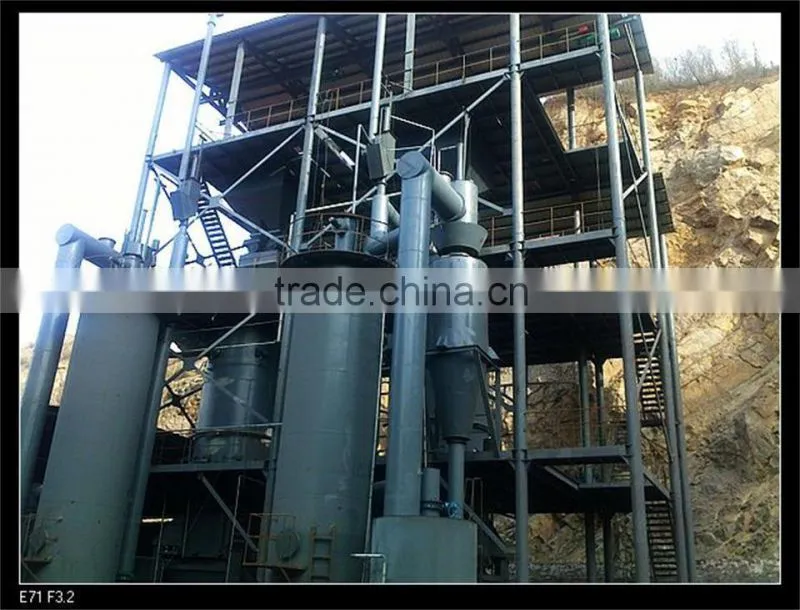

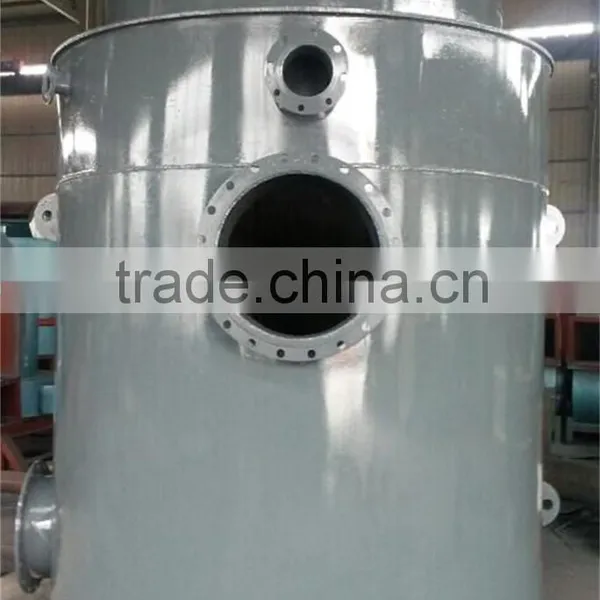

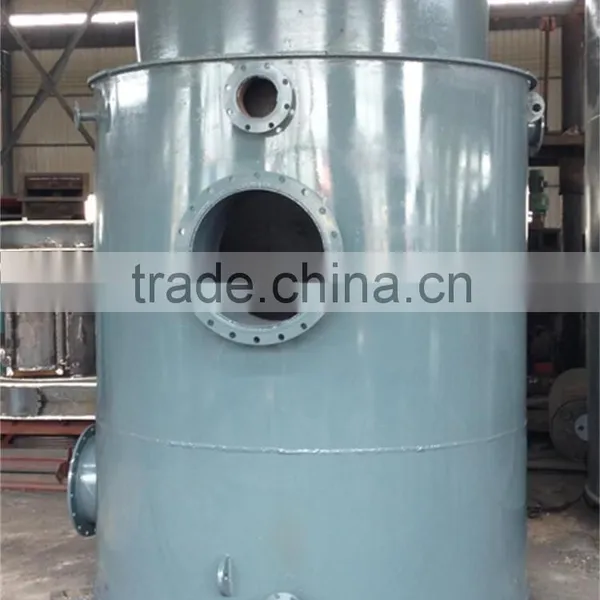

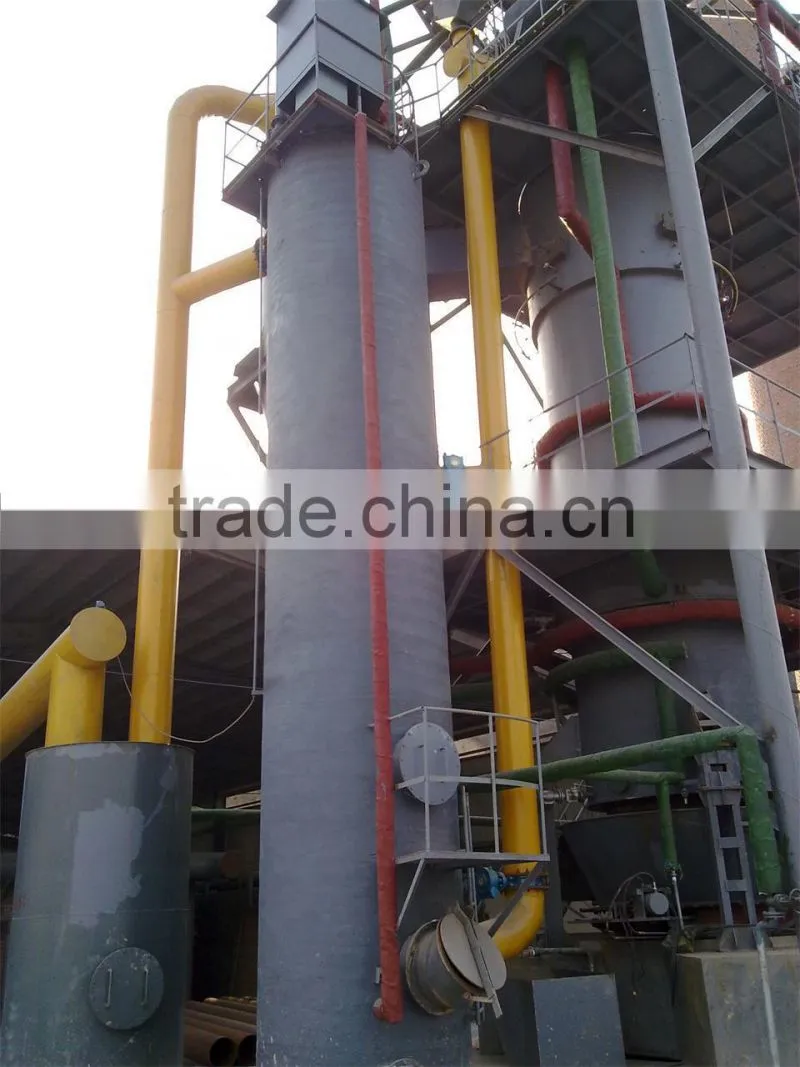

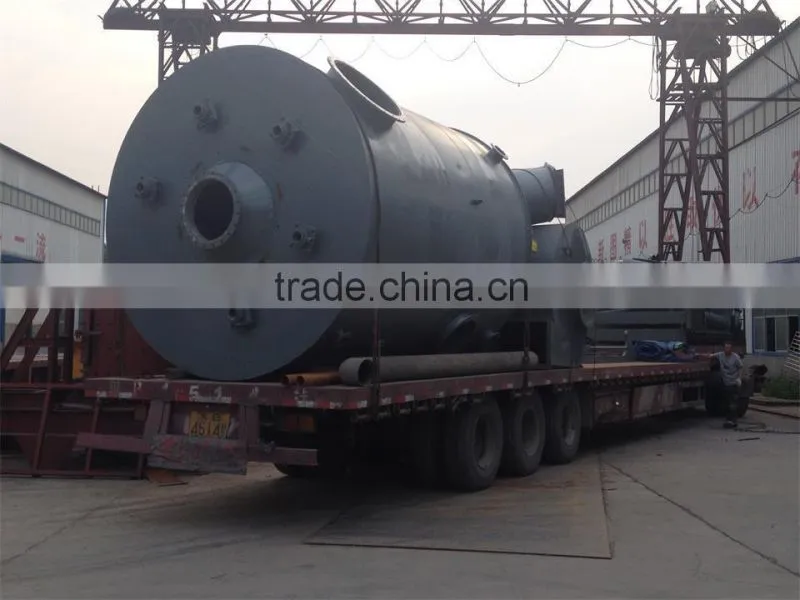

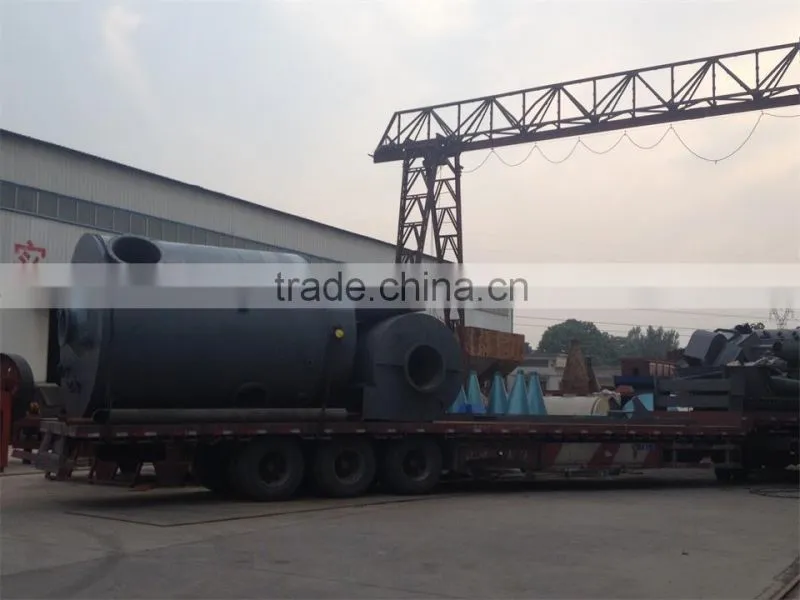

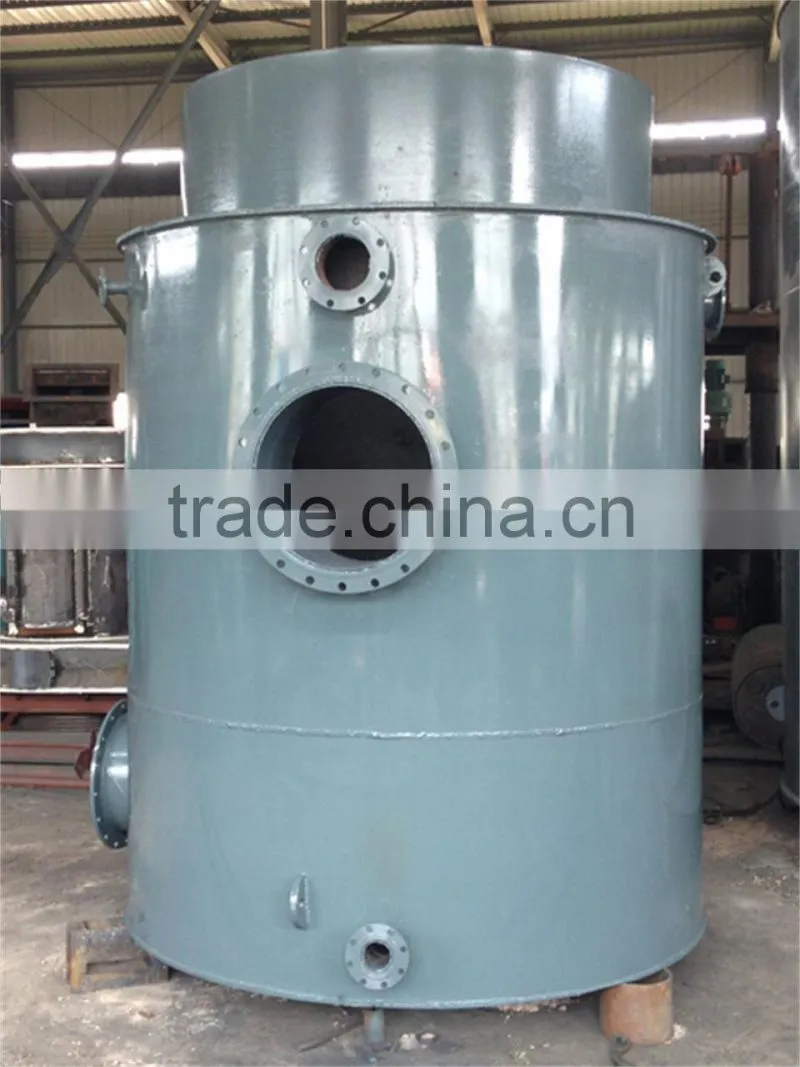

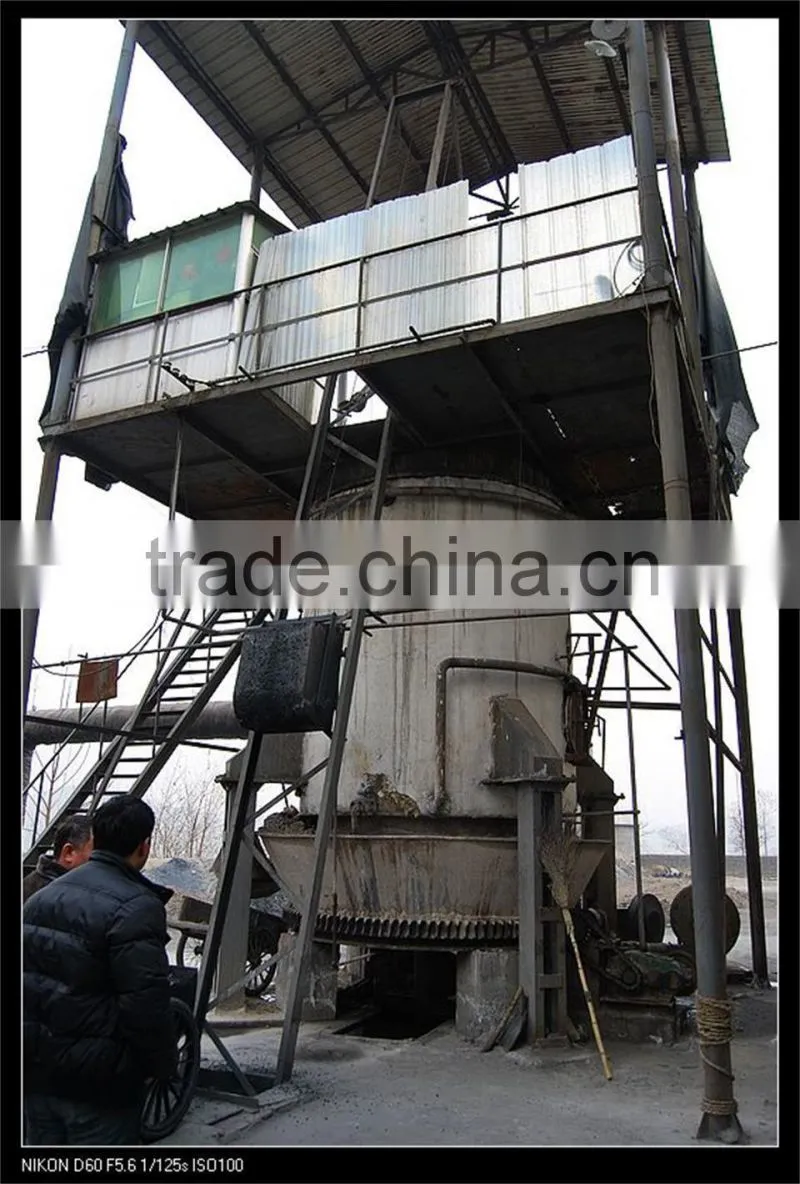

Coal gasifier pictures

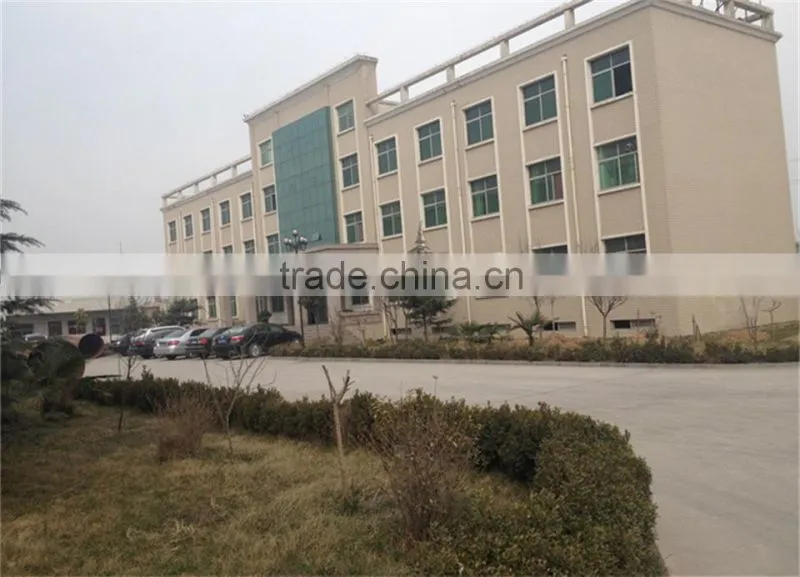

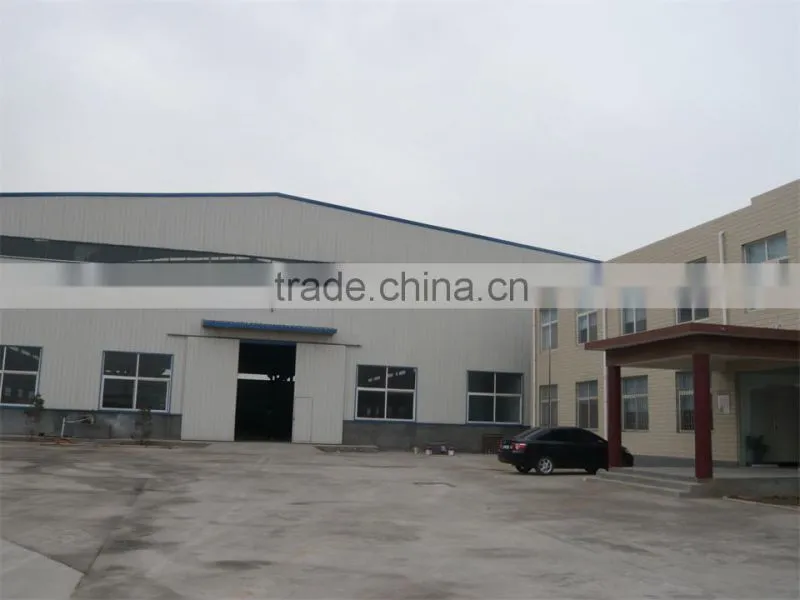

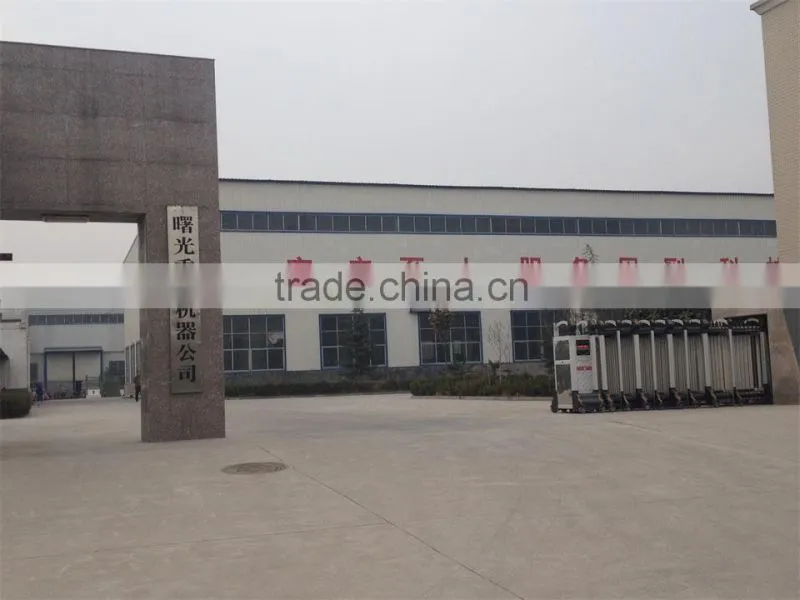

Factory
Zhengzhou Shuguang Heavy Machinery is founded in 1993, which specializes in production Raymond mill for 21 years.Besides that, we can also produce other grinding machine,crushers,rotary dryer,coal gasifier and so on. Warmly welcome to our factory.
If you're interested in our products, please contact me freely by the following ways:
Cell phone:0086-18638222775
Skype:mary.shan.528
TradeManager:cn1510829541
