Specifications
Flexual and compression testing machine1. Max testing power: 300KN
2. Used for the brick, stone, cement, concrete
Flexual and compression testing machine
I Introduction
the testing machine is mainly used for brick, stone, cement, concrete and other building materials compression test can also be used for other mechanical properties of materials.
II program description
1 Host
Machine as shown in Figure:

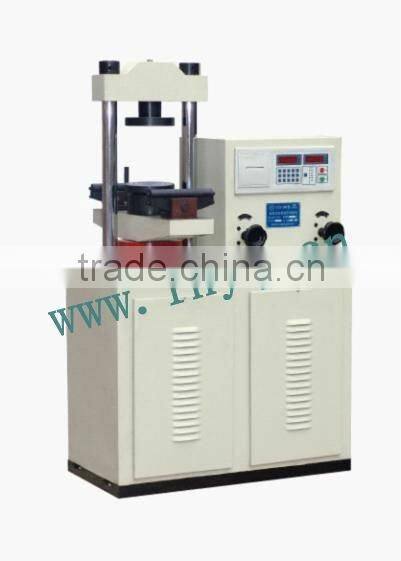

Figure I Appearance
2 hydraulic system
The oil tank is sucked through the filter pump oil network, after the pipeline to send oil pump valve, when the hand wheel to send off the oil, the role of the oil pressure push the piston, the oil flow back into the tank from the return pipe, When the hand wheel is turned to send the oil, the oil tanks through the tubing into the work, and through the pressure tubing flow back into the tank through the oil return valve.
3 Control System
This machine adopts hydraulic loading, electronic measuring, with a load of figures, loading rate shows the maximum load to maintain, as well as overload protection and power data retention and other functions.
Figure 2 Instrumentation

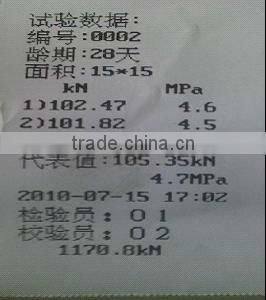

Figure 3 Test Report
4 safety devices
When the test force exceeds the maximum test force of 3%, the overload protection, oil pump motor stops.
5 attached
Accompanied by a full set including: a pressure plate
6 Other
Instruction manual, certificate, packing list and other technical documents, see random.
III Main Performance Indicators
1 The biggest test of 300kN
2 Test force measurement range 30-300KN
3 Test Force showed the relative error ≤ ± 1%
4 Test Force Resolution 0.01kN
5 Rated pressure hydraulic pump 25MPa
6 Bearing plate size 3.6 φ 155mm
7 Maximum distance between the upper and lower plate 230mm
8 Bending roll diameter φ 30mm
9 Maximum distance between the upper and lower bending rollers 165mm
10 between the two rollers on the bending center distance 150mm
11 between the two rollers under the bending center distance 450mm
12 Piston diameter of φ130mm
13 piston stroke 80mm
14 Motor Power 0.75 kW three-phase
15 Dimensions 850 × 620 × 1340mm
16 weight 450Kg
