Specifications
Automatic pressure testing machine1. Max testing power: 2000 KN
2. Used for the brick, stone, cement, concrete.
2000KN Automatic Compression Testing Machine / Compressive Strength Testing Machine / Automatic Pressure Testing Machine
Application:

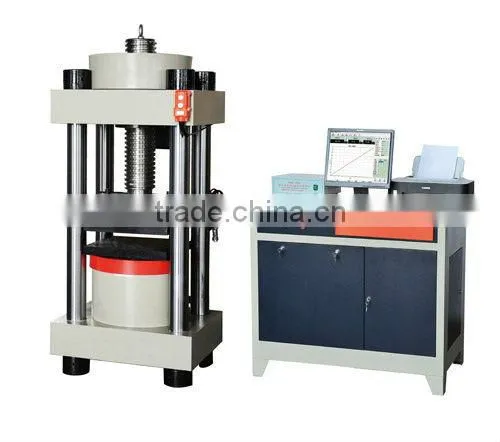

YAW-2000 automatic compression testing machine is mainly used to test compression strength of building material just like concrete, cement and brick. It is a high-tech general-type automatic testing machine that integrates mechanics, electronics and hydraulic.
Features:
1. The machine uses precision sensors and computer control, can storage, access and print the test report automatically.
2. The machine uses rotary screw to adjust the compression space, it is greatly accelerate the progress of the trial.
3. The machine can design the report format according to unit requirements.
Technical specifications:
1. Max. test force: 2000kN
2. Relative error of indicated value: ≤±1%
3. Size of upper and lower plates: 370×370mm
4. Test force resolution: 0.01kN
5. Loading rate: 0.3KN/S~10KN/S
6. Max. distance between upper and lower plates: 330mm
7. Max. piston stroke: 50mm
8. Piston diameter: Φ250mm
9. Nominal voltage of hydraulic oil pump: 40MPa
10. Motor power: 0.75KW
11. Dimension: 800×500×1200 mm
12. Net weight: About 1000Kg
