Specifications
Compression machine 2000KN1. Max testing power: 2000 KN
2. Used for the brick, stone, cement, concrete.

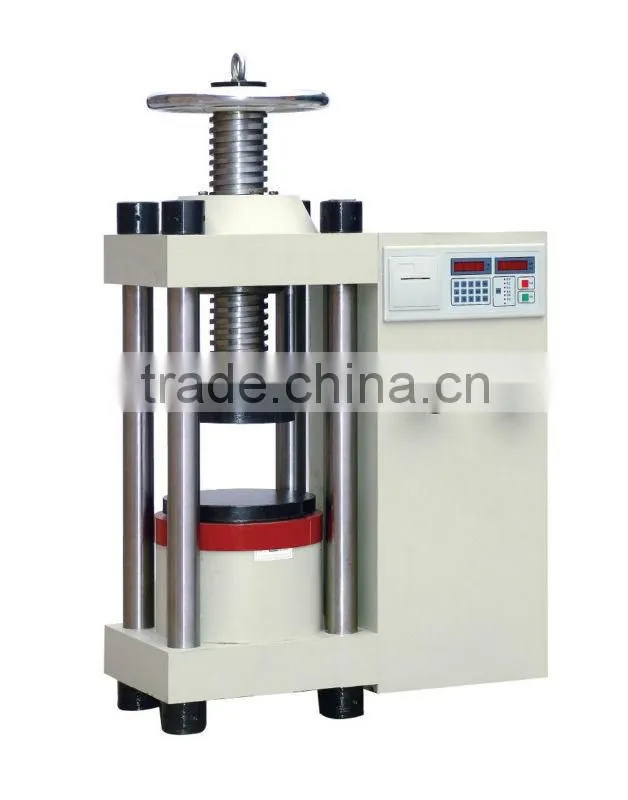

2000KN Digital Display Compression Testing Machine / Compressive Strength Testing Machine
Application:
Digital Display Compression Testing Machine(YES-2000) is mainly used for compression test of nonmetal materials such as bricks, stones, cements and other building materials in accordance with international standards. The machine is electro-hydraulically operated. the control panel comprises of hydraulic power pack, digital readout system , operating switches, load control values, output print-out of test data.
Feature:
1. efficient hydraulic power packs.
2. economic machine ideal for site use.
3. digital readout is microprocessor controlled instrument which is fitted as standard to all digital machines in the range.
4. calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.
Technical parameters:
1. Max. force: 2000KN
2. Range of measuring: 4%~100F.S
3. Accuracy of test force: ±1% indicated value
4. Upper and lower compression platen dimension: φ225mm, φ300mm
5. Distance between upper and lower compression: 320mm
6. Piston stroke: 30mm
7. Diameter of piston: φ250mm
8. Rated pressure of hydraulic: 40MPa
9. Power: 0.75kw 3phase
10. Dimension: 800×500×1300mm
11. Weight: About 750 kg
Testing machine, compression testing machine, comcete compression testing machine, strength testing machine, Pressure Testing Equipment, Compressive Strength Testing machine, cement mortar compression testing machine, cocnrete comressive strength testing machine
